Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3, i5 and i7 CPU.

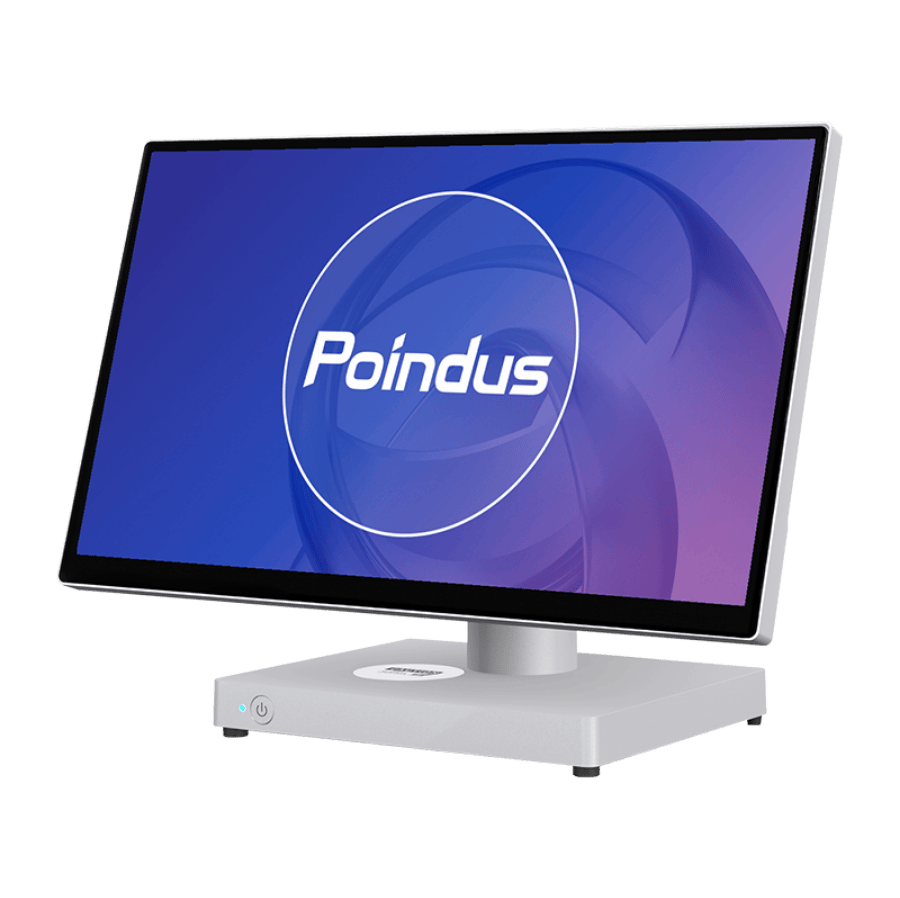

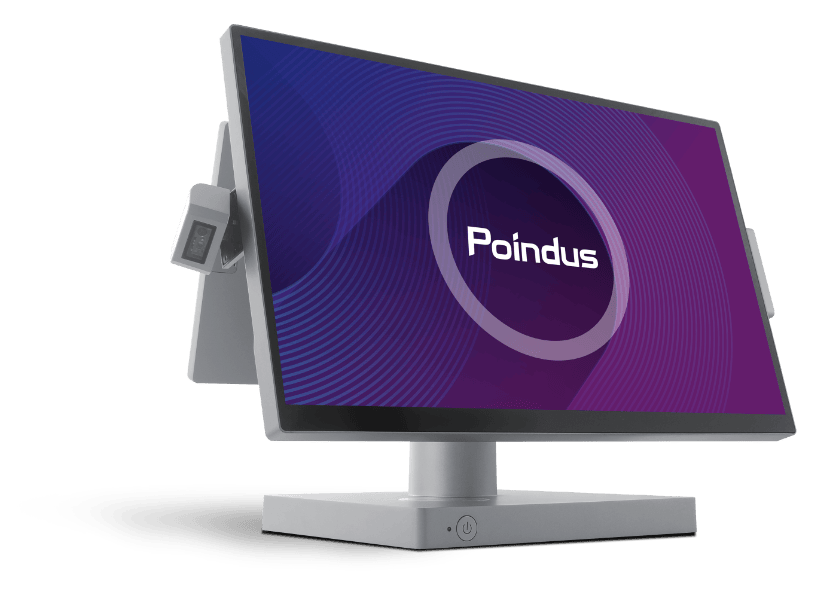

VariPOS S215
Minialist Design.
Maximum Power.
Features
- Total System Stability with Advanced Cooling Fanless Design for maximum performance
- Support Intel® Celeron, Alder Lake P, U-series i3, i5 and i7 CPU.
- Slim modern design with 21.5” (16:9) slim edge Pcap touch design.
- Operator screen swivelable design and supports a range of rear displays.
- No ventilation holes fan-less design – no moving parts and requires no ventilation maintenance.
- Small in size with rich IO ports and functions expansion support (project based) – RAID 0/1, Powered USB.
- Comprehensive support of add-on POS peripherals.
Product Highlights
Stylish
Aluminum Chassis
Minimalist modern
design
Full Range of Customer Displays
Strong Performance
15.6"
Stunning Display
Narrow Bezel Design
Advanced Cooling
Design
Hidden Cable
Management

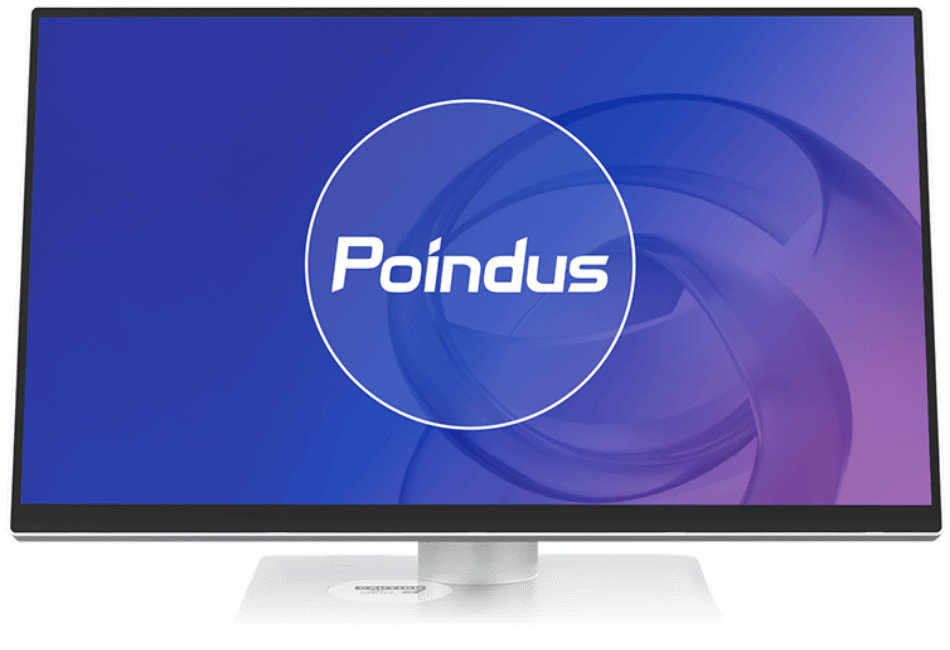

Slim. Sleek. Stunning.
21.5"
16:9
16:9
16:9 Full HD display for stunning clarity.
250
nits
nits
brightness for optimal visibility.
10-point
PCAP
PCAP
Responsive multi-touch screen.
Narrow
Bezel
Bezel
ultra-slim bezel design.
Slim. Sleek. Stunning.
4.8mm ultra-slim bezel design

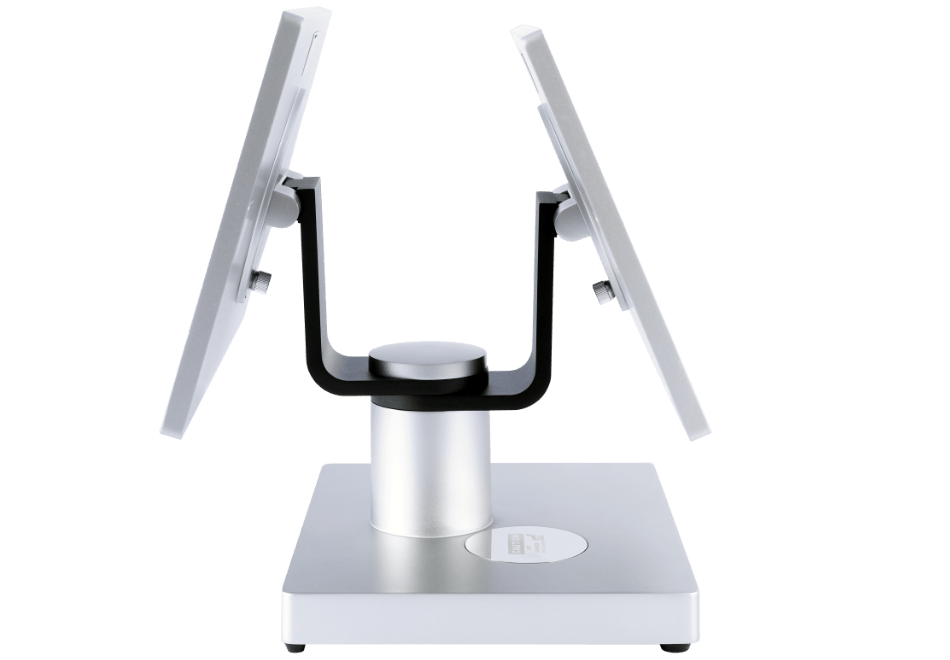

Slim modern design
Minimalist Appearance
Slim modern design
Minimalist Appearance

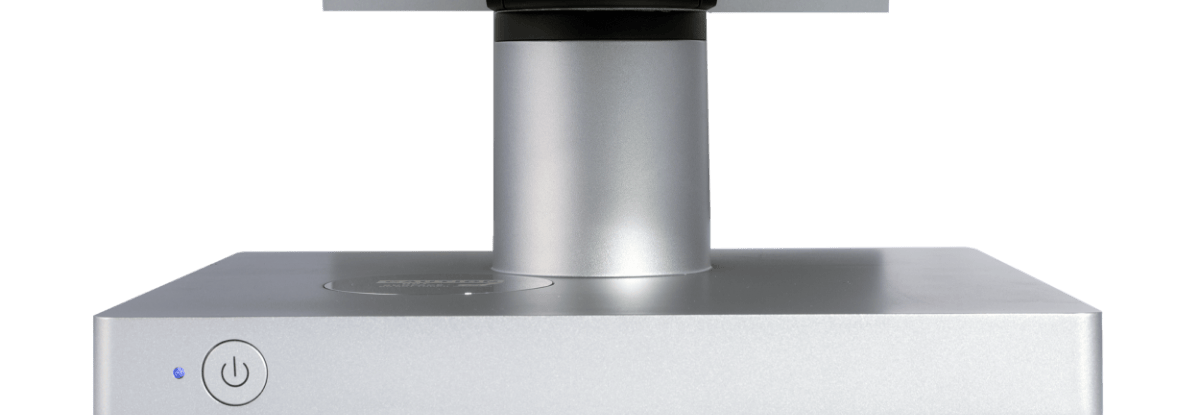

Stylish Aluminum Chassis
sleek aesthetics with durable, rugged protection
Powerful Performance
Support Intel® Celeron, Alder Lake P, U-series i3, i5 and i7 CPU.

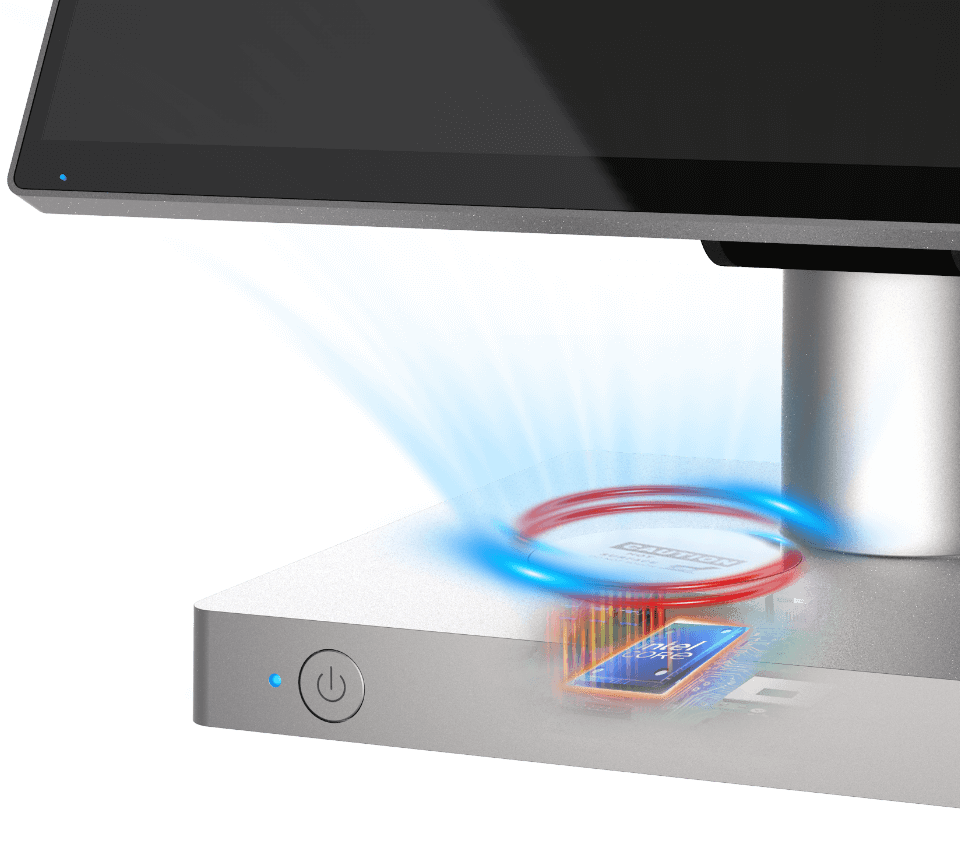

Advanced Cooling Design
for Enhanced Performance
- Innovative copper heat sink (401 W/m·K) for rapid cooling.
- Designed to support 21W higher CPU TDP for enhanced stability and operational potential.
- Efficient cooling prolongs product lifespa.

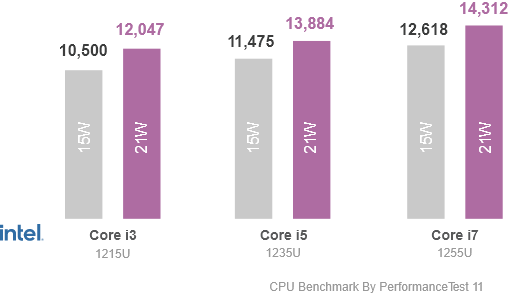

Maximized Benchmark
Performance
- Fine-tuned TDP parameters for optimized efficiency.
- At 21W, i3 performance rivals i5 at 15W.
- Customized power level & CPU overclock by request.
Easy Integration
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Small in size with rich IO port
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.

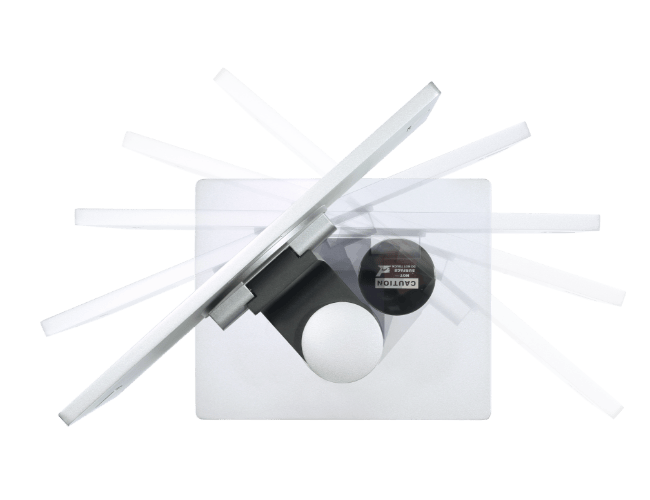

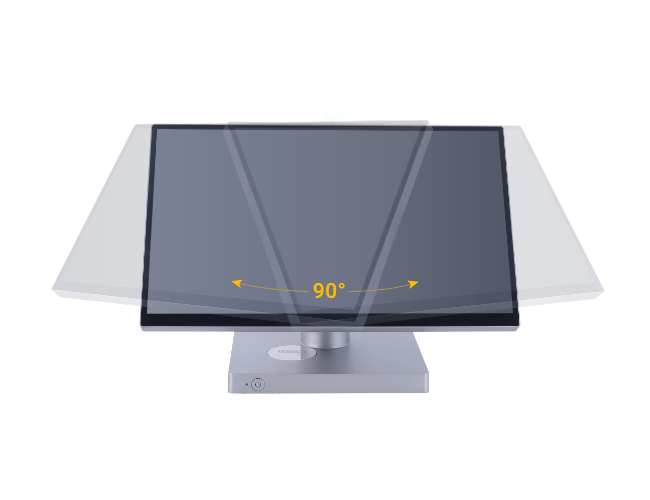

Operator screen swivelable design
Swivelable main display
for greater environment compatibility
Main Display Adjustment
for Improved Usability

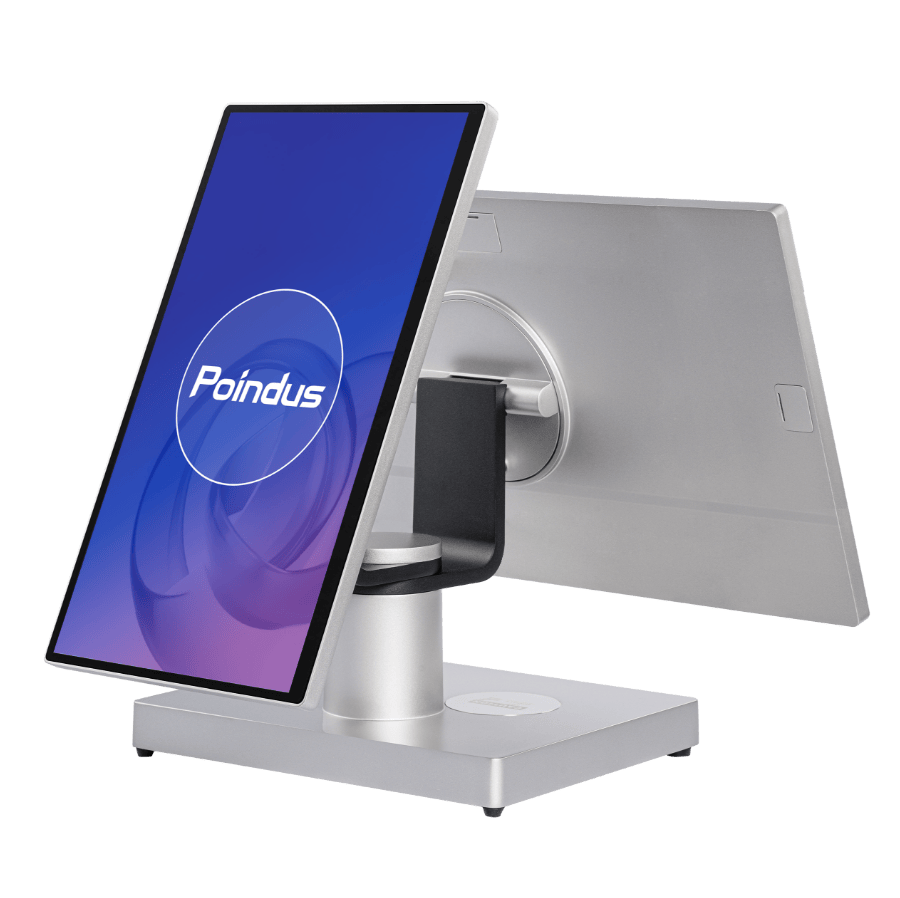

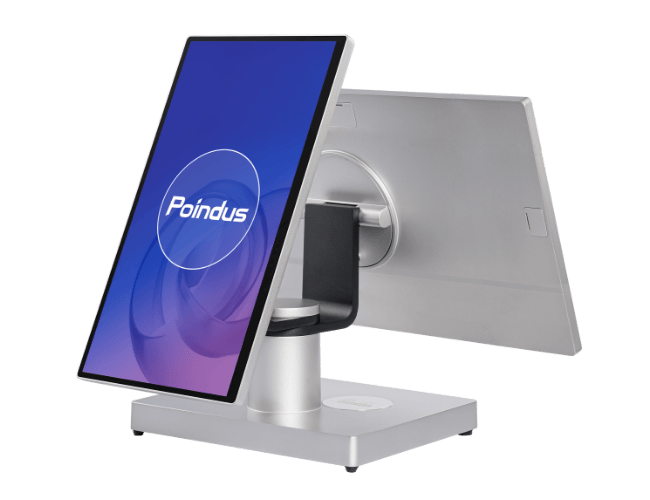

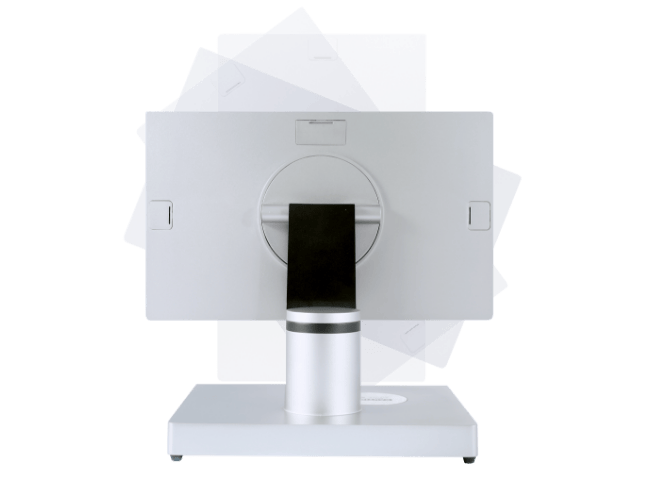

Rotatable Display
effortless switching between landscape and portrait orientations.
*Shown with the secondary display of VaroPOS S156

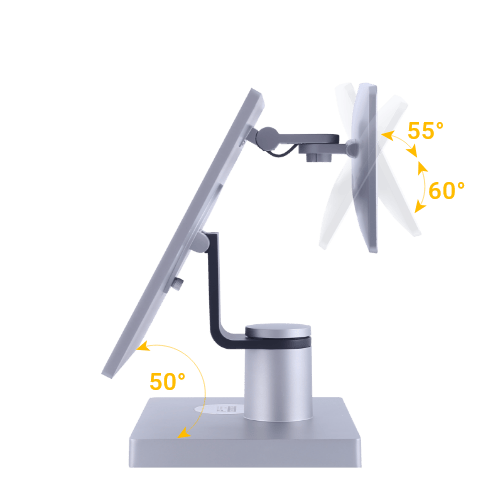

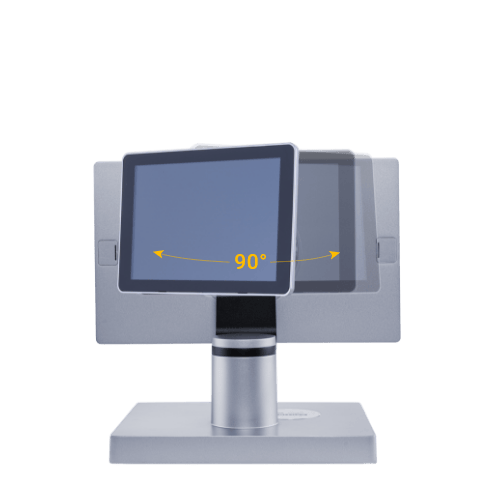

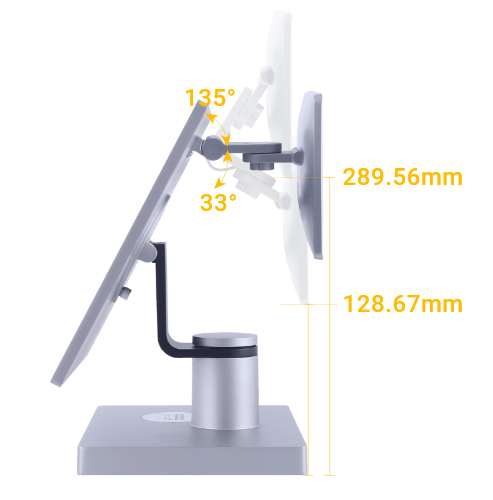

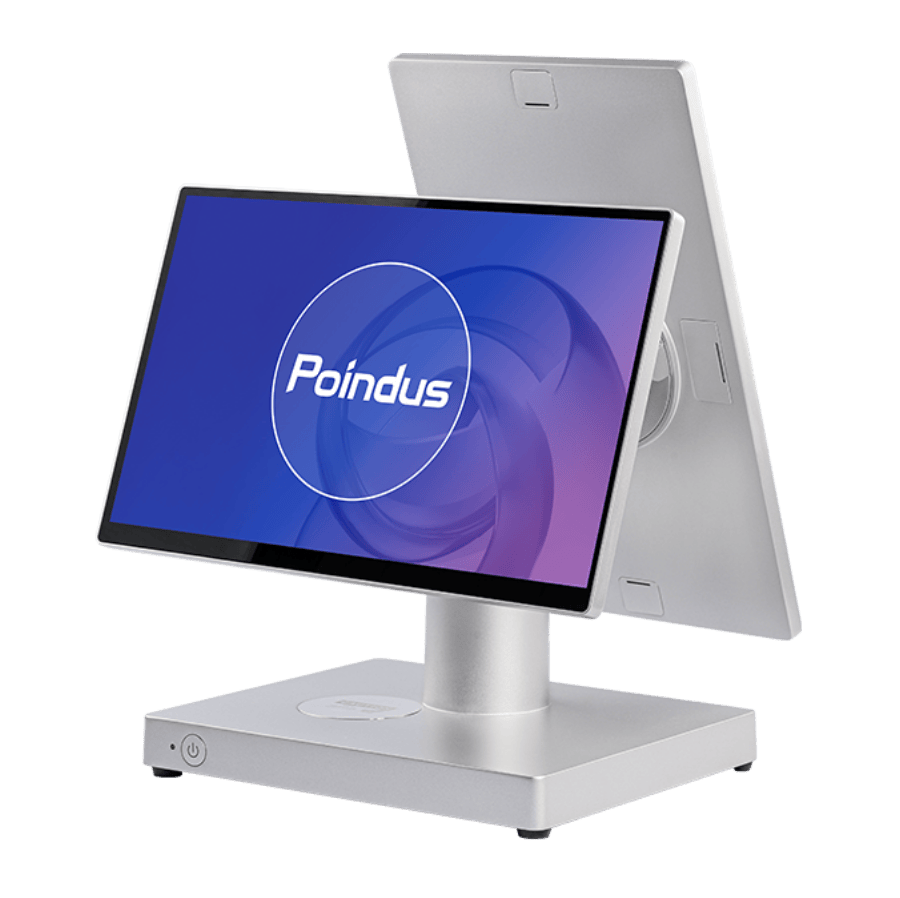

Versatile 2nd Display Adjustment to enhance customer interaction
and engagement
and engagement
Triple-hinge 10.1” 2nd display for versatile angle adjustment.
*Shown with the secondary display of M135
No more Cable Chaos
Clean, clutter-free setup with Hidden cable
management.
management.
No more Cable Chaos
Clean, clutter-free setup with Hidden cable
management.
management.

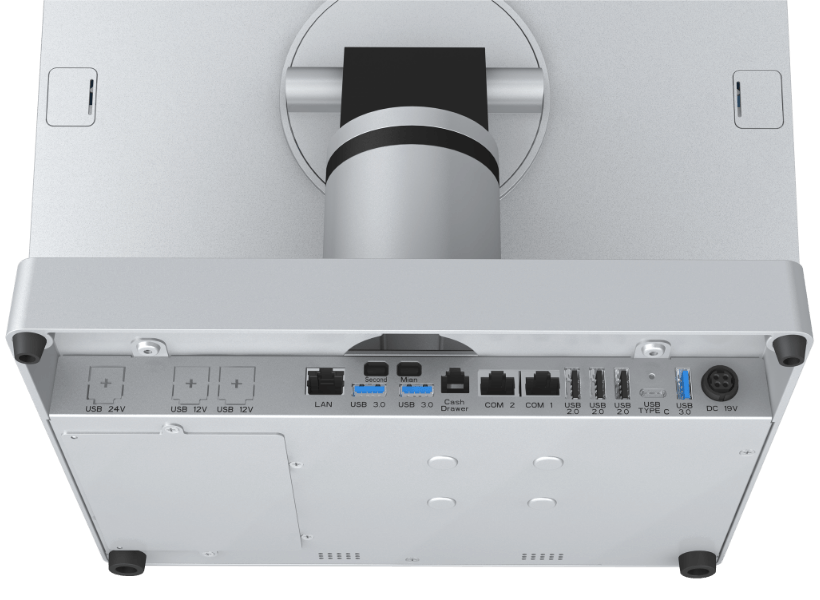

Compact Design. Expanded Connectivity.
Rich I/O with RAID and Powered USB Support
A compact design with rich I/O and flexible expansion support. Featuring RAID 0/1 and Powered USB options (project-based), the integrated expansion hub in the stand base connects all essential POS peripherals through a clean, centralized interface.

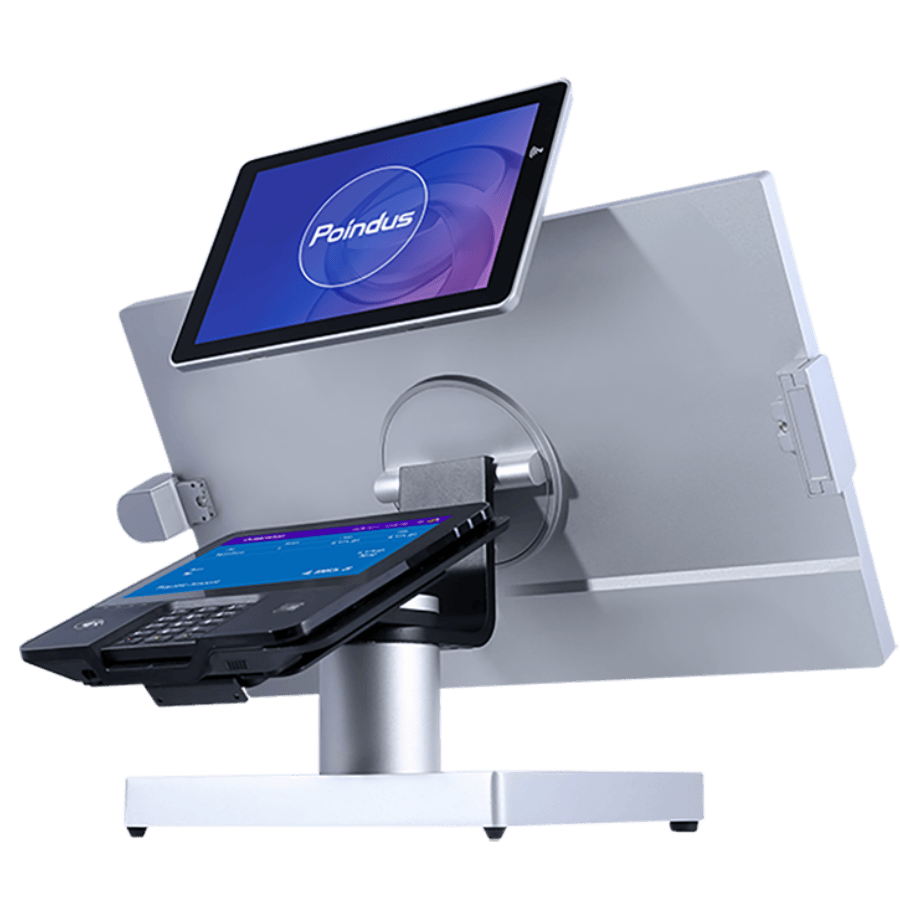

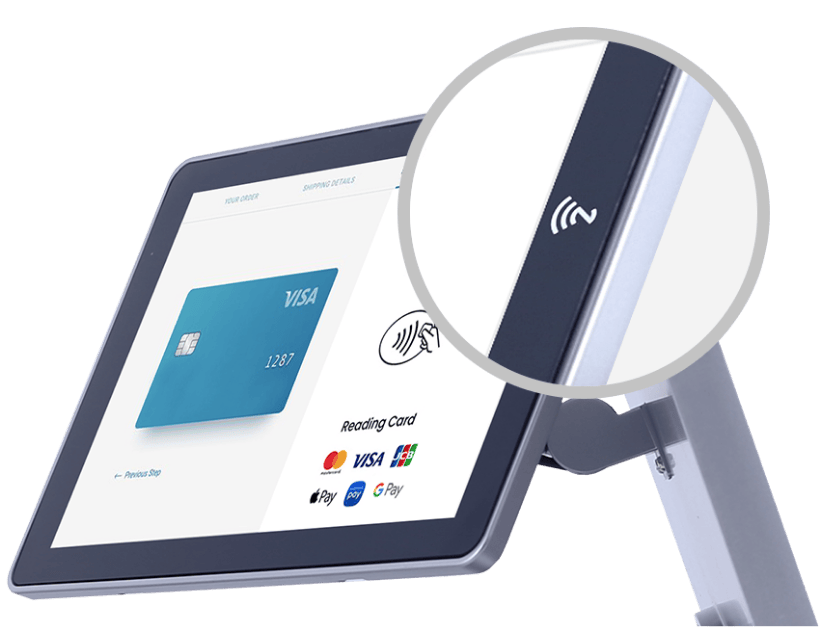

SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.

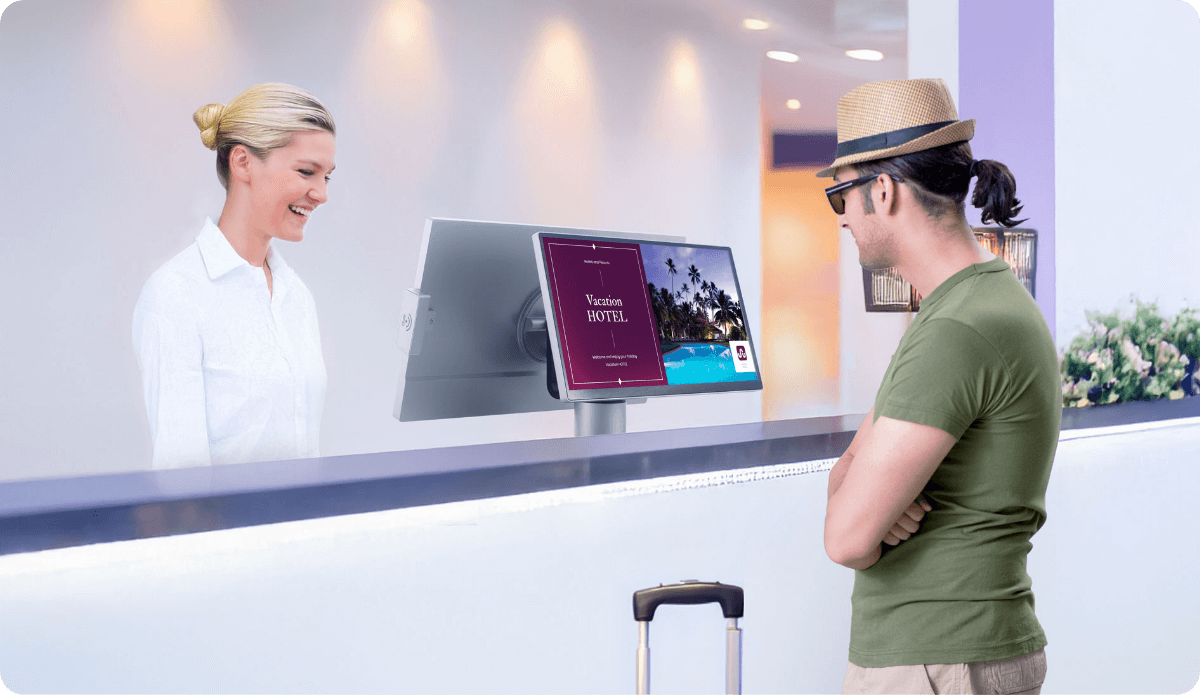

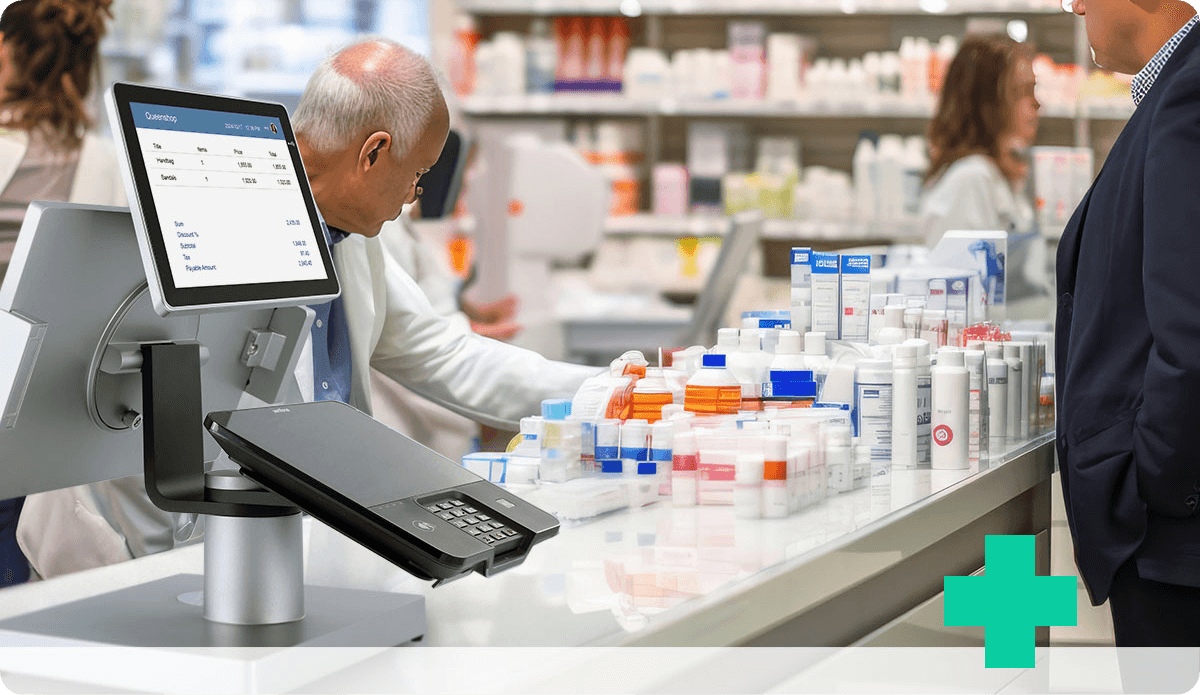

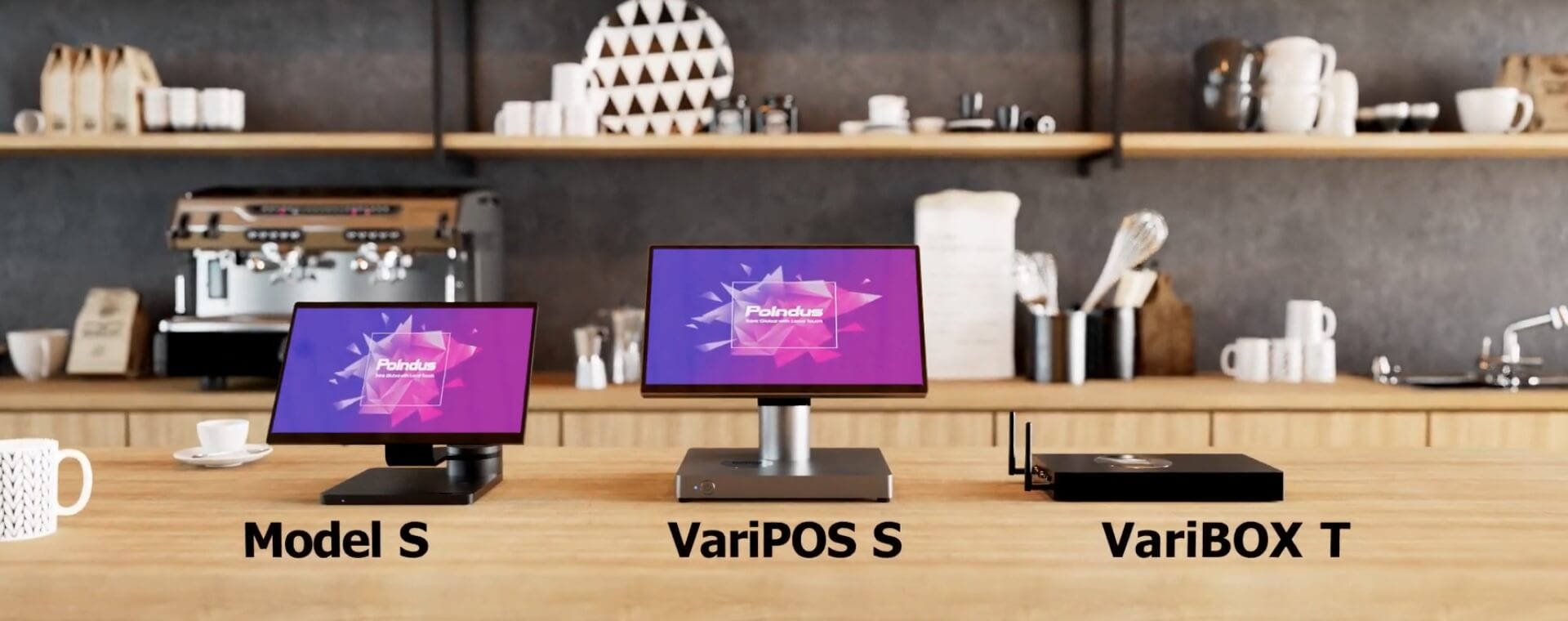

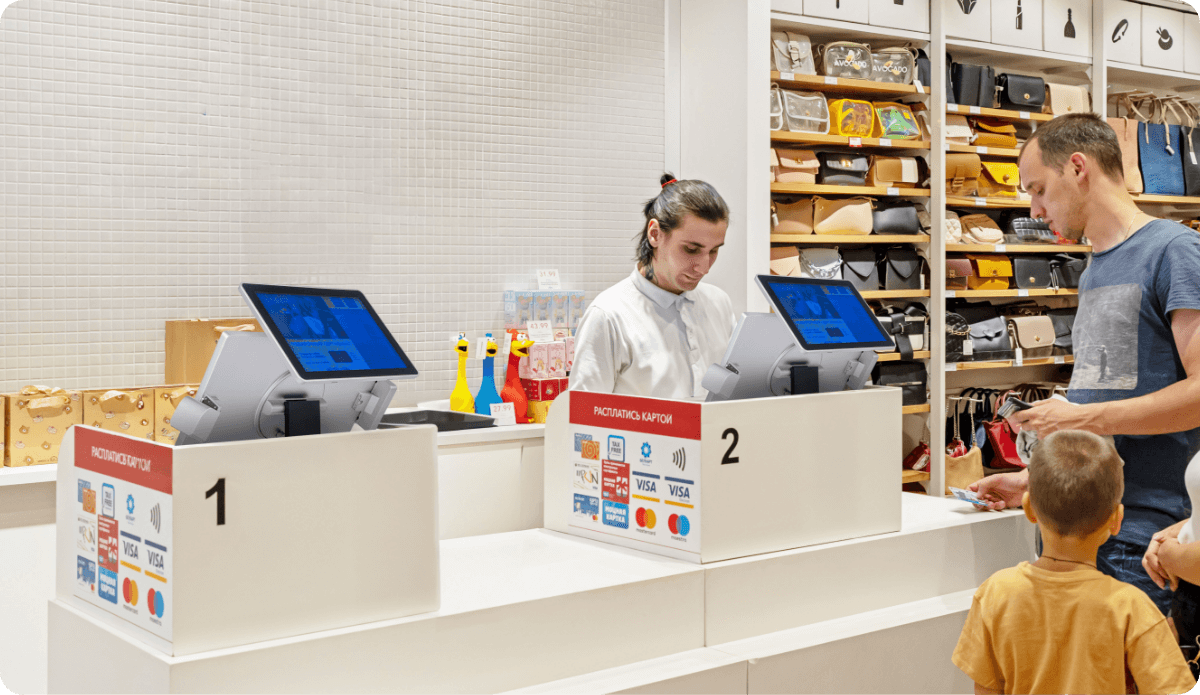

Application scenarios
Optimized for Modern Retail
iF DESIGN Award Winner
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.

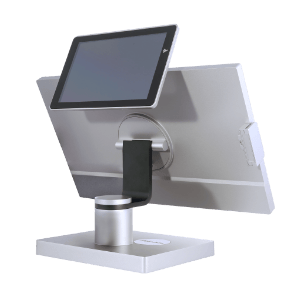

10.1“ 16:10 2nd display

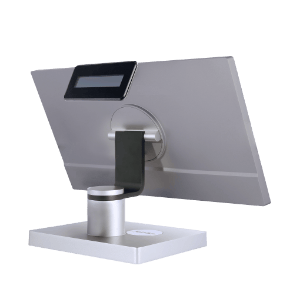

2×20 Character LCM

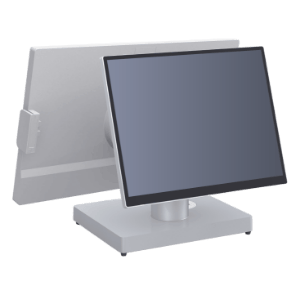

15″ 4:3 2nd display

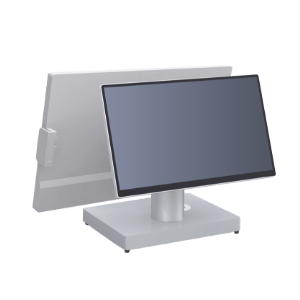

15.6″ 16:9 2nd display

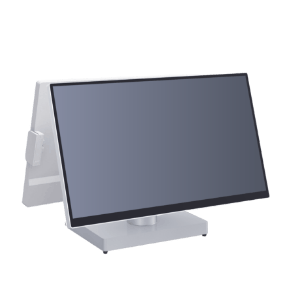

21.5″ 16:9 2nd display
10.1“ 16:10 2nd display
2×20 Character LCM
15″ 4:3 2nd display
15.6″ 16:9 2nd display
21.5″ 16:9 2nd display
Optional Accessories for More
Efficient Operations
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Turntable Base
Swivelable Payment Terminal Brackets
Multiple Rear Display Options
AI Camera
Comprehensive dual-side mounting support of peripherals
MSR / Fingerprint / iButton / RFID / 2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner

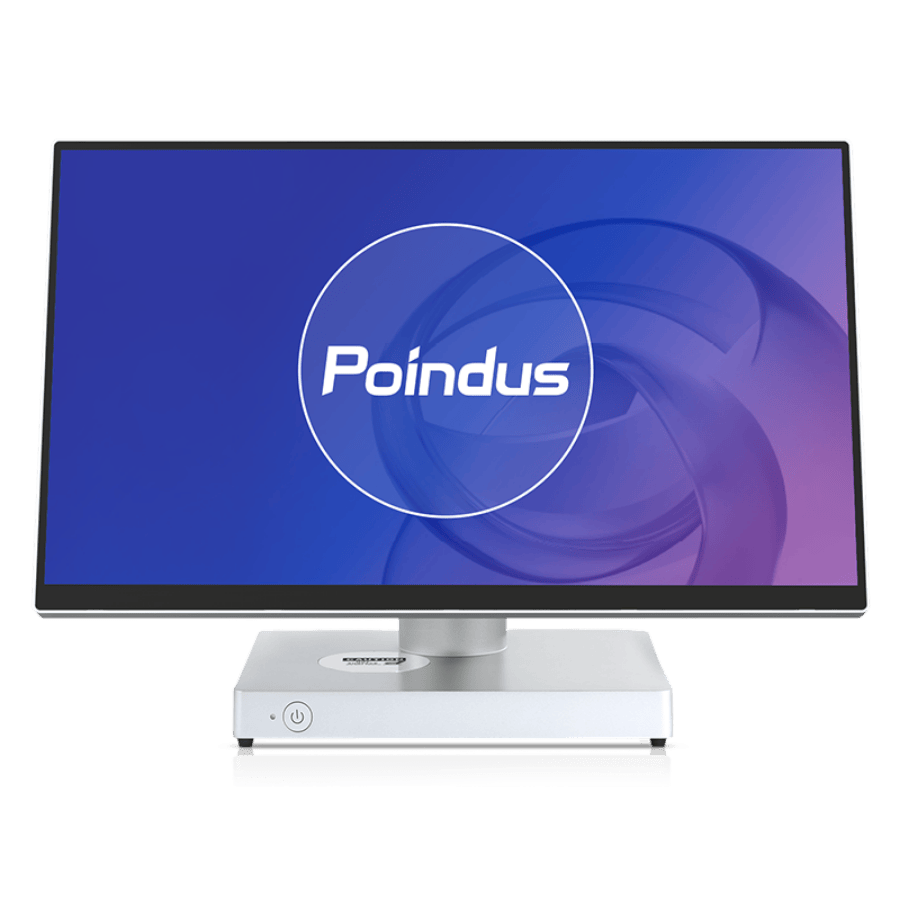

Photo Gallery
Specification
VariPOS S215
VariPOS 250A
VariPOS 270A
VariPOS S215
| System Information | PE24 Intel® Elkhart Lake Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key (for WiFi/BT project based) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Optional Configuration (Project based) | Powered USB ports (2 x DC+12v, 1 x DC+24v) + 1 x 2.5″ SSD or RAID 0/1 (Dual 2.5″ SSD) |
| Audio | 2 x 2W speaker |
| Power Requirement | – Input: 100-240Vac/50-60Hz – Output: DC+19V, 65W AC to DC Adapter (PE24) – Output: DC+19V, 90W AC to DC Adapter (PE26) (w/PUSB will use 180W adaptor) |
| Peripheral | – 3-Track MSR (AES/TDES Encryption/iButton reader/RFID reader/Fingerprint reader/Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface (Rear Panel Mounted) – 10.1″ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC (Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa), USB interface (Rear Panel Mounted) – 15.6″ 16:9 1920 x 1080 2nd screen (Landscape or Portrait mode) for PE26 (Base Bracket Mounted) – 21.5″ 16:9 @ 1920 x 1080 2nd screen for PE26 (Base Bracket Mounted) – Payment holder for Verifone VX820, MX915, PAX A80 (Base Bracket Mounted) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan: Fanless operation – Weight (NW/GW): 7.5 Kgs/9.5 Kgs – Dimension (WxHxD): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature: 0°C-40°C, 10%-90% Relative Humidity, Non-condensing – Storage Temperature: -20°C-60°C, 10%-90% Relative Humidity, Non-condensing |
| Certification | CE/FCC/LVD |
| OS Support | Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
VariPOS 250A
| System Information | PE24 Intel® Elkhart La ke Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key ( for WiFi / BT project based ) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports ( Support DC+0 / 5 / 12V by BIOS setting, default is 0V ) – 1 x Type C ( DP+PD ) – 1 x RJ45 Gigabit Ethernet support 10 / 100 / 1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V ( default ) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Audio | Powered USB ports ( 2 x DC+12v, 1 x DC+24v ) + 1 x 2.5” SSD or RAID 0/1 ( Dual 2.5” SSD ) |
| Optional Configuration (Project based) | 2 x 2W speaker |
| Power Requirement | – Input : 100 ~ 240Vac / 50 ~ 60Hz – Output : DC+19V, 65W AC to DC Adapter ( PE24 ) – Output : DC+19V, 90W AC to DC Adapter ( PE26 ) ( w/PUSB will use 180W adaptor ) |
| Power Requirement | – 3-Track MSR ( AES / TDES Encryption / iButton reader / RFID reader / Fingerprint reader / Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface ( Rear Panel Mounted ) – 10.1“ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC ( Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa ), USB interface ( Rear Panel Mounted ) – 15.6” 16:9 1920 x 1080 2nd screen ( Landscape or Portrait mode ) for PE26 ( Base Bracket Mounted ) – 21.5” 16:9 @ 1920 x 1080 2nd screen for PE26 ( Base Bracket Mounted ) – Payment holder for Verifone VX820, MX915, PAX A80 ( Base Bracket Mounted ) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan : Fanless operation – Weight ( NW / GW ) : 7.5 Kgs / 9.5 Kgs – Dimension ( WxHxD ): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature : 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature : -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| Certification | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
VariPOS 270A
| System Information | PE24 Intel® Elkhart La ke Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key ( for WiFi / BT project based ) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports ( Support DC+0 / 5 / 12V by BIOS setting, default is 0V ) – 1 x Type C ( DP+PD ) – 1 x RJ45 Gigabit Ethernet support 10 / 100 / 1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V ( default ) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Audio | Powered USB ports ( 2 x DC+12v, 1 x DC+24v ) + 1 x 2.5” SSD or RAID 0/1 ( Dual 2.5” SSD ) |
| Optional Configuration (Project based) | 2 x 2W speaker |
| Power Requirement | – Input : 100 ~ 240Vac / 50 ~ 60Hz – Output : DC+19V, 65W AC to DC Adapter ( PE24 ) – Output : DC+19V, 90W AC to DC Adapter ( PE26 ) ( w/PUSB will use 180W adaptor ) |
| Power Requirement | – 3-Track MSR ( AES / TDES Encryption / iButton reader / RFID reader / Fingerprint reader / Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface ( Rear Panel Mounted ) – 10.1“ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC ( Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa ), USB interface ( Rear Panel Mounted ) – 15.6” 16:9 1920 x 1080 2nd screen ( Landscape or Portrait mode ) for PE26 ( Base Bracket Mounted ) – 21.5” 16:9 @ 1920 x 1080 2nd screen for PE26 ( Base Bracket Mounted ) – Payment holder for Verifone VX820, MX915, PAX A80 ( Base Bracket Mounted ) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan : Fanless operation – Weight ( NW / GW ) : 7.5 Kgs / 9.5 Kgs – Dimension ( WxHxD ): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature : 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature : -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| Certification | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
