cost-effective computing performance.
Support Intel® 12th Generation Alder Lake i3/i5 CPU

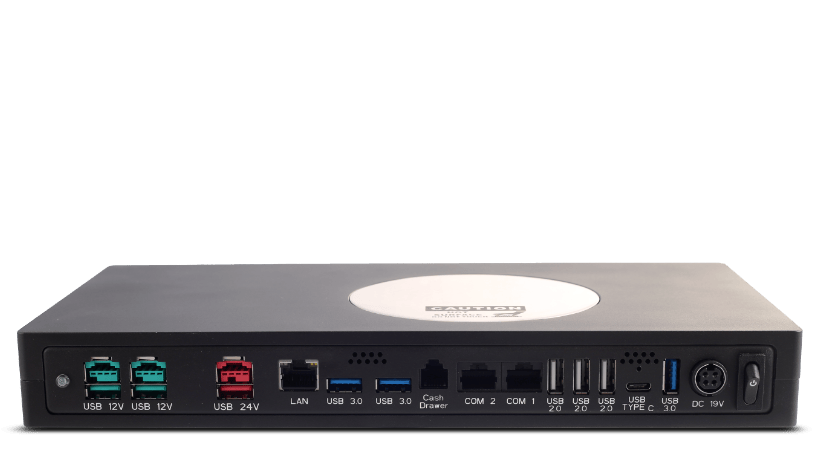

VariBOX T Series
Features
- Intel® 12th Generation Alder Lake i3/i5 CPU.
- Exceptional Thermal performance (Full CPU performance without thermal throttling).
- Custom Expansion Options PUSB/RAID/WiFi / COMM (Project Based).
- OS Support: Windows 10/11 / Linux
- Robust Aluminum/Copper Enclosure
- System Size : W285 x D147 x H38 (mm).
- VESA 75/100
Product Highlights
Compact and Flexible
Robust Aluminum / Copper Enclosure
Strong Performance
Advanced Cooling Design
VESA compliance
75*75 / 100*100
OS Support
Win 10 / Win 11 / Linux
Custom Expansion
Options PUSB/RAID/WiFi / COMM

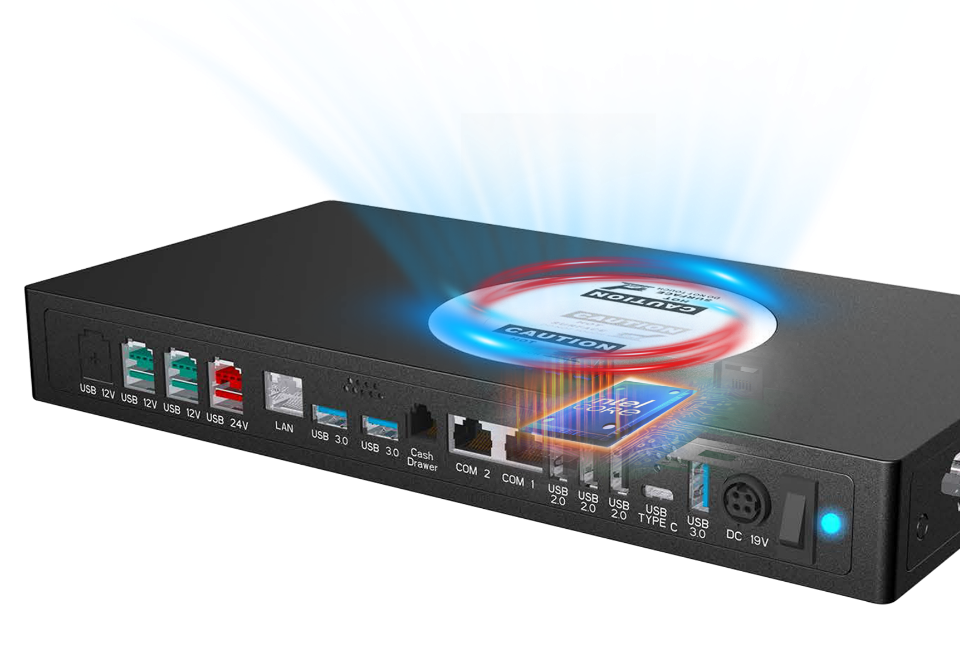

Advanced Cooling Design
for Enhanced Performance
- Innovative copper heat sink (401 W/m·K) for rapid cooling.
- Designed to support 21W higher CPU TDP
- for enhanced stability and operational potential.
- Efficient cooling prolongs product lifespan.

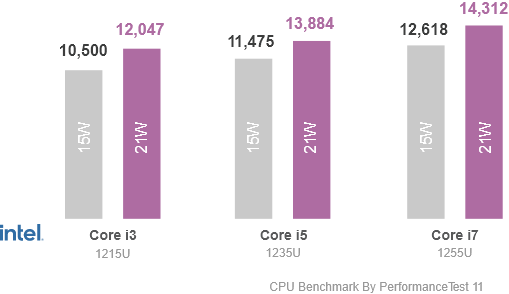

Maximized Benchmark
Performance
- Fine-tuned TDP parameters for optimized efficiency.
- At 21W, i3 performance rivals i5 at 15W.
- Customized power level & CPU overclock by request
Designed for High Performance Box PC Applications
The VariBOX T Series delivers power and performance for advance retail and hospitality scenarios. Applications that demand high performance for complex retail and hospitality scenarios require a powerful processor and extensive connectivity for retail peripherals. The VariBOX T Series has the flexibility for mixed implementations in any scenario meeting the demands of any project requirements.
Point Of Sale (POS) Applications
- Box PC solutions for every budget and performance requirement.
- Frees up valuable counter space with its compact design
- Provides retailers of all sizes with reliability and features that maximize operating cost efficiency.
Compact and Flexible
- Robust, extended lifecycle industrial platform specifically designed for Advanced Point of Sale (POS) Applications.
- Modular platforms with enhanced security providing retailers and hospitality operators the flexibility to deploy the solution in a variety of scenarios to handle even the most demanding environments.

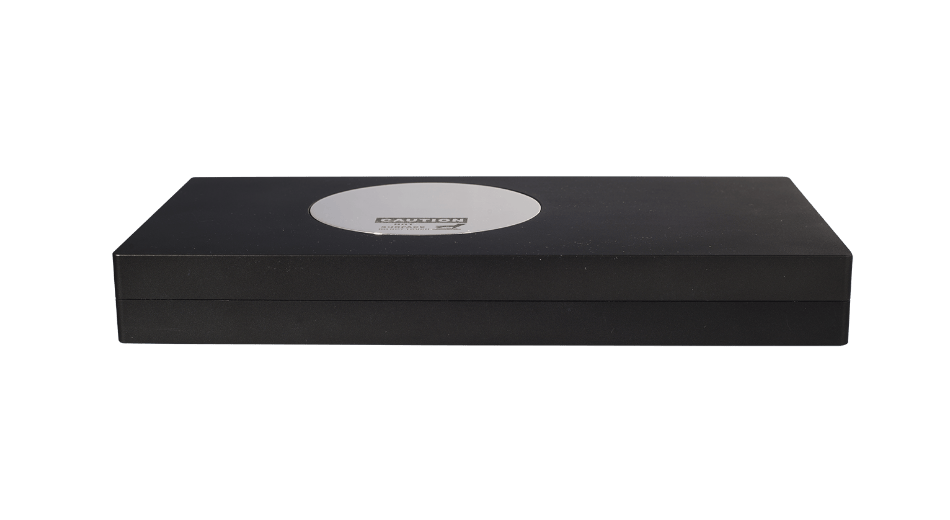

Robust Aluminum/Copper Enclosure

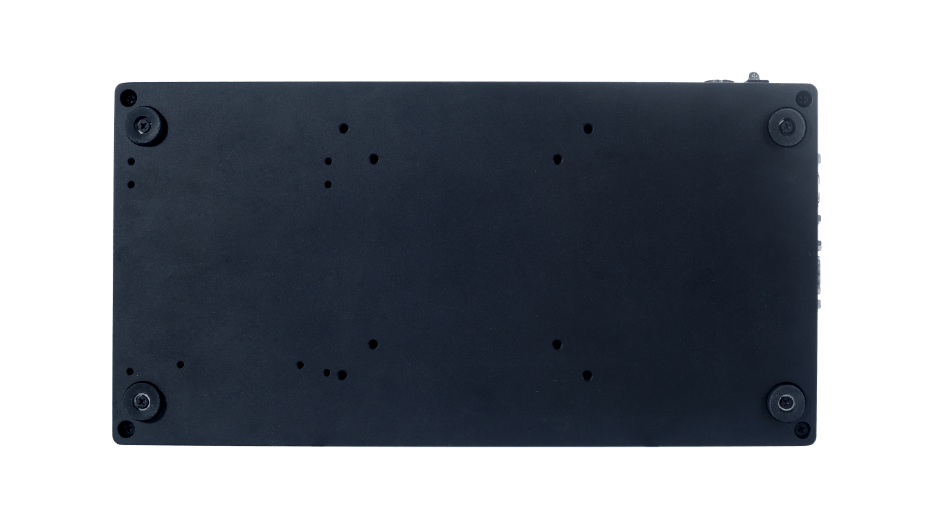

VESA compliance
75*75 / 100*100
75*75 / 100*100
System Size
W285 x D147 x H38 (mm).
W285 x D147 x H38 (mm).
Easy Integration
Windows 10 (64 bit) | 11 (64 bit) | Linux (e.g. Ubuntu 22.04)
Custom Expansion Options
The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.
PUSB / RAID / WiFi / COMM
COMM
WiFi
PUSB / RAID
COMM
WiFi
PUSB / RAID
Ultra-Compact Design
Cost Effective Computing Performance
Our Box PCs feature ultra-compact design and are powered by Intel® processors with low-power consumption in a fanless architecture.
The product is aimed at markets that demand cost-effective computing performance. They can be easily integrated and support diverse peripherals to meet a wide range of retail and hospitality applications.

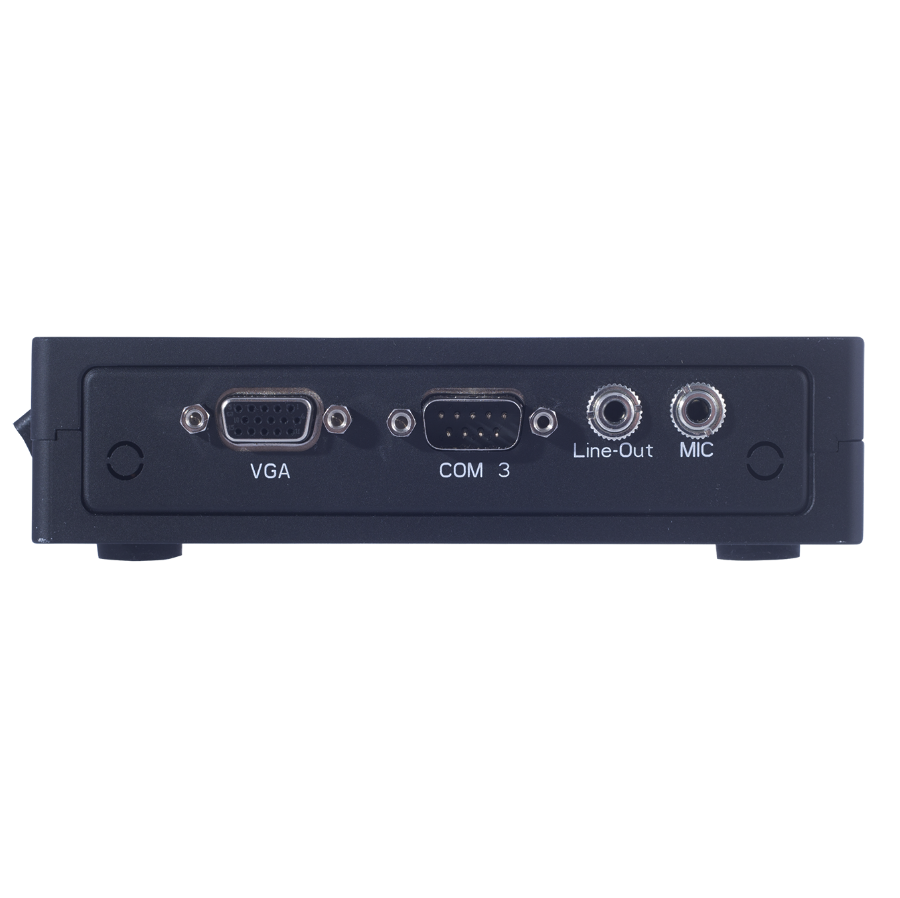

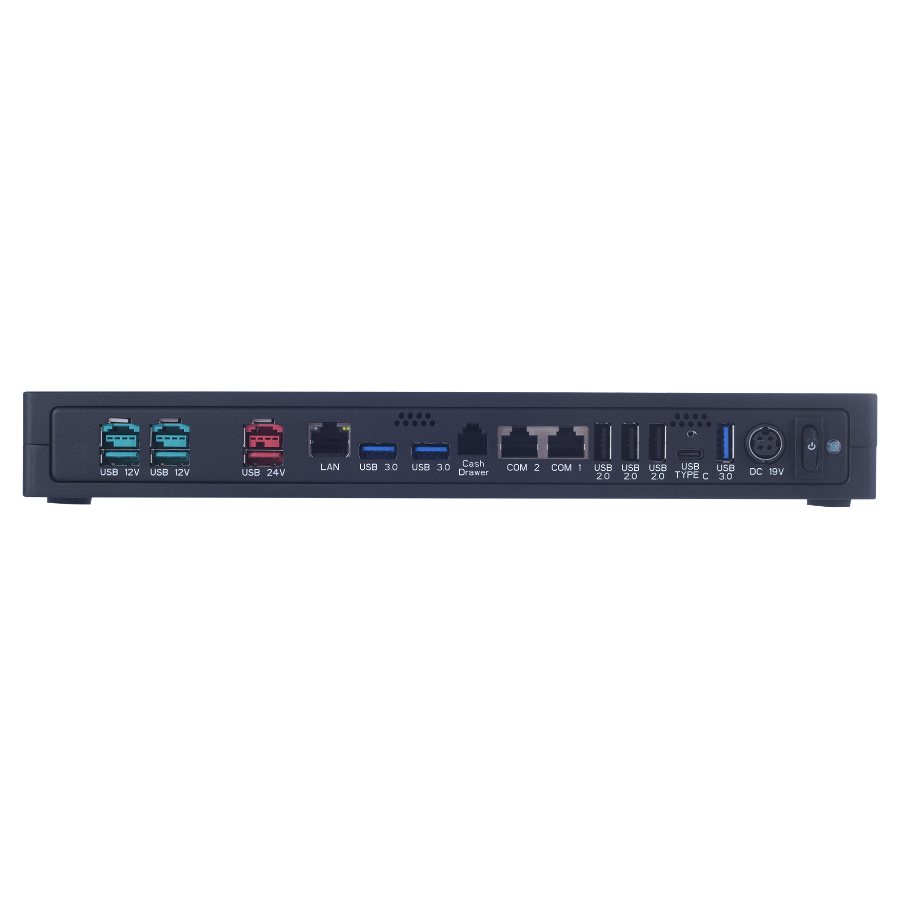

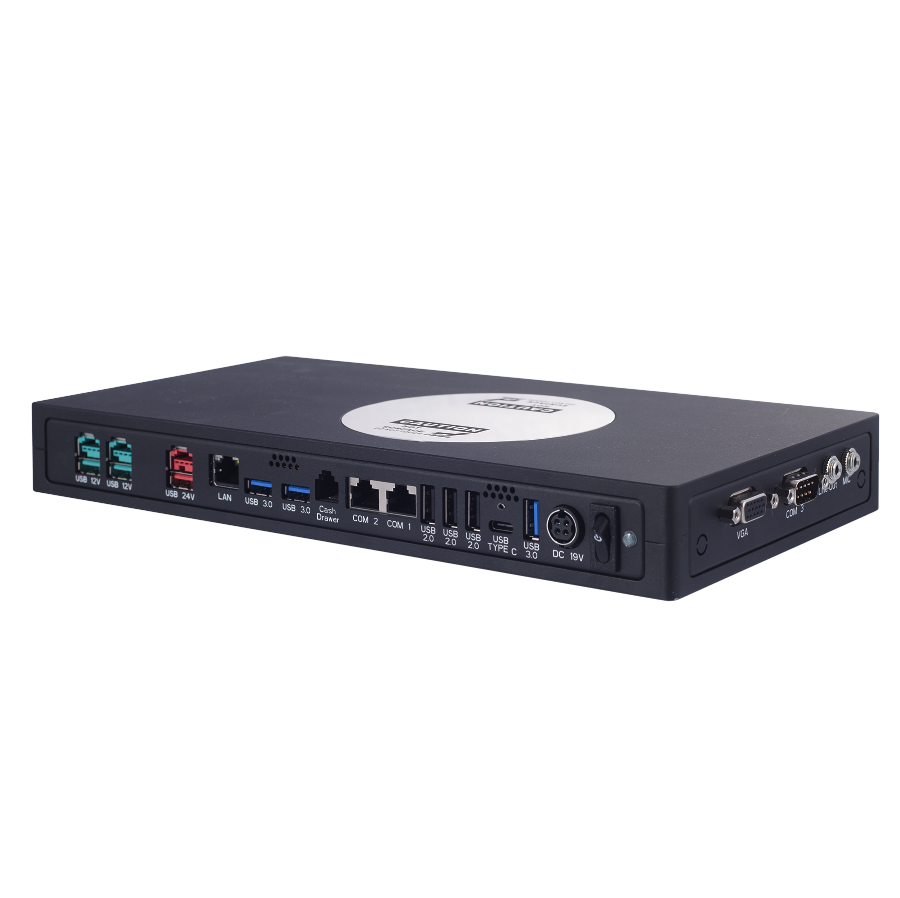

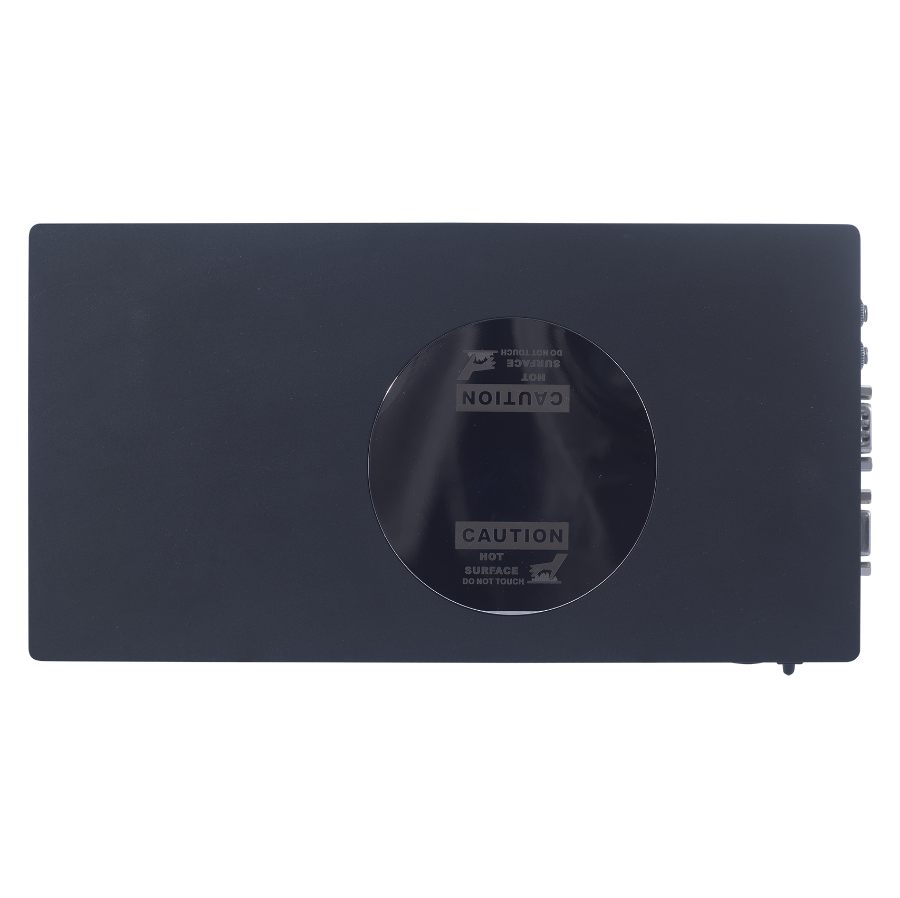

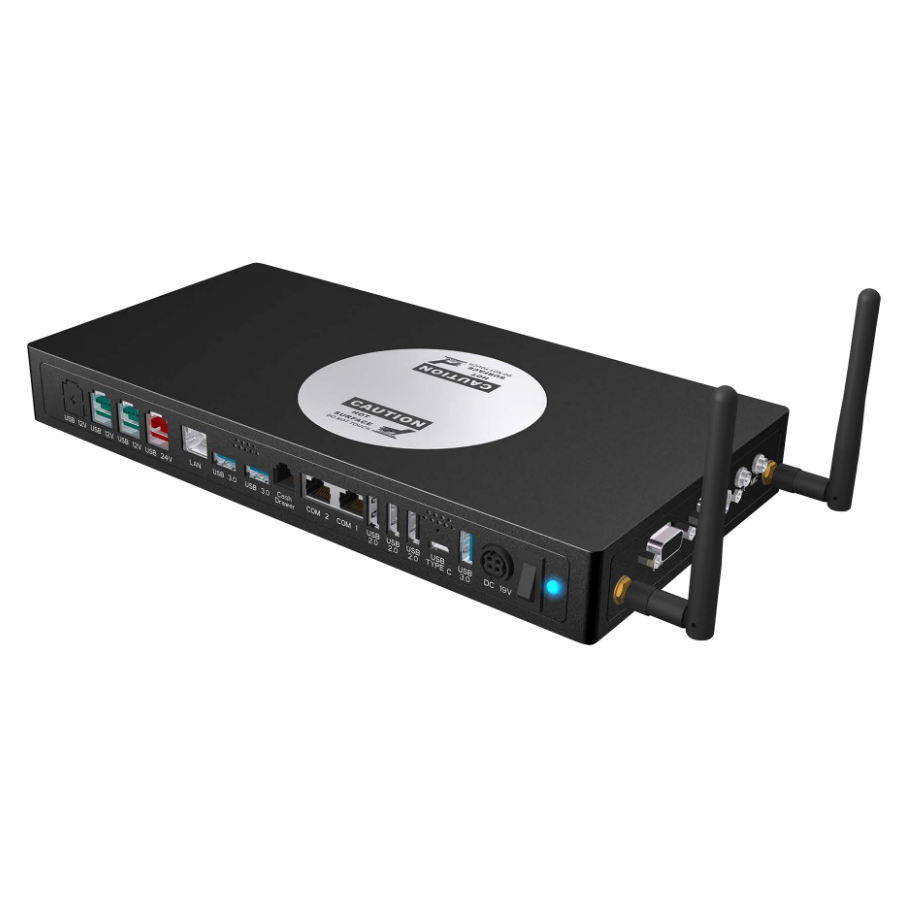

Photo Gallery

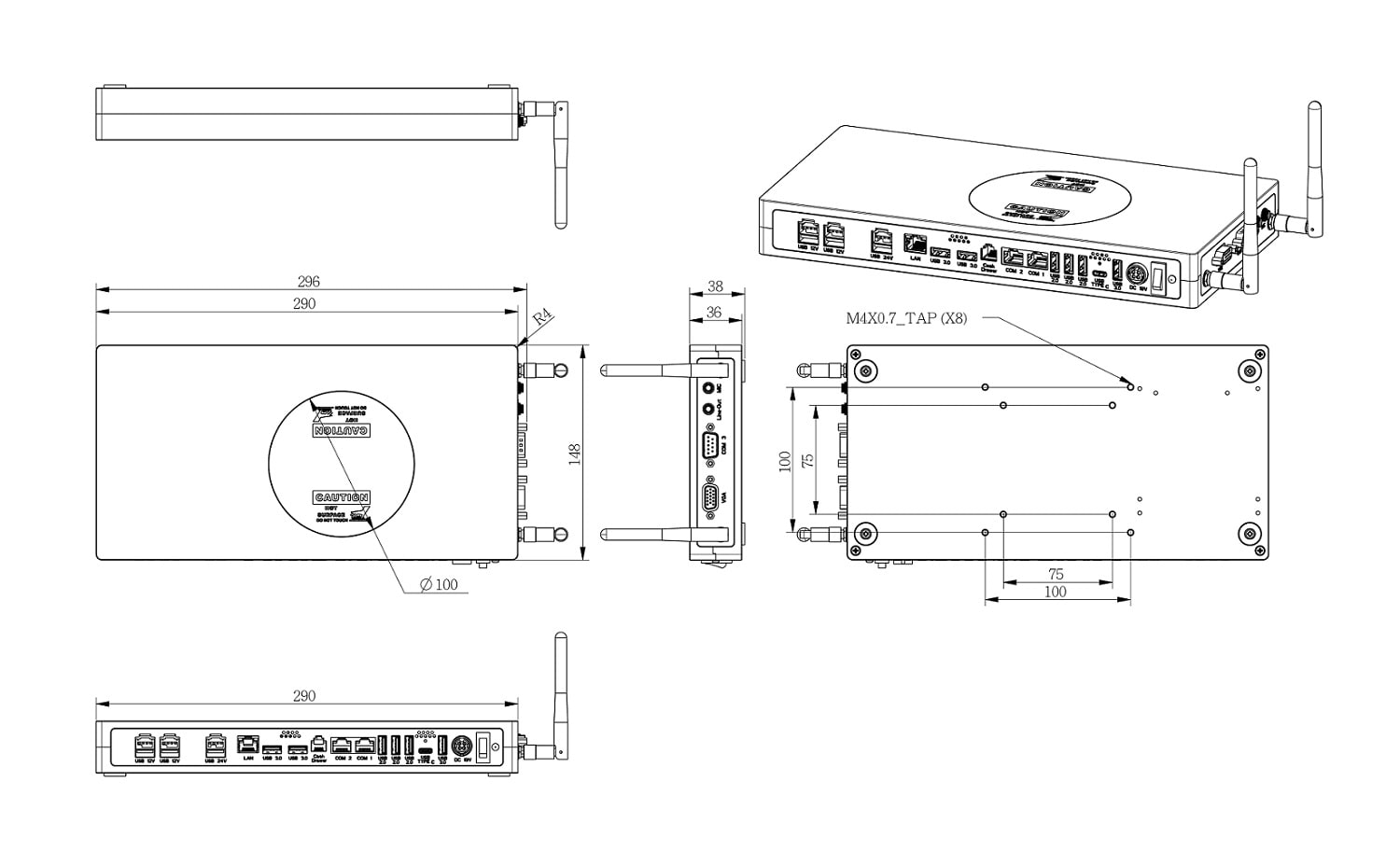

Schematic
Specification
VariBOX T Series
VariBOX T Series
| System Information | Intel® Alder Lake-P Platform – Core i5 – Core i3 System Memory – 1 x DDR5 SO-DIMM socket, Max. Capacity 32 GB Graphics Engine TPM |
|---|---|
| Storage | Expansion Slots – 1 x 2280 M.2 M-Key (PCIe Gen3x4) – 1 x 2230 M.2 E-Key (WiFi/BT) |
| Connectivity | I/O Optional I/O Ports (Project Based) Ethernet |
| Power Requirement | 19VDC (adapter 19V/90W) *PUSB will use 180 watt adapter |
| Mechanical & Construction | – Construction: Metal/Aluminum, Copper – Default color: Black – System fan : Fanless operation – Dimension ( WxHxD ): 285 x 147 x 38mm |
| Environmental | – Operating temperature: 0°C ~ 40°C – Operating humidity: 10% ~ 90% (non-condensing) – Non-operating temperature: -20°C ~ 60°C – Non-operating humidity: 10% ~ 90% (non-condensing) Use wide temperature range memory and storage |
| Operating Systems | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
| Compliance | CE / FCC / LVD |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
