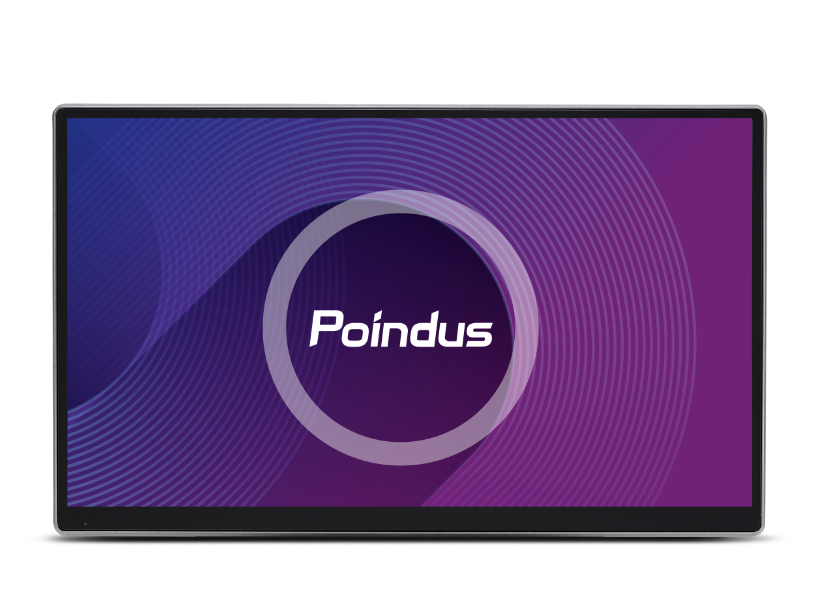

VariPPC 256
Design to Impress
Features
- 15.6″ 16:9 Wide TFT Full HD LCD (1920×1080) (LED backlight), 350 nits.
- The World’s Slimmest Edge Bezel Design. (4.8mm)
- Intel 7th Generation to 12th Generation CPU
Core i3, i5 & Celeron in a fanless architecture. - Supports USB-C for function expansion. (VariIO I/O Box)
- Extendable IO capability meets any project specification. (VariIO I/O Box)
- VESA 75/100 bracket for PPC/Wall-Mounting Applications.
- Desktop Dual Hinged Stand for Extreme Flexibility. (See VariPOS 256S/256A)
- Peripheral compatibility across the whole VariPOS 2 Series:
2D Scanner, RFID, MSR, iButton & Fingerprint. - TSE Adapter for VariPOS (KassenSichV) Complian
Product Highlights
15.6″ Full HD
Widescreen Design
The Slimmest Edge
Bezel Design
Strong Performance

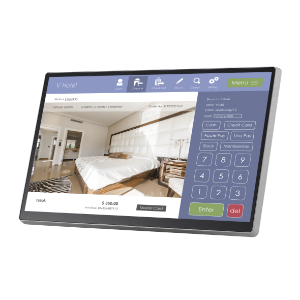

VESA 75/100
Pole/Wall-Mount
VariIO I/O Box
Advanced Scalability
Full Peripherals
Ready to Go
Outperform the Competition
VariPPC 256 combines advanced computing power with a hardened display to provide a modular solution that maximizes up-time critical to any business and enables easy customization and simplified upgrading while reducing maintenance costs.

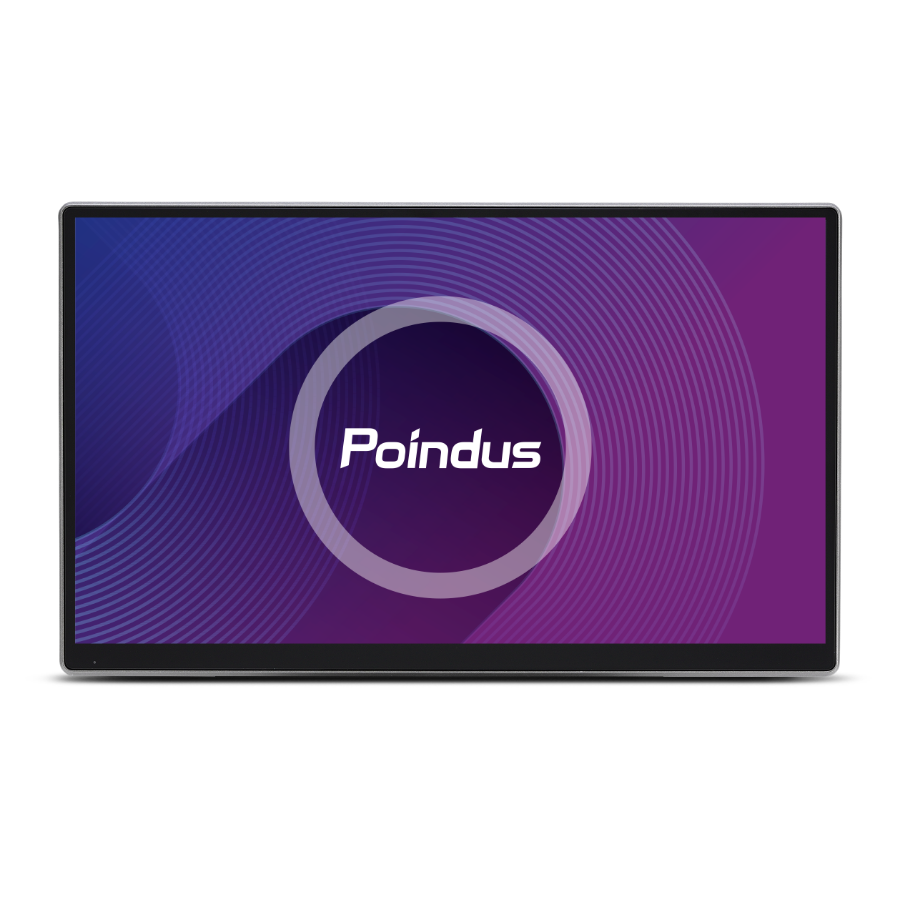

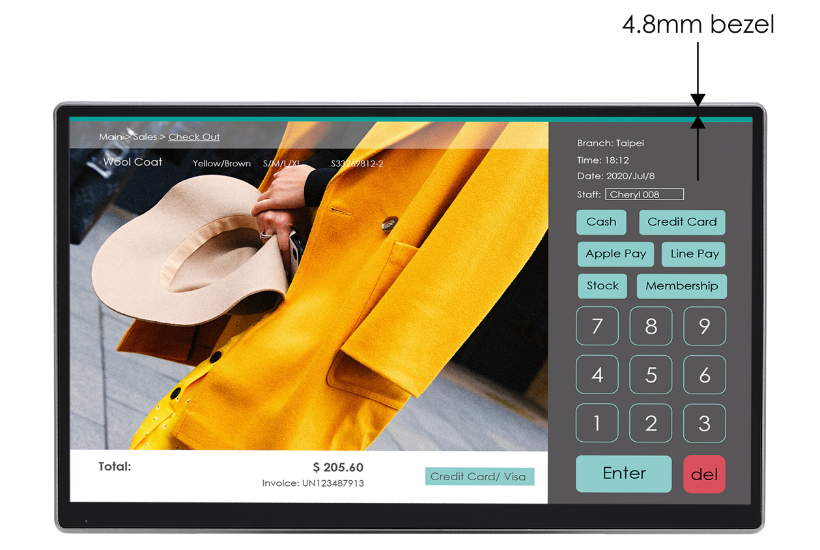

Streamlined with Virtually Borderless Widescreen
VariPPC 256 delivers the latest ultra-slim bezel (4.8mm) for a sleek and modern 15.6″ Full HD widescreen design that provides clean lines and a seamless viewing experience.
Maximize Performance with Intel® Core i5
Designed to meet the demands of a typical Industry 4.0 applications with a fan-less architecture and protection against exposure to moisture, dust and extreme temperatures.and commercial applications.

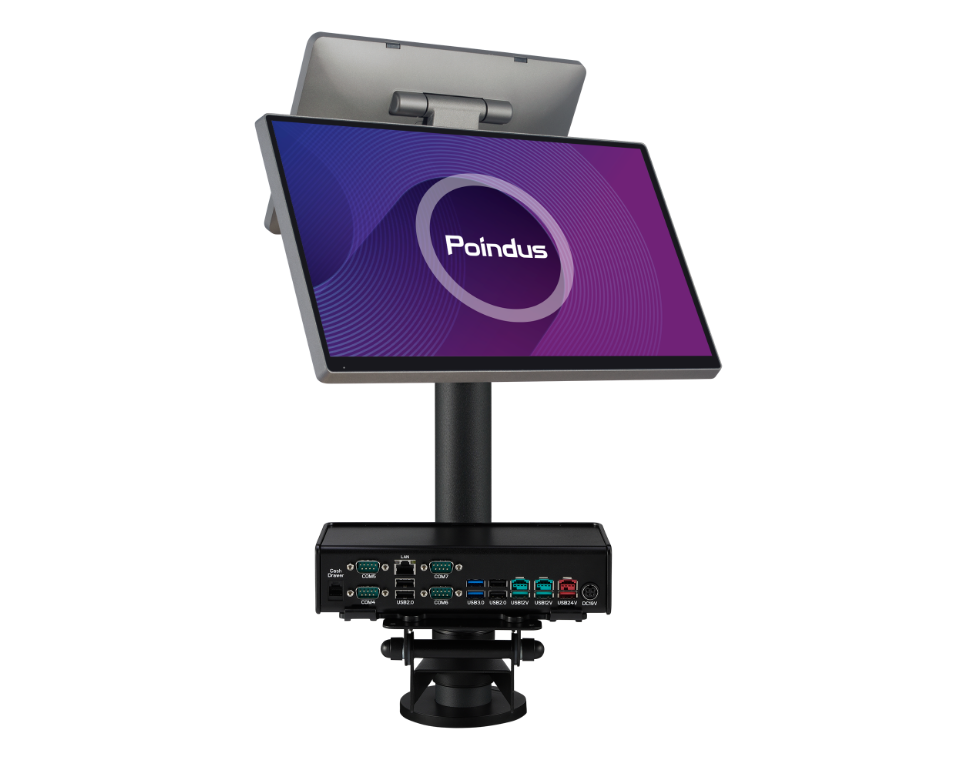

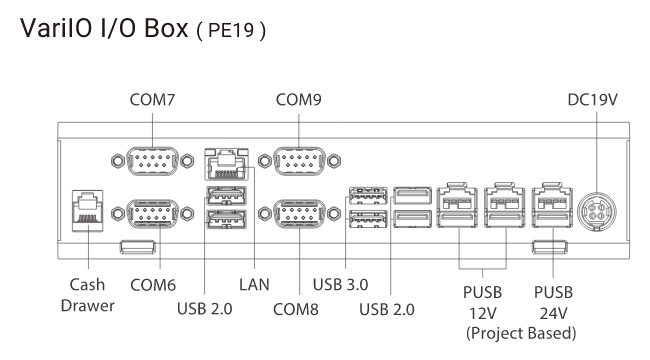

VariIO I/O Box Advanced Scalability
VariPPC 256 combined with the VariIO I/O Box is the most flexible solution, supporting additional LAN*, COM* & Powered USB extending connectivity and functionality.
The VariIO I/O Box connects via a single custom high-speed USB Type C connector to maintain high I/O transfer rates and is independently mountable allowing for extreme scalability and removes the need for over provisioned I/O costs.
Additionally, VariIO I/OBox is customizable to meet your connectivity requirements for any project scenario.
* Project Based only
Overcome project limitations with extended connectivity & functionality
Powerful Performance
Easy Integration

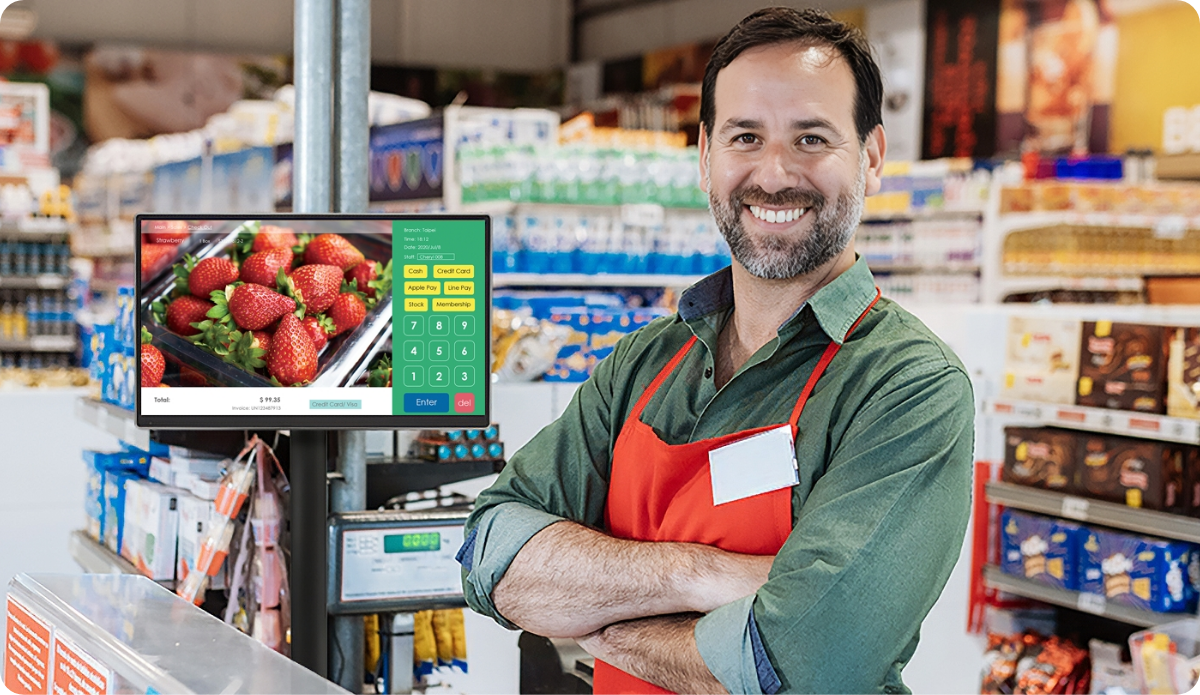

Application scenarios

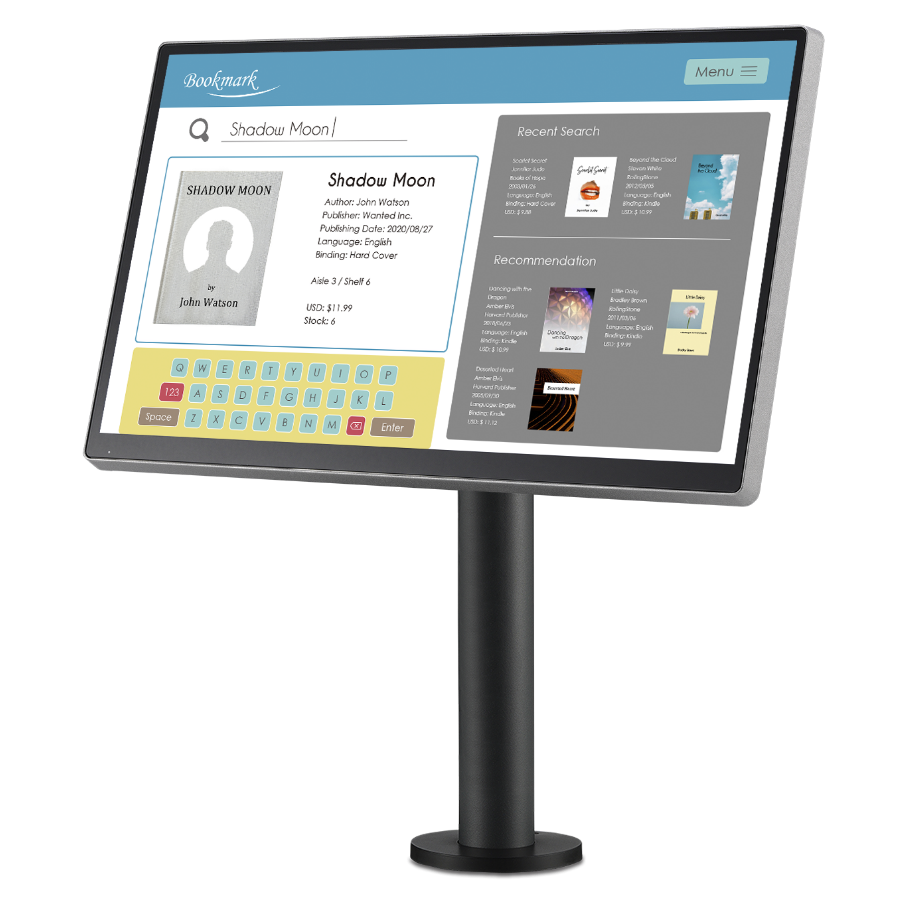

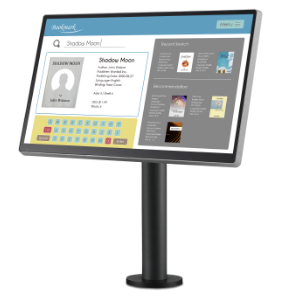

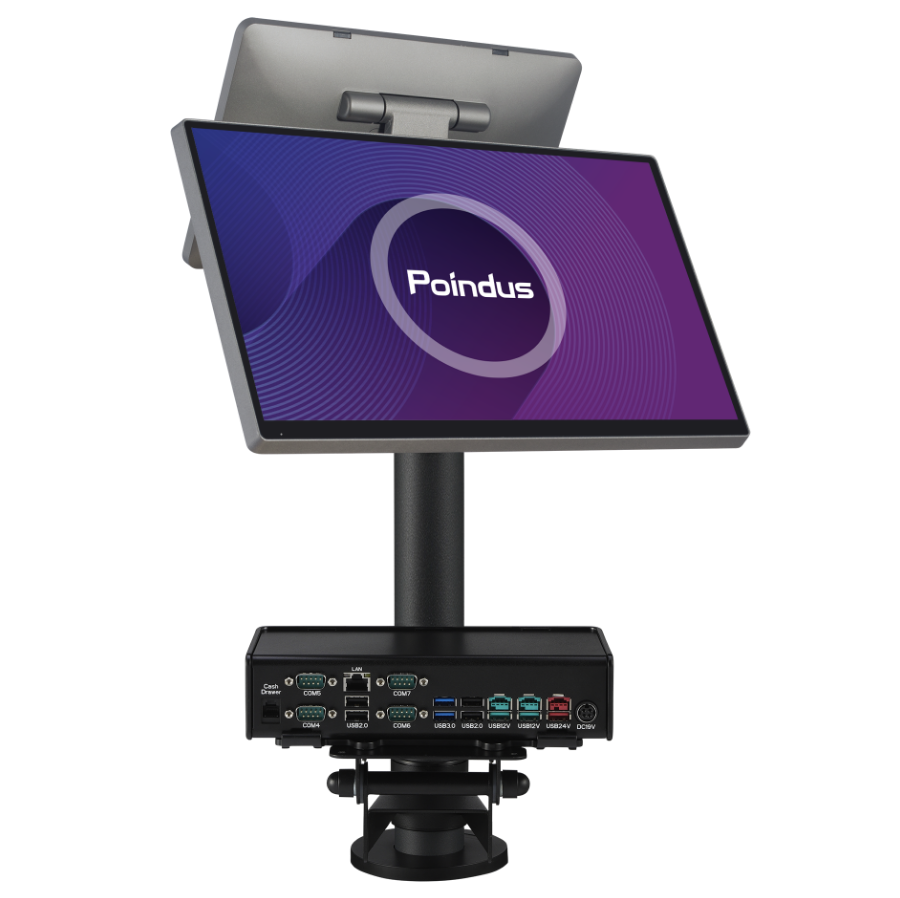

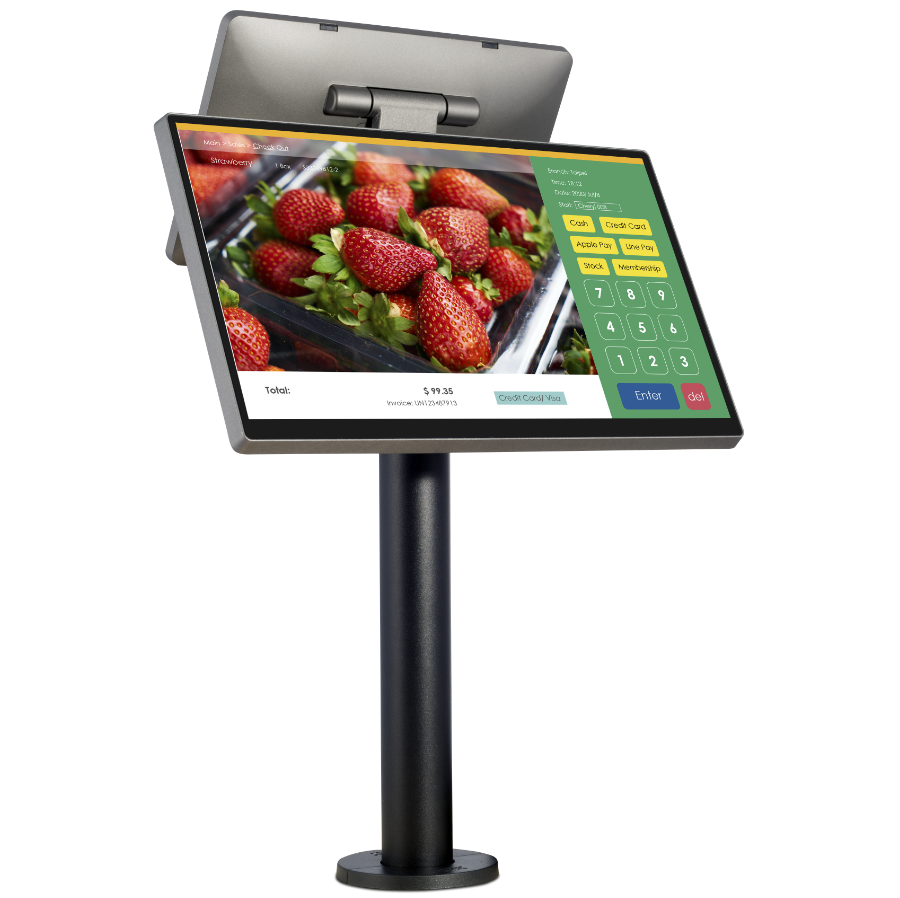

Versatile Mounting Solutions
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario. Our versatile mounting options deliver a modern attractive environment for any business.

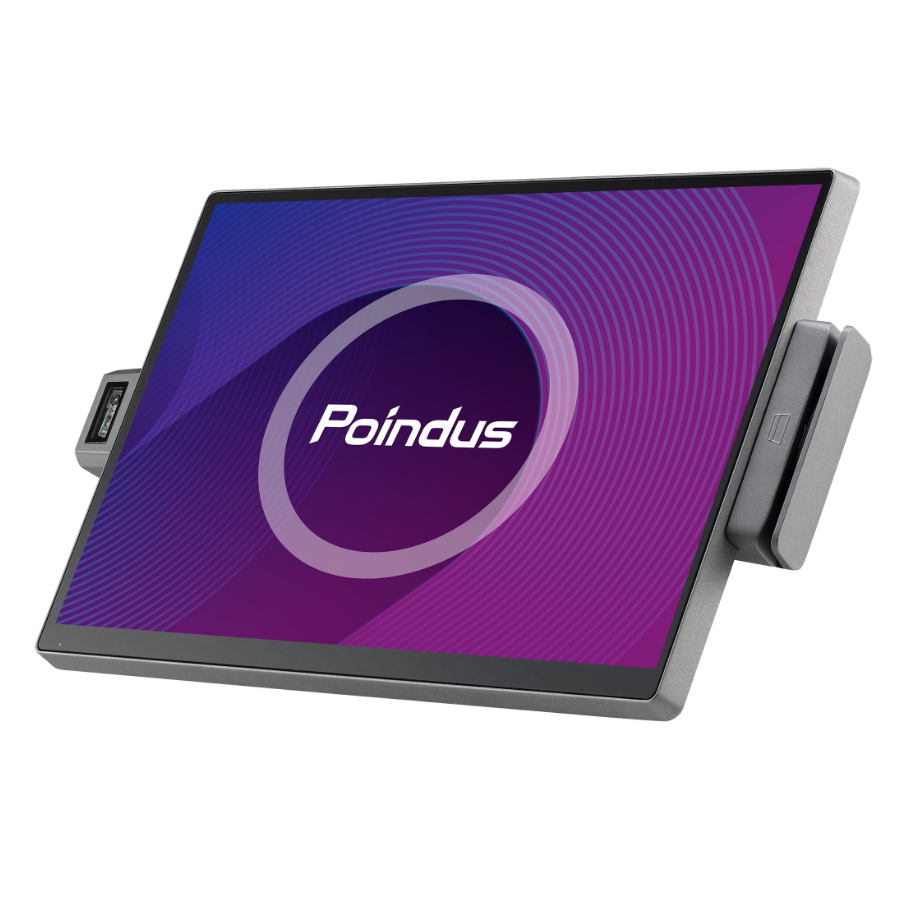

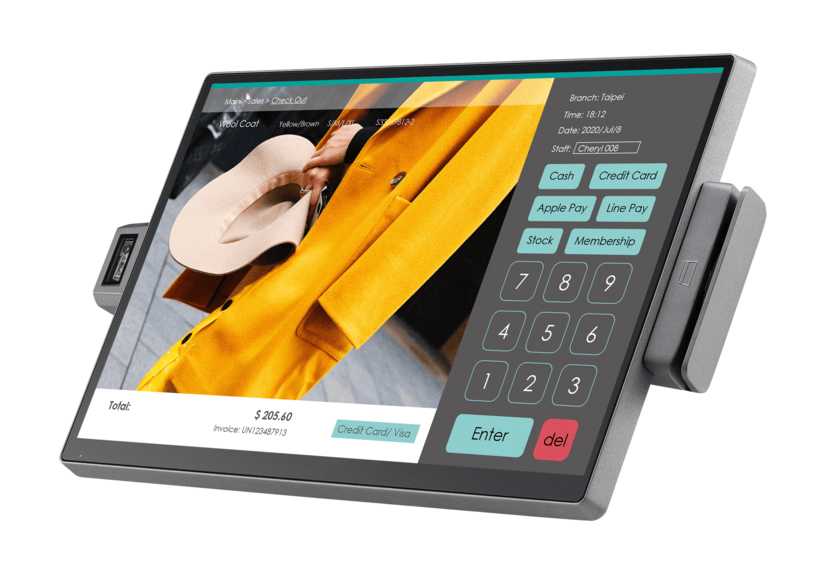

Comprehensive dual-side mounting support of peripherals
Photo Gallery
Specification
| System Information | PE24 PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 15.6″ Full HD Display, resolution 1920×1080 – 350cd/m², LED backlight – 10-point PCAP multi-touch screen |
| Storage | 1 x M.2 PCIe SSD or 1 x 2.5″ SATA III SSD |
| Expansion | 1 x M.2 E Key |

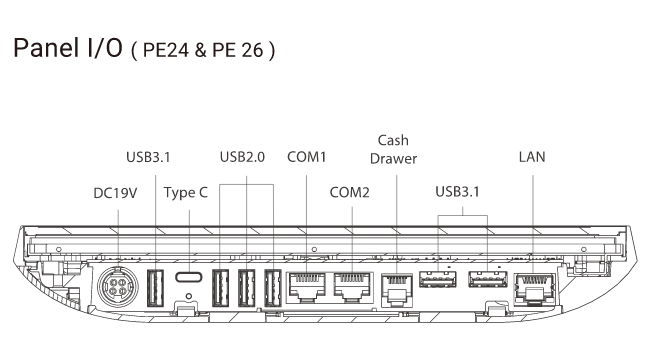

| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| VarilO I/O Box (Project Based) | – 1 x RJ11 support DC+12V or 24V (default) port, support 2 cash drawers – 1 x RJ45 Gigabit Ethernet – 2 x USB 3.0, 4 x USB 2.0 – 4 x RS-232 (Jumper setting, support DC+0/5/12V, default setting is 0V) – 2 x DC+12V Powered USB – 1 x DC+24V Powered USB – 1 x Type C |
| Audio | 2 x 2W speaker |
| Power Requirement | – Input: 100-240Vac/50-60Hz – Output: DC+19V, 65W AC to DC Adapter (PE24) – Output DC+19V, 90W AC to DC Adapter (PE26) *PUSB will use 180W adaptor |
| Mechanical & Construction | – Front panel IP56 – Default color Space Gray – System fan: Fanless operation – Weight (NW/GW): 4.3 Kgs/6.4 Kgs – Dimension (WxHxD): 362.8 x 219.9 x 34 mm – Mounting: Wall/Pole/VESA 75×75 – Construction: Die-casting aluminum with plastic covers |
| Environmental | – Operating temperature: 0°C-40°C, 10%-90% Relative Humidity, Non-condensing – Storage temperature: -20°C-60°C, 10%-90% Relative Humidity, Non-condensing |
| Certification | CE/FCC/LVD |
| OS Support | Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
| Optional Accessories | – 3-Track MSR, USB type – iButton reader, USB type – RFID reader, 13.56MHz, USB type – Fingerprint reader, USB type – 2D scanner, USB type – 2×20 character LCM – 10.1″ Resolution 1280 x 800 (16:10 wide screen) USB Type: Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa with or without True-flat P-cap 10 point Multi-touch |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
