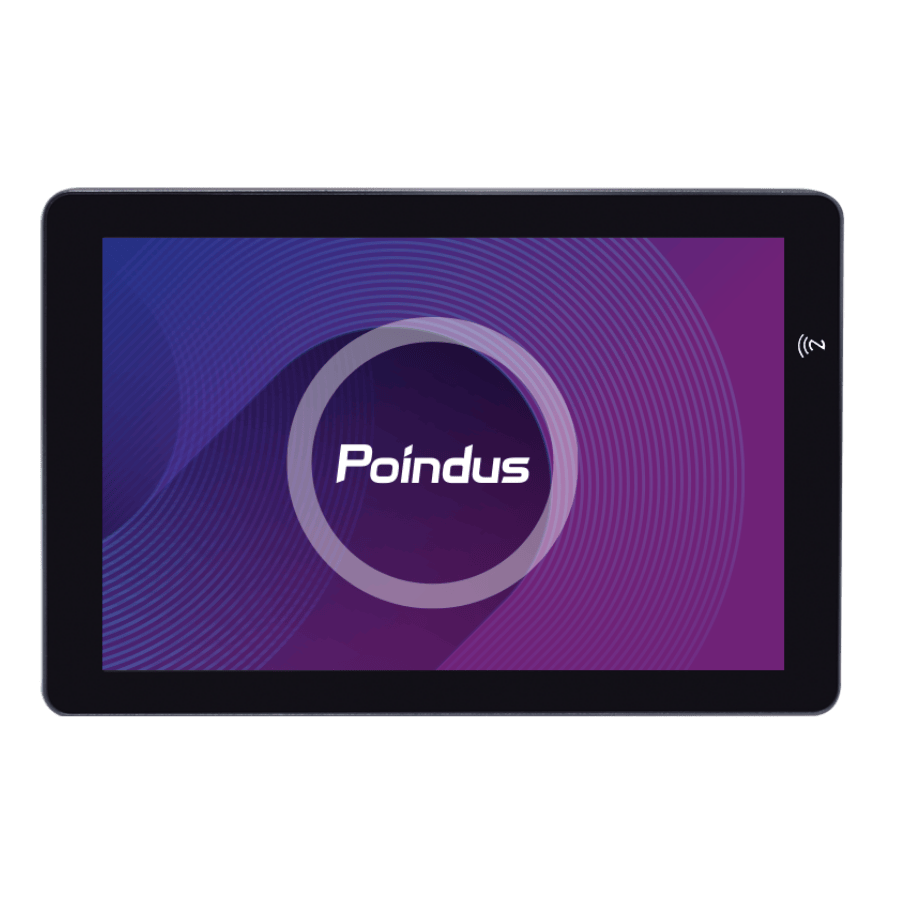

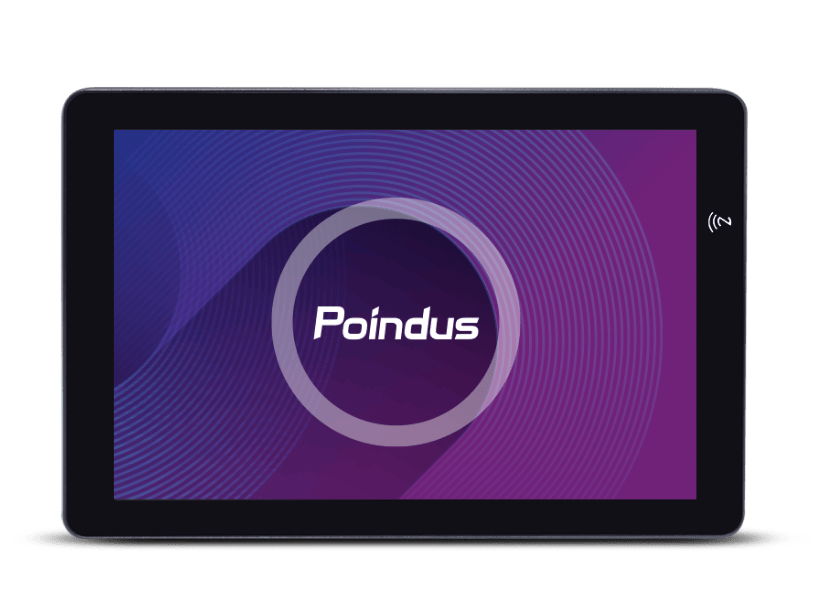

M185
Built for mission-critical operations
Features
- High Strength Glass Overlay
- DP / VGA or USB Interface
- Durable Die-Cast Aluminum Base
- Easy Installation – DP/VGA/USB Cable Required
- Spill Proof and Anti-Dust (IP54)
- Best Choice for Space Limited Retail / Hospitality Environments
- True Flat Designed to Suit Harsh Environment
- Touch Screen or Non-Touch Available
- VESA, Pole or Base Stand Available
Product Highlights
10.1″
1280 X 800
IP54
Resistance
Support NFC
VESA
compliance
75*75
Easy Installation
DP/VGA/USB
Touch Screen or Non-Touch Available

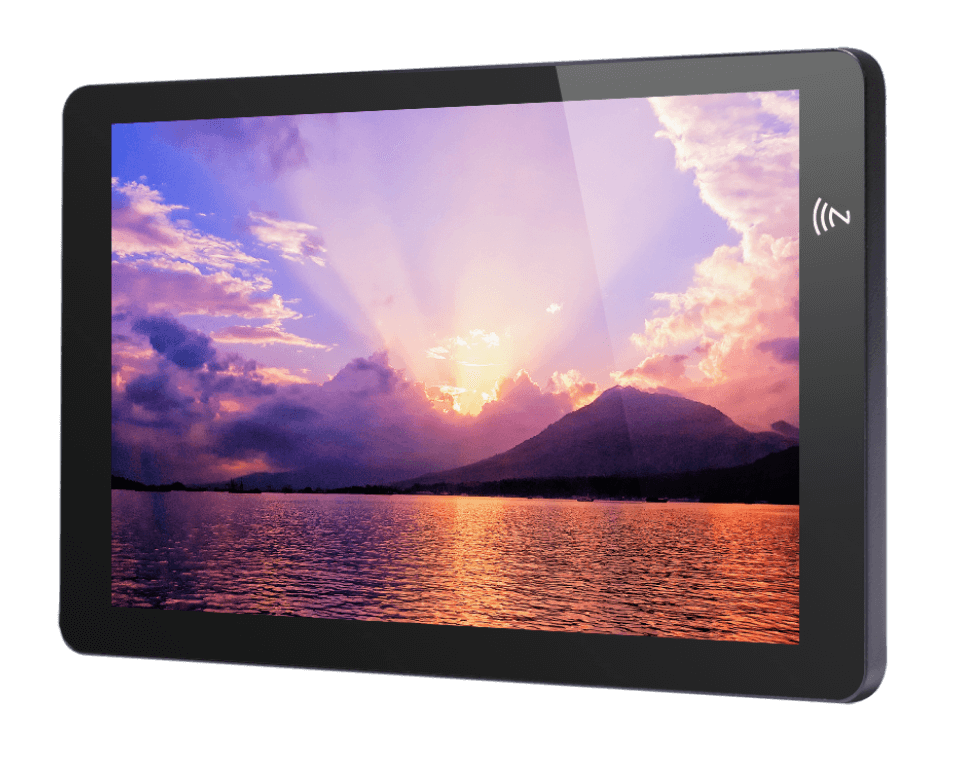

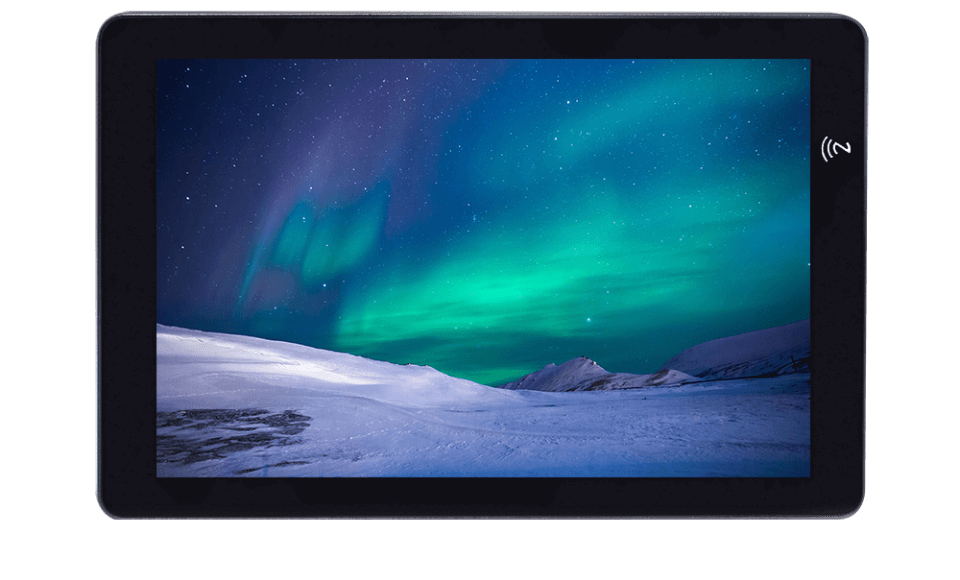

Compact Screen with Smooth Interaction
Display with High Strength Glass gives a large viewing angle and more accurate color reproduction.
10.1″
16:10
1280 x 800
Resolution
10 Points
Projective Capacitive
350
cd/m²
Rugged IP54 True-Flat Display for Retail & Hospitality
Poindus M185 is a rugged 10.1″ true-flat display built for retail and hospitality integration. It features versatile connectivity (DP, VGA, USB, USB-C), optional P-Cap touch, and flexible mounting options. With IP54 protection, wide viewing angles, and peripheral support, it delivers reliable performance in demanding environments.

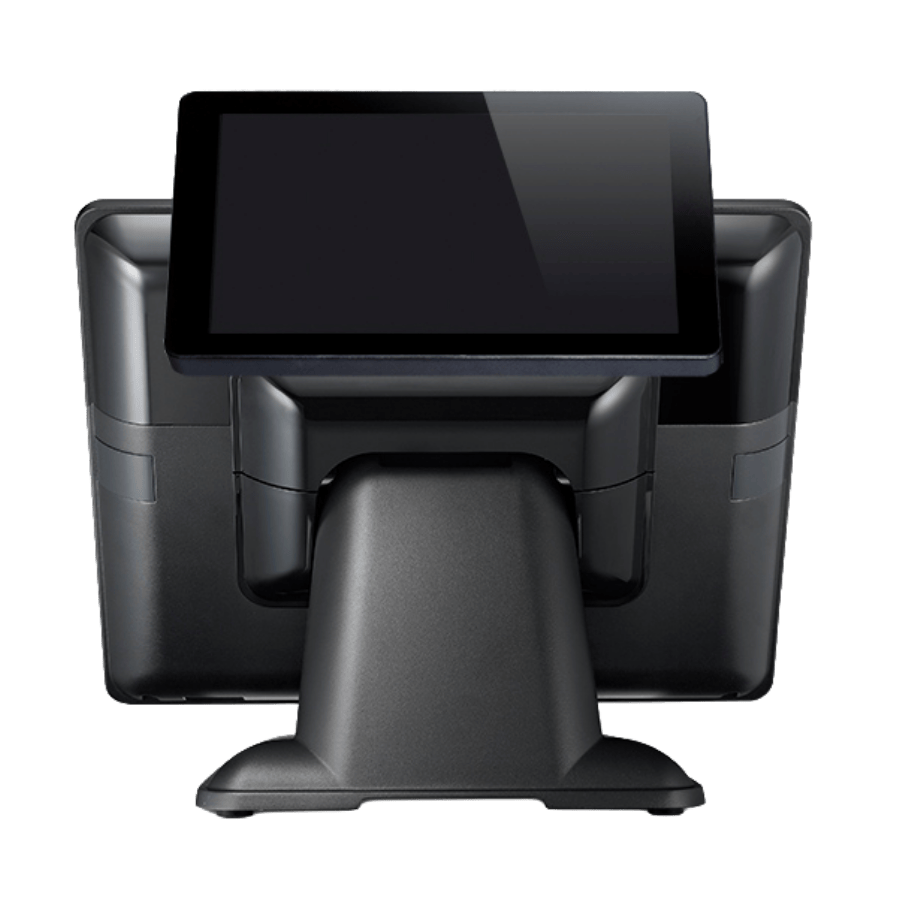

SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.

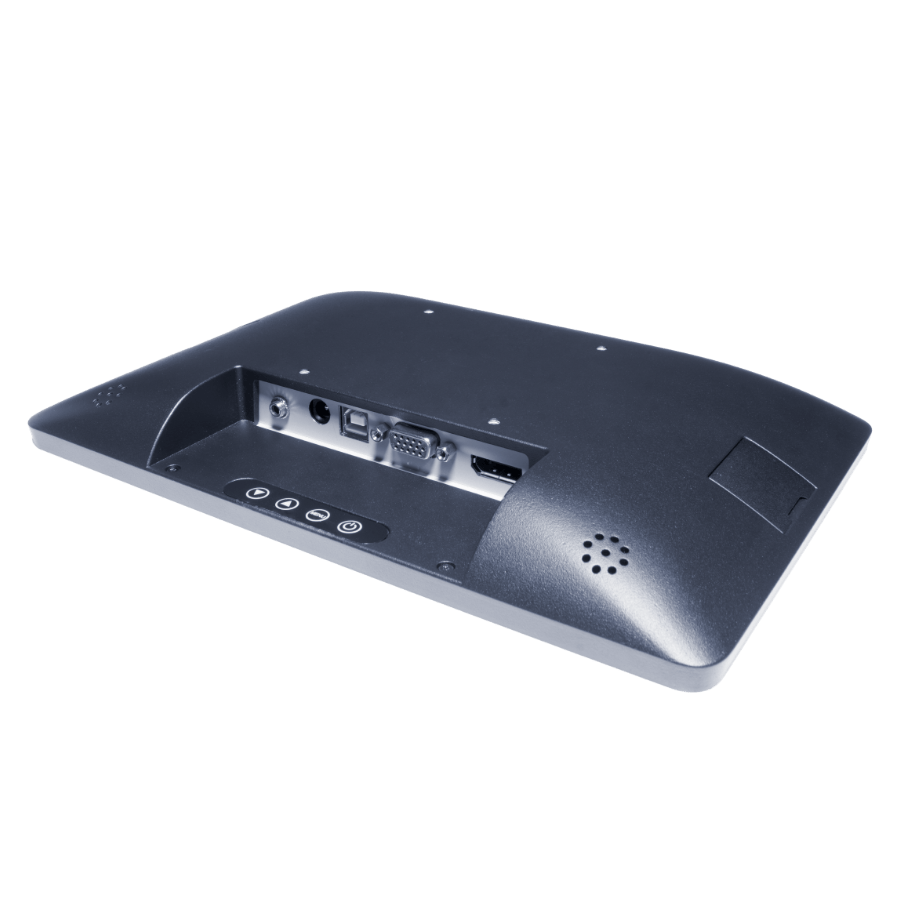

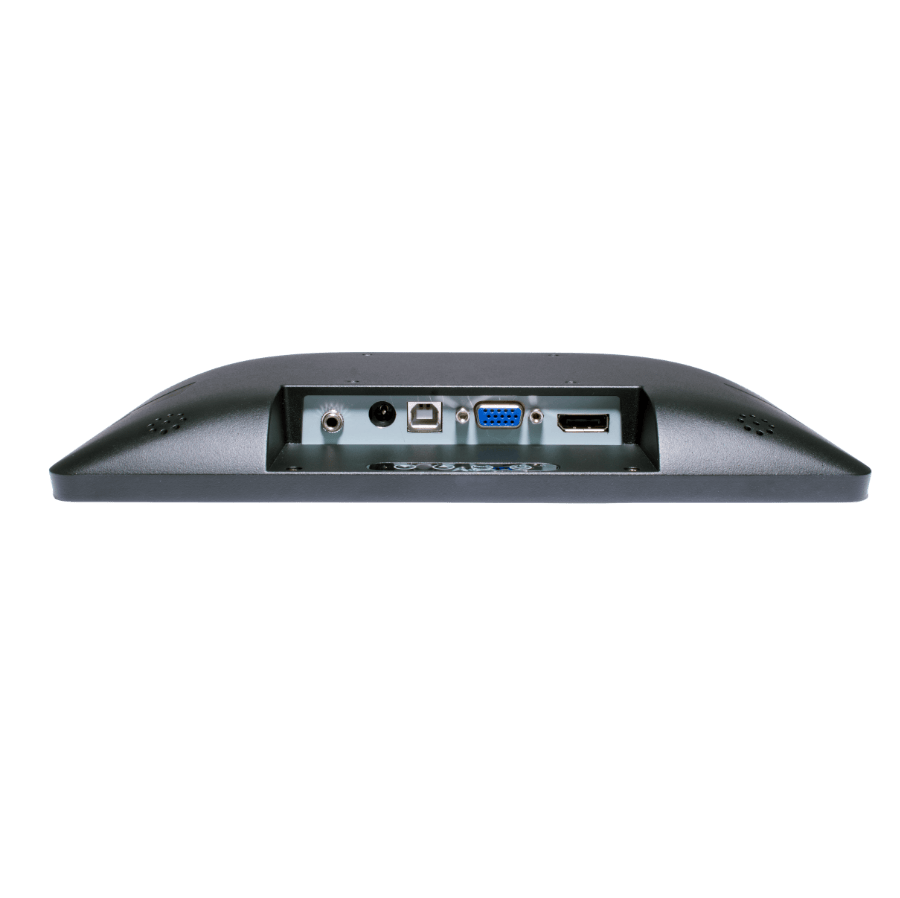

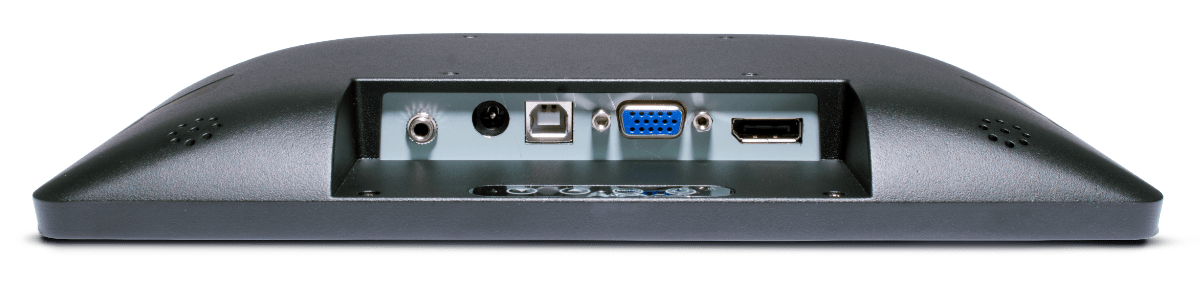

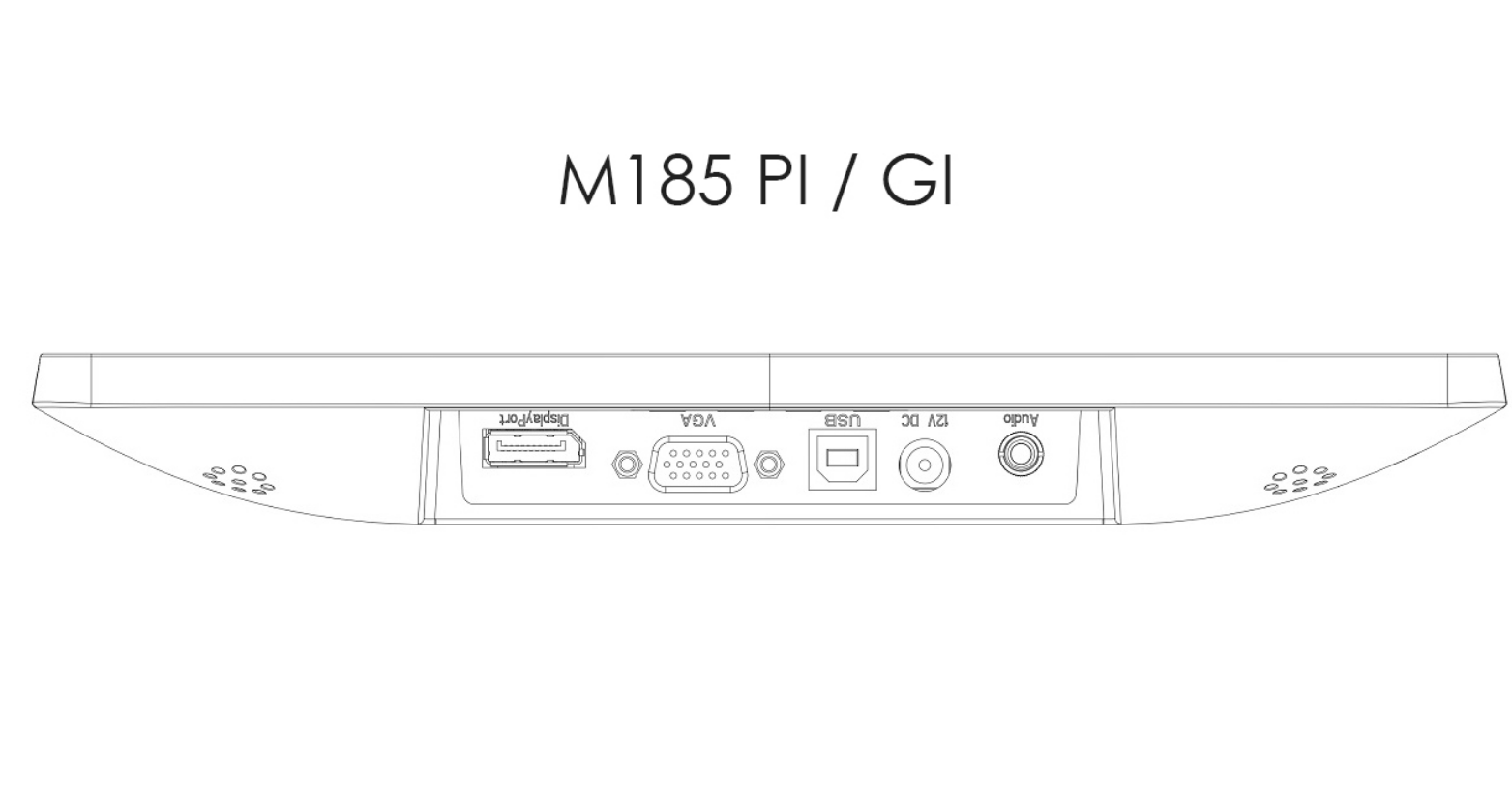

Easy Installation
DP / VGA / USB
The Poindus M185 adapts seamlessly to diverse retail and hospitality applications—from shelf‑mounted displays and price checkers to rear POS customer‑facing screens. Its rugged design, flexible mounting, and connectivity options make it ideal for enhancing customer engagement and streamlining workflows.

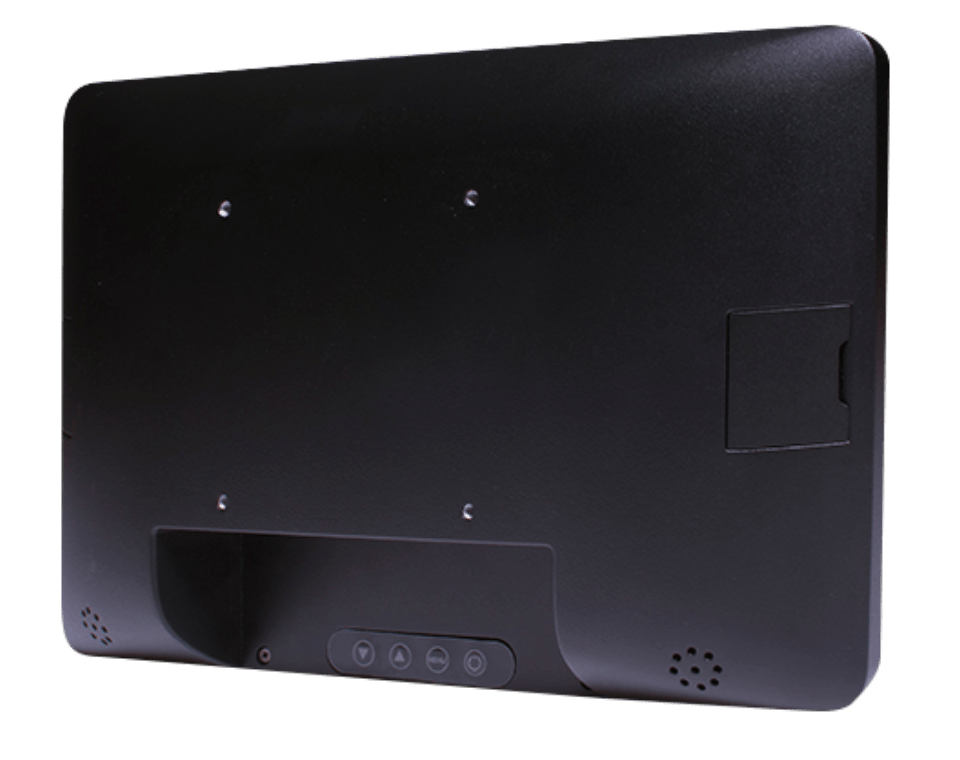

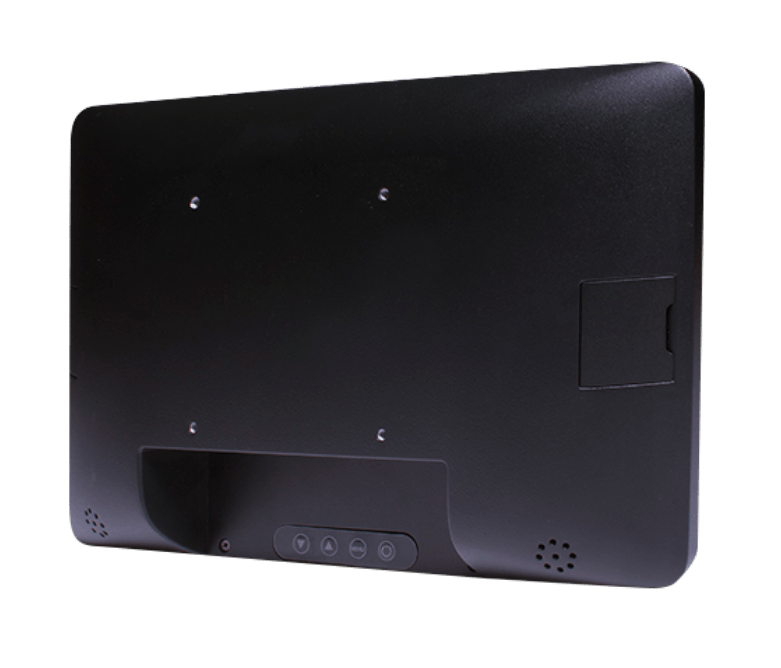

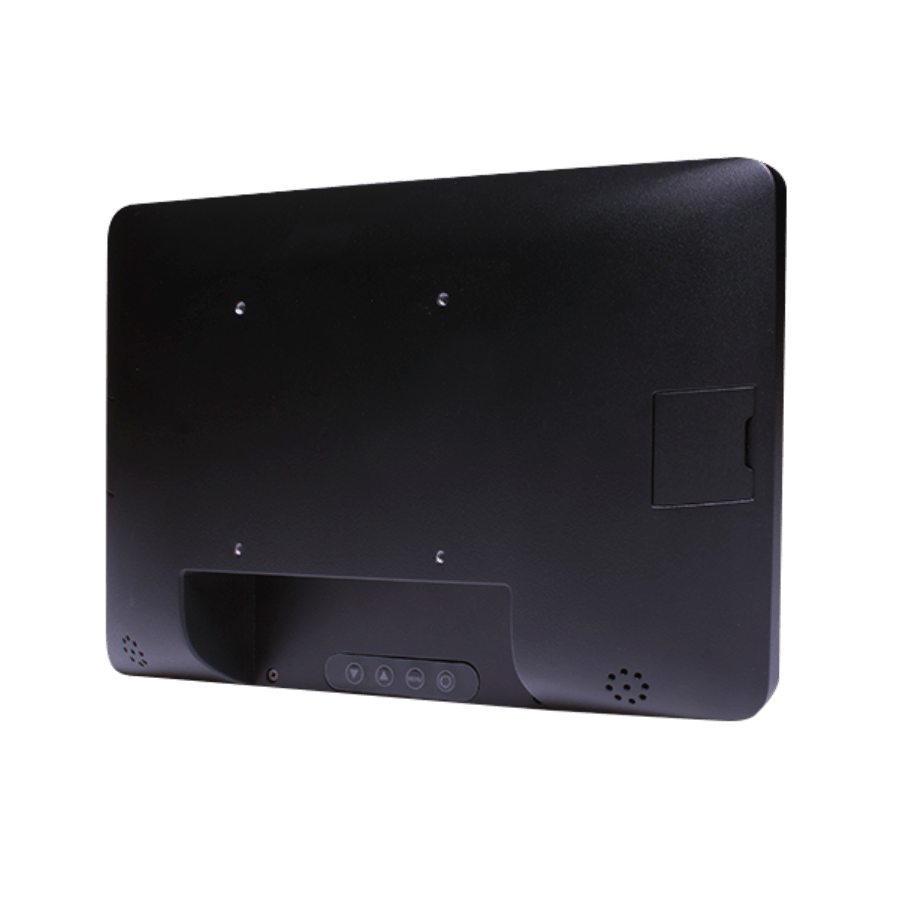

VESA compliance
75*75

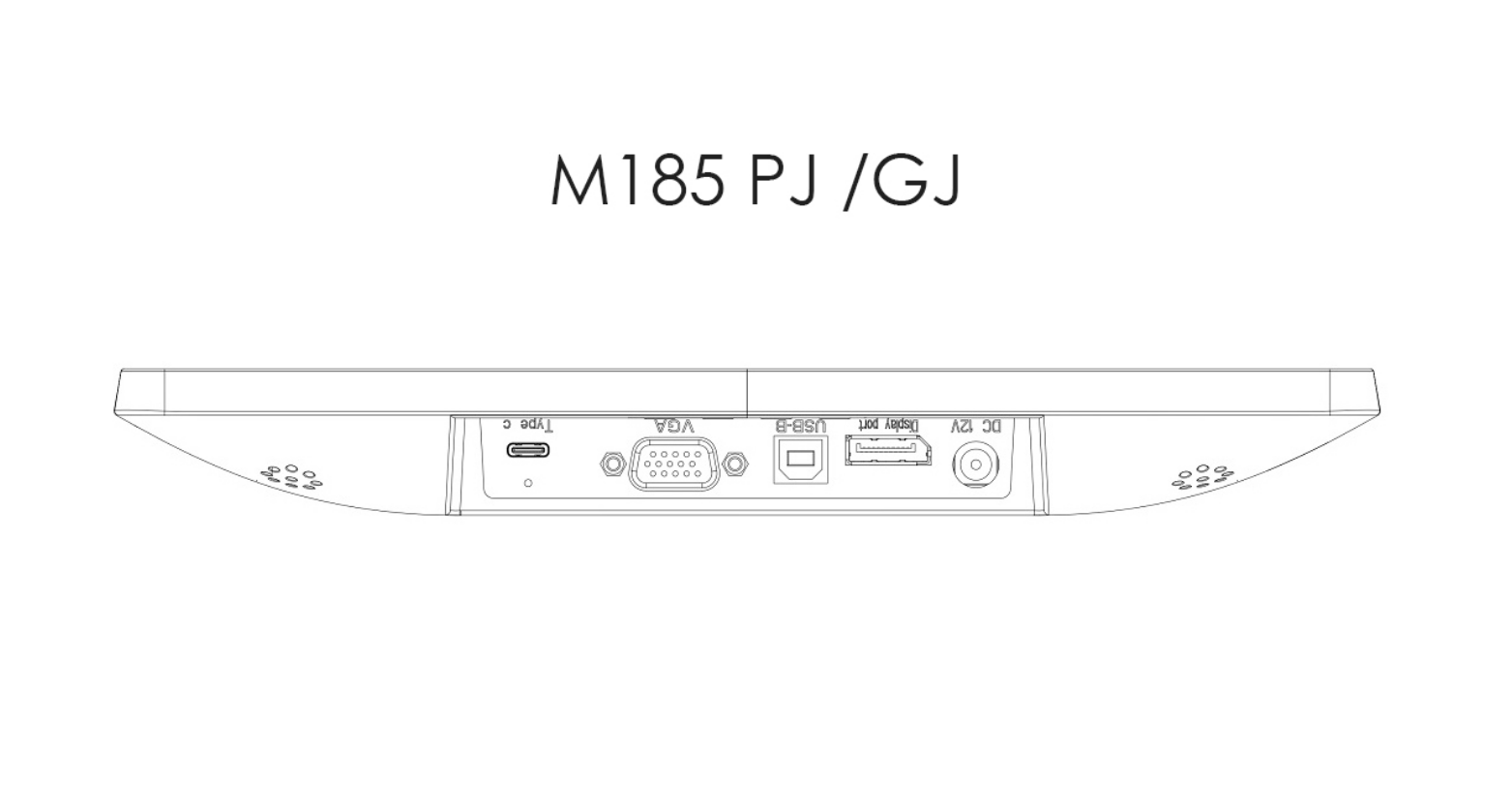

schematic

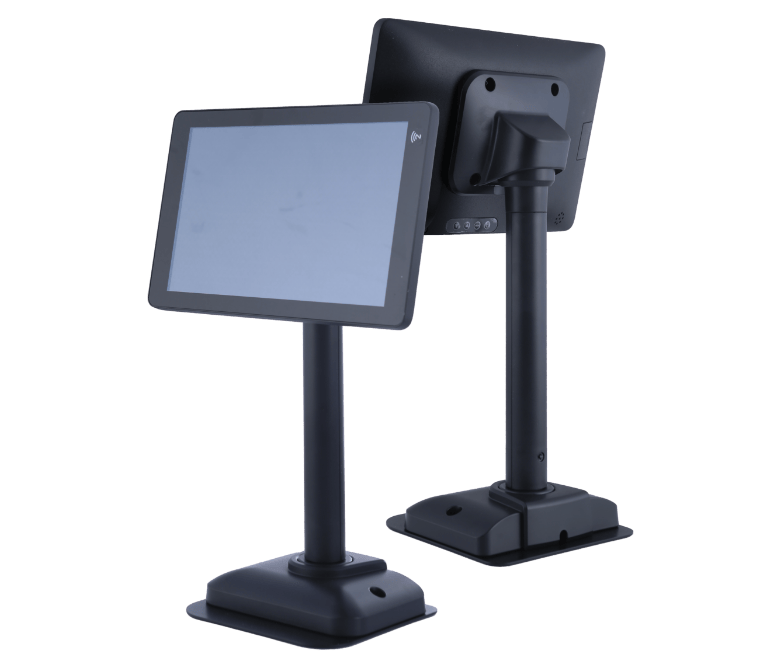

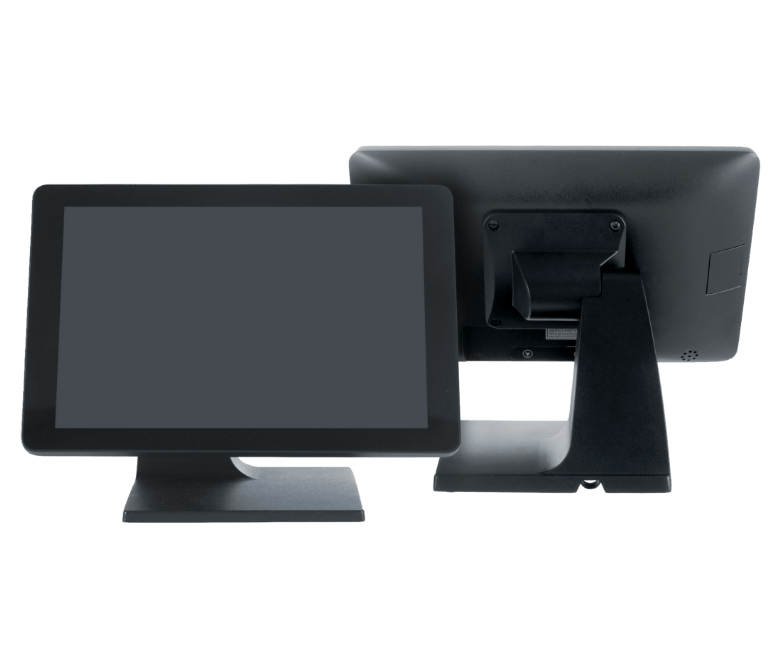

Versatile Mounting Solutions
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario.

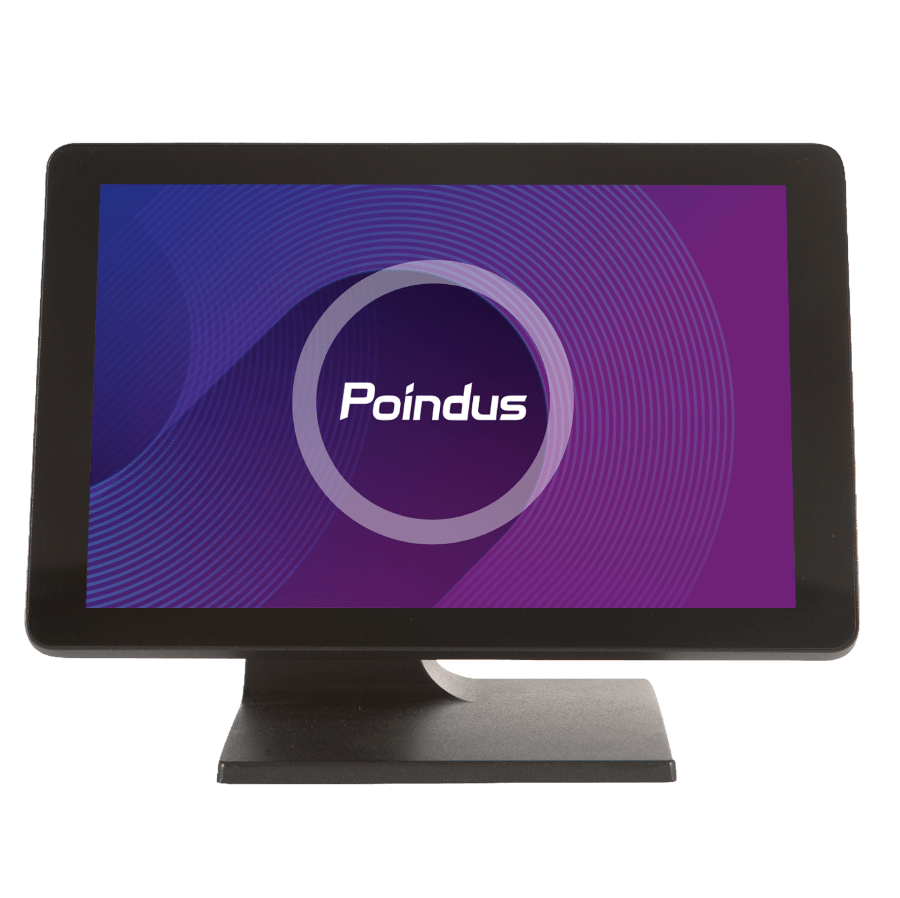

Durable Die-Cast Aluminum Base
Pole Mount
Option
Wall Mount Available
Durable Die-Cast Aluminum Base
Pole Mount
Option
Wall Mount Available
Photo Gallery
Specification
M185
M185
| Description | M185 PC: 10.1″ True Flat P-Cap Display M185 PI: 10.1″ True Flat P-Cap Display M185 PJ: 10.1″ True Flat P-Cap Display M185 GC: Non Touch M185 GI: Non Touch M185 GJ: Non Touch |
|---|---|
| Display size | 10.1″ (16:10) |
| True-Flat | Y |

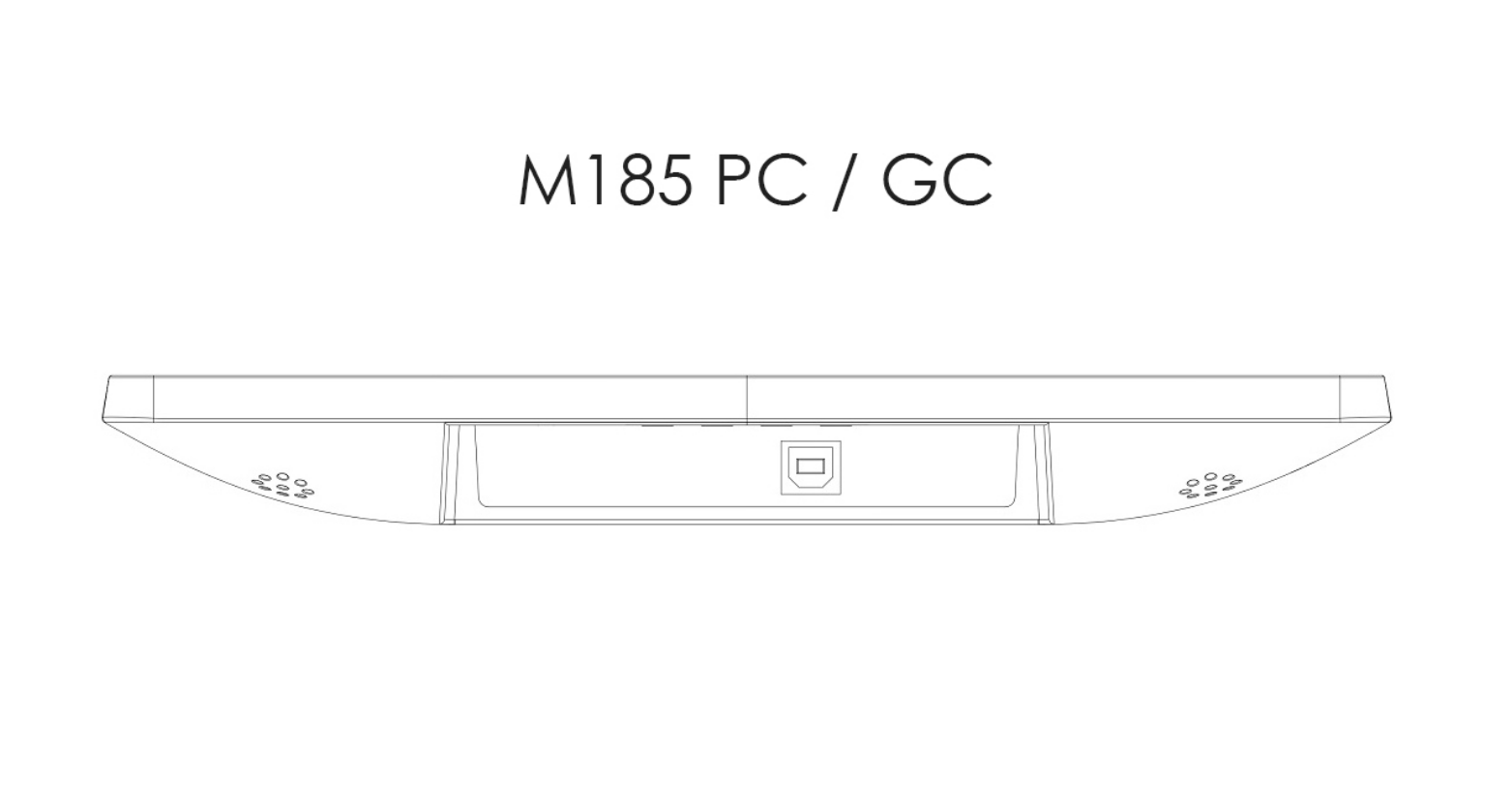

| Interface | M185 PC: USB M185 PI: VGA/DP M185 PJ: USB-C/DP M185 GC: USB M185 GI: VGA/DP M185 GJ: USB-C/DP |
| Optimal Resolution | 1280 x 800 |
| Viewing angle | 170 degrees (H) ; 170 degrees (V) |
| Brightness (Panel) | 350 |
| Contrast Ratio | 800:1 |
| Response Time (ms) | 25 ms (typ) |
| Power supply | M185 PC: DC 5V M185 PI: DC 12V M185 PJ: USB-C 5V / DC 12V M185 GC: DC 5V M185 GI: DC 12V M185 GJ: USB-C 5V / DC 12V |
| Active Area | 216.96 (H) x 135.60 (V) |
| Color Arrangement | RGB-stripe |
| Touch type | True Flat P-Cap Technology |
| Optional peripherals | 2D scanner, USB Type RFID reader, 13.56MHz, USB Type |
| Physical Dimension (WxHxD mm) | 260.2 x 168.3 x 30 mm |
| Operating Condition | Temperature: 0°C ~ 40°C Humidity: 20% ~ 80% RH, non-condensing |
| Storage Condition | Temperature: -10°C~50°C Humidity: 10% ~ 90% RH, non-condensing |
| Certifications EMI/Safety | CE, FCC, LVD |
| Wall Mount kit | VESA 75 x 75 |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
