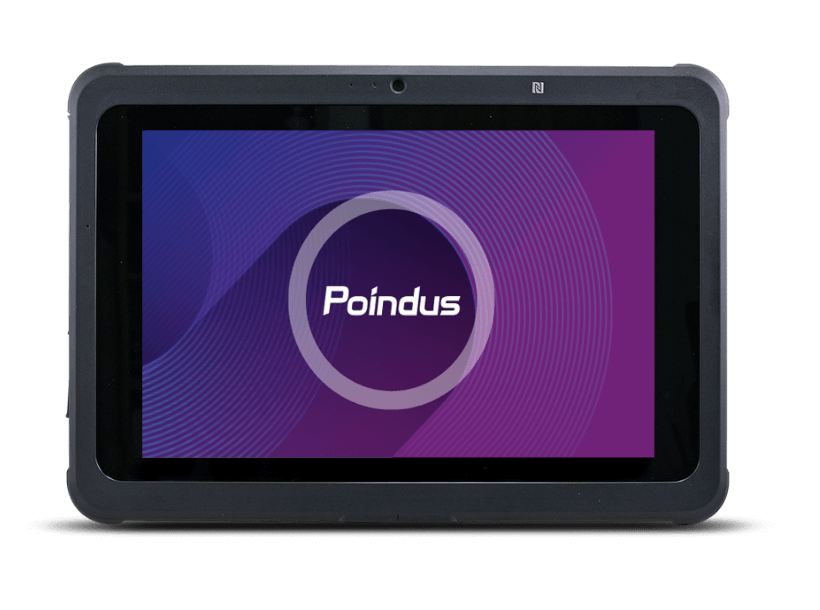

iRugged A10
Features
- Semi-rugged design with Intel Celeron.
- MIL-STD-810G & IP65 certified, 4-feet drop resistance
- 10.1” TFT color LCD 1280 x 800 HD.
- Corning Gorilla Glass, 10 point projected capacitive multi- touch panel.
- High mobility with multiple connectivity including WLAN, Bluetooth, NFC.
- Light Design, Weight only 1Kg with Battery.
- G-sensor, light sensor, 2M/8M Camera (Option 1D/2D Barcode scanner).
Product Highlights
10.1"
1280 X 800 HD Screen
IP65 Resistance
Strong Performance
4-feet
drop resistance
MIL-STD-810G
certified
Light Design
1 Kg
with Battery
Advanced Cooling
Design
1/0 & Expansion

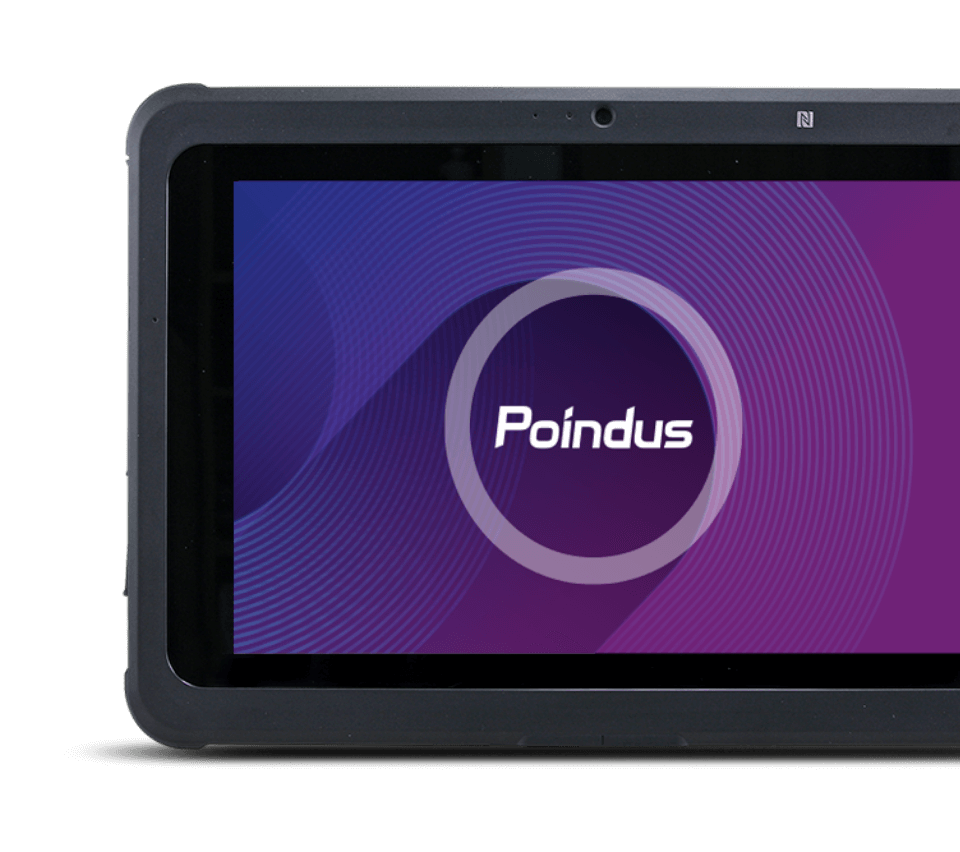

Strong yet Big Screen with Smooth Interaction
10.1″
LCD
1280 x 800
Resolution
10 Points
Projective Capacitive
300
cd/m²
All-in-One Connectivity, Built In
The iRugged A10 integrates essential connectivity and data capture features into a single rugged tablet – ideal for mobile and on-site operations.
Wireless Connectivity
Wi-Fi, Bluetooth, NFC
Barcode Scanner
2MP Rear
Camera
8MP Front
Camera
Built for mission-critical operations in tough environments
Rated IP65 protection for dust and water from any direction.The iRugged A10 tablet is also designed to be shock-resistant. It has been drop-tested to withstand falls from up to 4 feet, offering protection from accidental drops.
IP65
Spill Proof
MIL-STD-810G
certified
4-feet drop
resistance
strong yet slim
and light Design.
with Battery
iRugged A10 Power & Performance
Powered by the energy efficient Intel Celeron N3350 delivers Dual-Core performance, extraordinary battery life, and Secure Boot for enhanced system security,
Optimized for Windows 10 with fast start-up times and smoother multitasking.

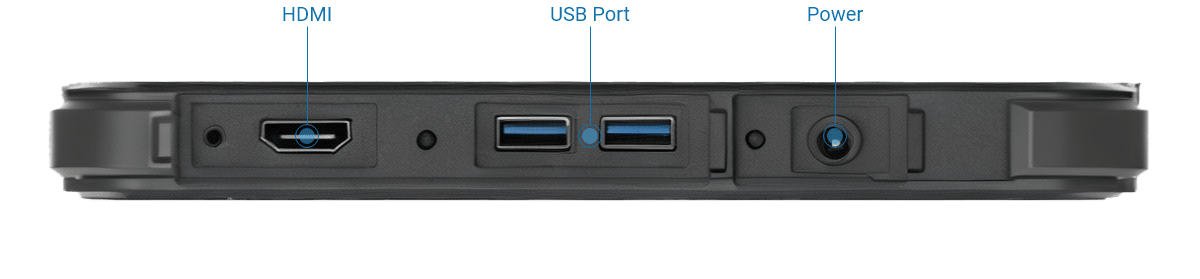

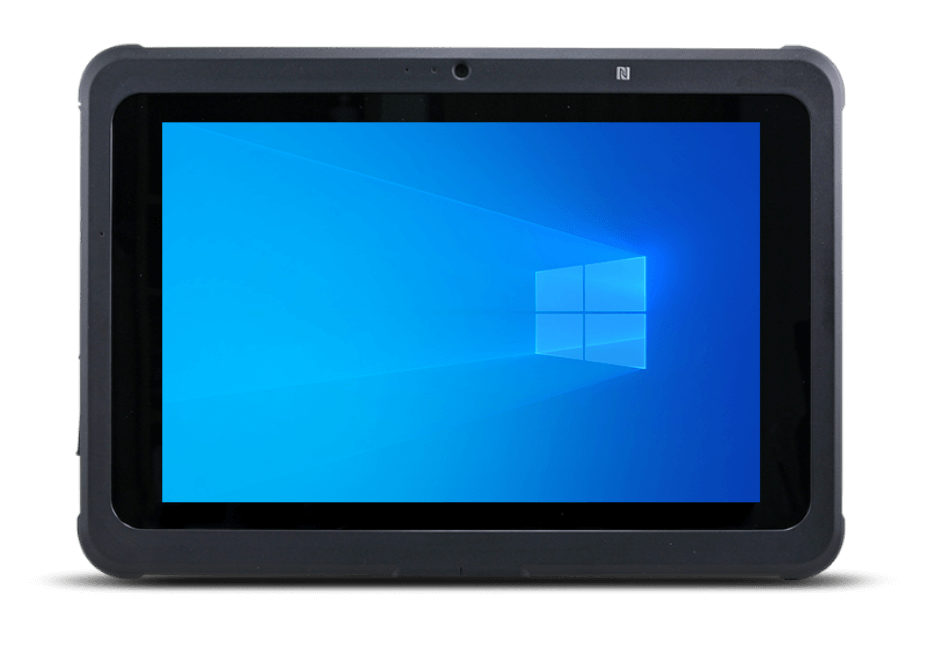

Seamless Integration

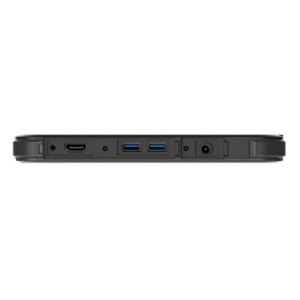

I/O & Expansion
A Rugged Tablet that Meets the Demands in any Scenario
The iRugged A10 is designed to withstand harsh conditions that are common in busy retail or hospitality environments and even light warehousing and logistic industrial environments.

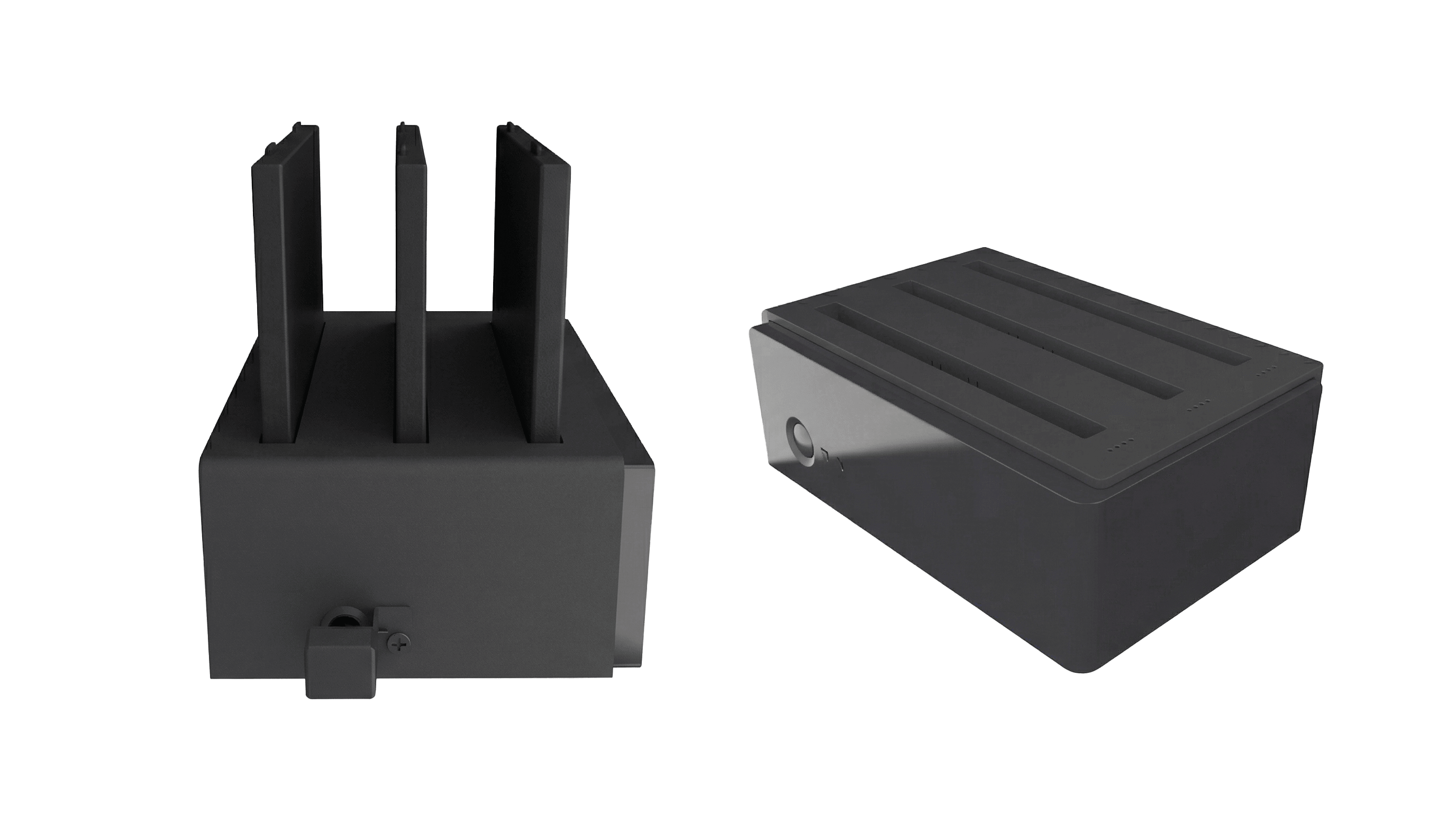

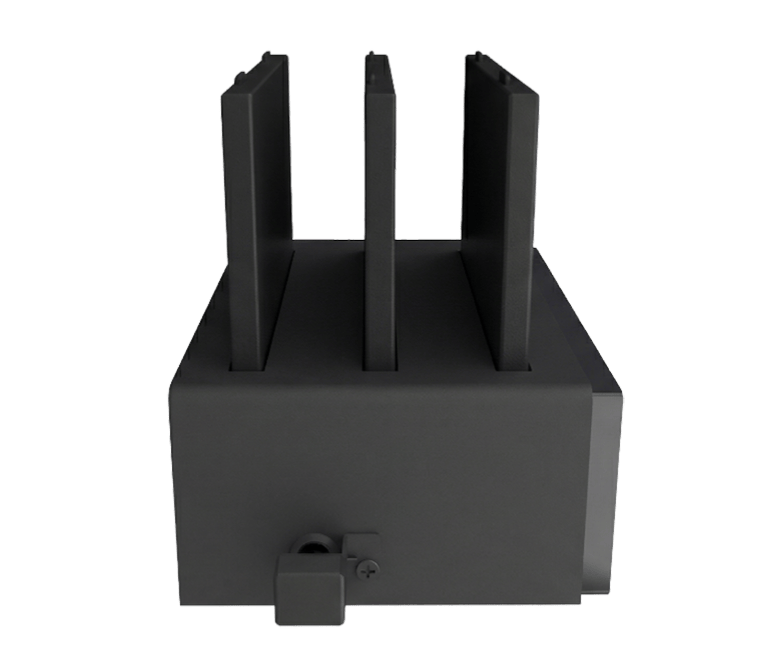

Swappable Battery for 24/7 Operations

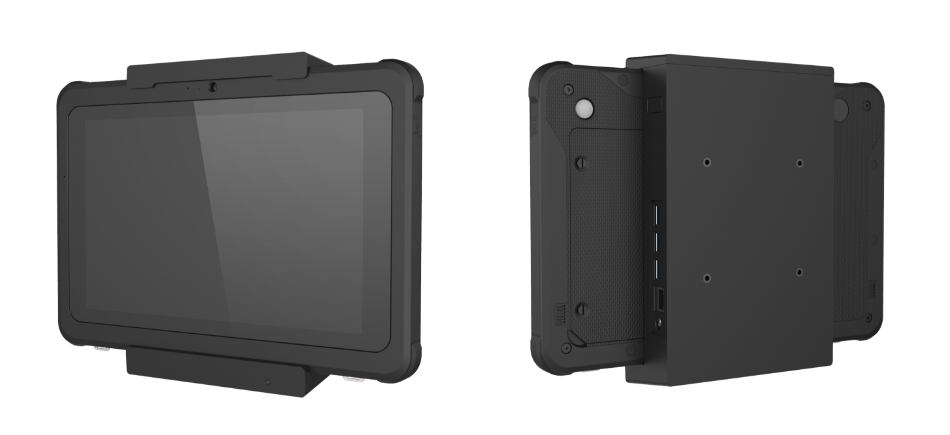

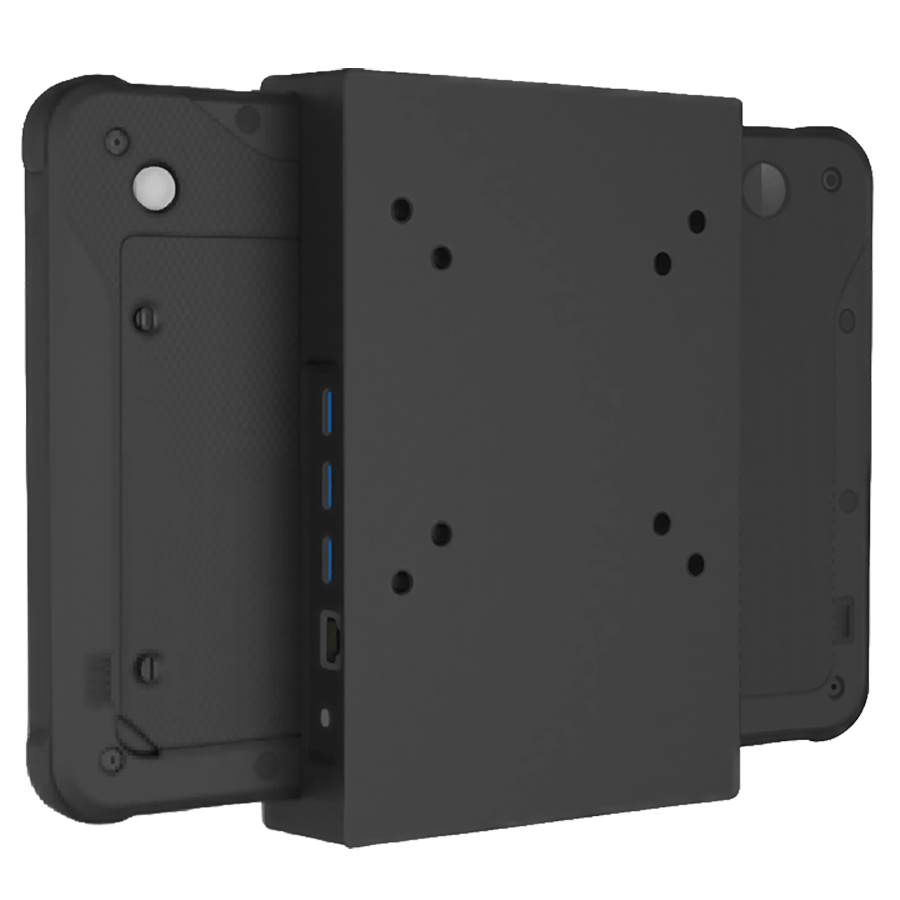

Versatile Mounting Solutions
Various choices of accessories that can help your daily business.

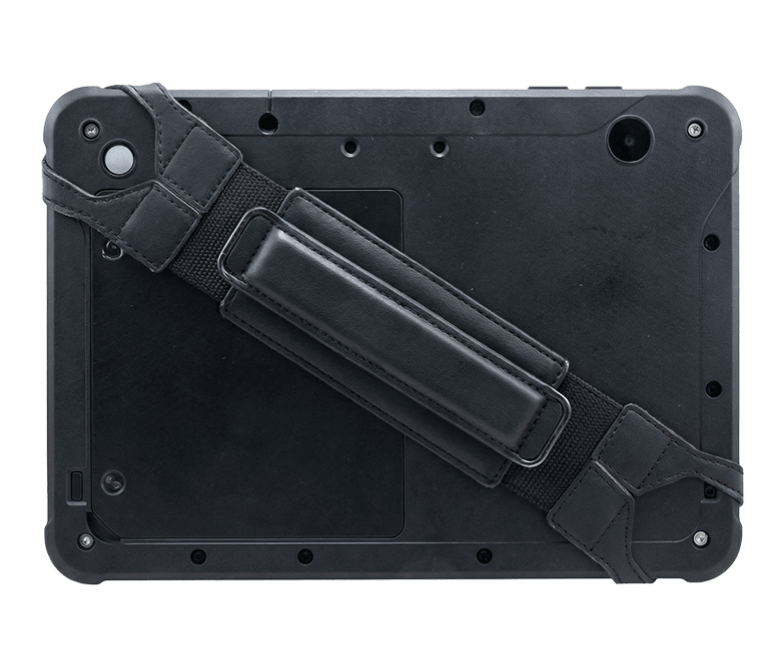

Optional Accessories for More Efficient Operations

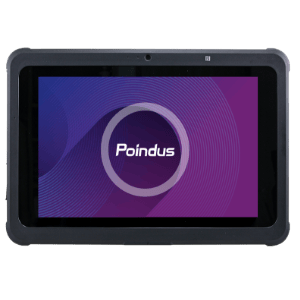

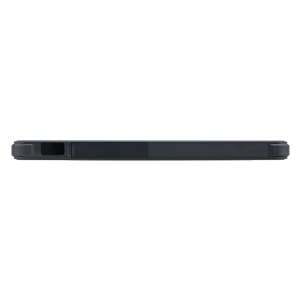

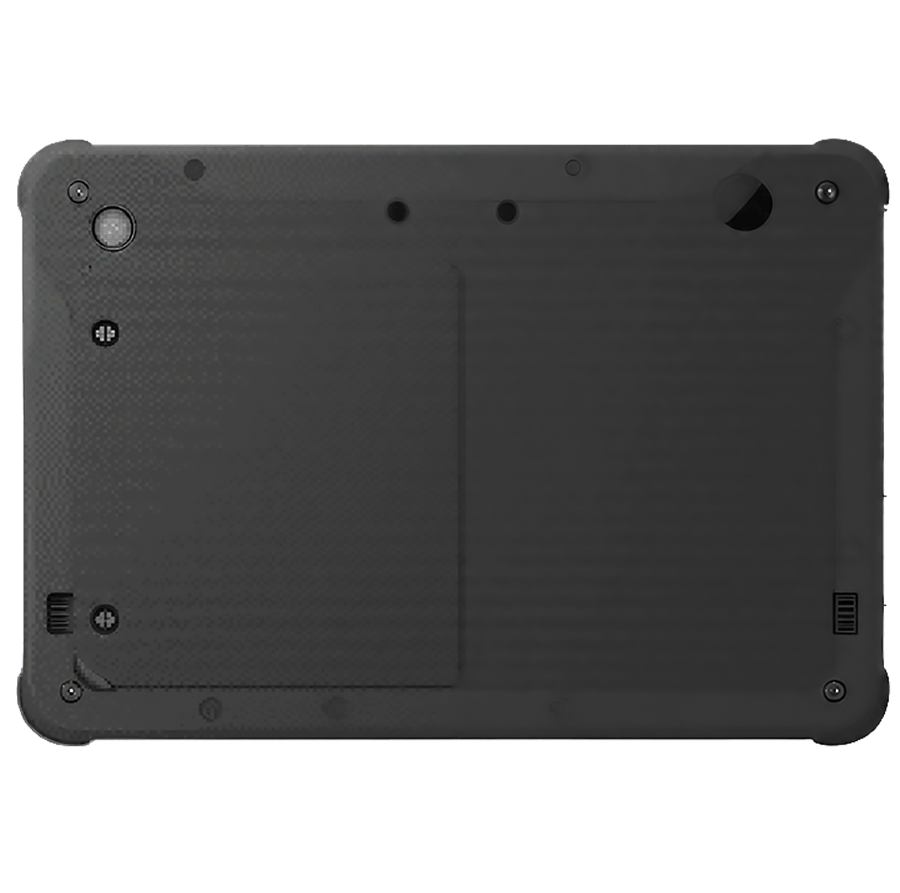

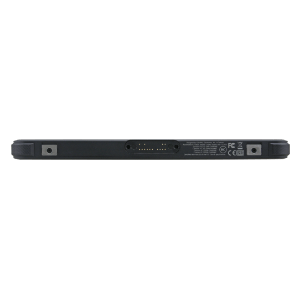

Photo Gallery
Specification
| System Information | Processor System Memory |
|---|---|
| Storage | Solid State Drive M.2 128GB Solid State Drive |
| Display and Touch | – LCD Size: 10.1″ – Display Type: WXGA – Resolution: 1280 x 800 – Luminance: 300 cd/m² – Touch Type: 10 Points Projective Capacitive |
| I/O | – USB Port: 2 x USB 3.0 Type A – HDMI: 1 x HDMI Output – Other: 1 x Audio Jack, 1 x Micro SD, 1 x DC Jack |
| System Control | – LED Indicator: 1 x Power – Control Buttons: 1 x Power Button, 1 x Barcode Scanner Trigger |
| Data Collection | – Camera: 2MP Front Camera, 8MP Rear Camera With Auto Focus – NFC: ISO/IEC 14443 A/B, 15693/18092, NFCIP-1, NFCIP-2, Support MIFARE and Felica – Barcode Scanner: 1D/2D Barcode Scanner (Optional) |
| Wireless | – WLAN: 802.11 a/b/g/n/ac – Bluetooth: Bluetooth 5.0 |
| Certifications | Japan VCCI / MIC Taiwan BSMI / NCC USA FCC UK UKCA EU CE / RED / EN60601-1, EN60601-1-2: Compliance: Costa Rica Egypt Hongkong Sri Lanka |
| Power Requirement | – DC Input: +19V – DC Input Connector: DC Jack – Adapter: Input: 100~240Vac/50~60 Hz, Output: 65W Adaptor (19V@3.15A Adaptor) – Battery Operating Time: 6 Hours – Battery: 28.44W Li-ion Battery |
| Mechanical & Environmental | – Operating Temperature: 0°C to 40°C (32°F to 104°F) 0°C to 30°C (32°F to 86°F) without dock or wall mount [EN60601] 0°C to 40°C (32°F to 104°F) with dock or wall mount [EN60601] – Storage Temperature: -20°C to 60°C (-4°F to 140°F) – Operating Humidity: 15%~95% Relative Humidity, Non-Condensing – Weight: 1Kg – Vibration Test: MIL-STD-810G Method 514.6 Procedure 1 – Shock Test: MIL-STD-810G Method 516.6 Procedure 1 – IP Rating: IP65 – Dimension: 281 x 193.3 x 19.95mm – Storage Humidity: 5%~90% Relative Humidity, Non-Condensing – Drop: 4-Feet Drop on Concrete Floor, MIL-STD-810G 516.6 Procedure IV – Construction: Rubber + Plastic |
| Software | OS Support: Windows 10 IoT 64bit |
| In-Box Accessory | Accessory: +19V 65W Power Adaptor |
| Component | Microphone: Front Microphone |

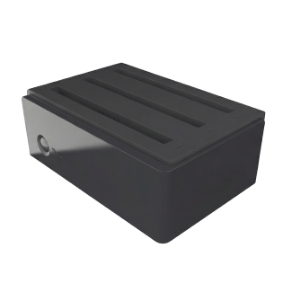

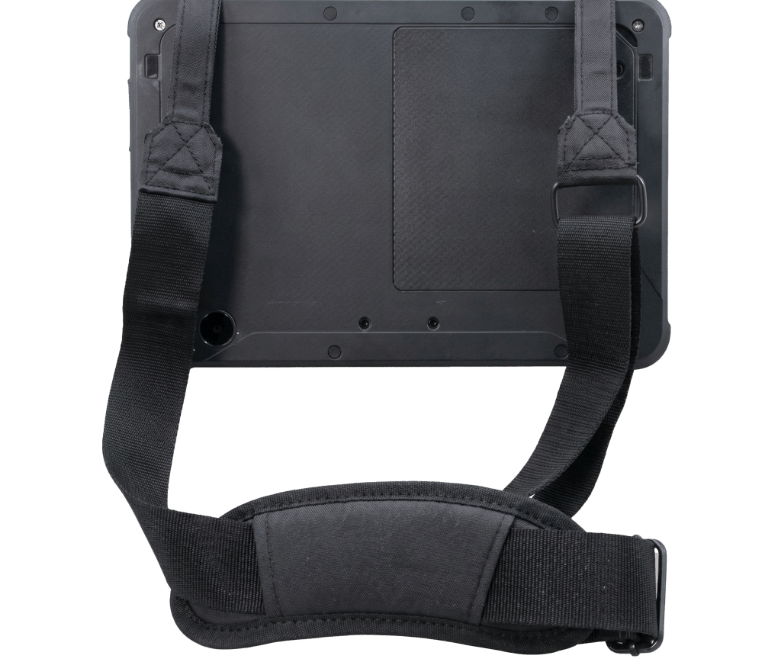

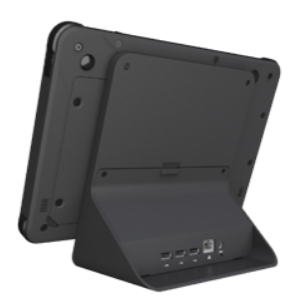

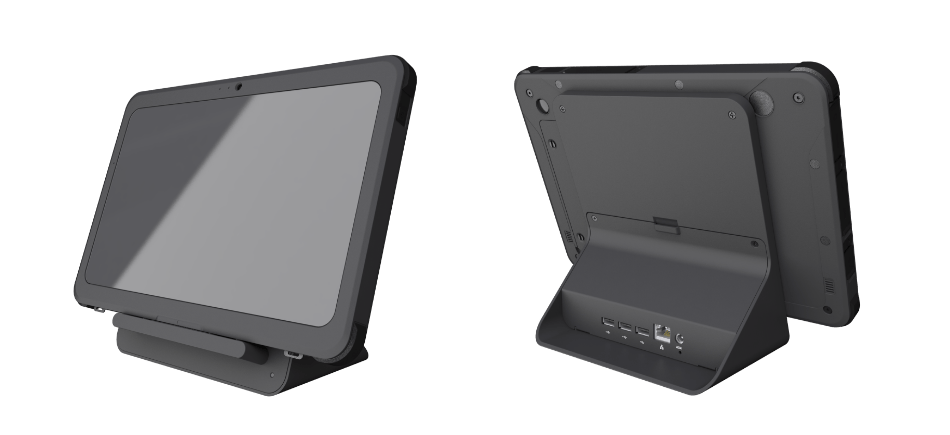

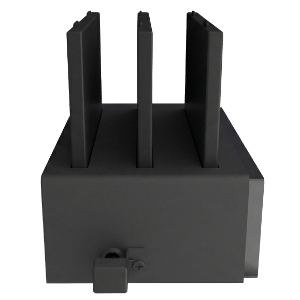

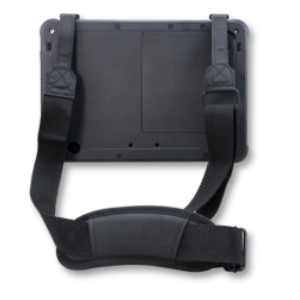

| Option Peripherals | – Desktop cradle / USB2.0x3 / LAN / DC19V, without Adapter – Wall Mount kit / USB2.0x3 / LAN / DC19V, without Adapter – Battery charging station, DC19V/65W Adapter – Shoulder Strap |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
