Powerful Performance
Sopports Celeron to Intel 12th Gen. Core i3/i5
PT58 Family
Tough. Stable. Powerful.
Retail Ready Performance
Space Saving POS Solution for Modern Retail
High performance POS with advanced thermal management combined with a modern ultra-slim bezel design, the PT58 boasts a stunning widescreen display that seamlessly integrates style and functionality. The sleek Full HD widescreen format allows System Integrators to create complex interfaces tailored to the specific needs of retail and hospitality applications.
Features
- Aluminum die-casting structure for strong & stable operation.
- Easy access/service M.2 SSD cover.
- Rubber gasket frame sealing front bezel design for IP65 resistance.
- Comprehensive dual-side mounting support of peripherals.
- Innovative heat-dissipation fan-less operation design.
- 4.8mm Super Slim Edge Bezel.
- VESA 75 for Pole/Wall Mounting.
- Supports USB-C for function expansion ( VariIO I / O Box )
- Extendable IO capability meets any project specification ( VariIO I / O Box )
Product Highlights
Advanced
Thermal Design
15.6''
Stunning Display
IP65
Proof
Optional Stands to Fit Every Setup
PT58A
PT58B
PT58C
PT58D
Smart 2nd Display
SoftPOS Payment
Support
VESA-compliant
for versatile
mounting

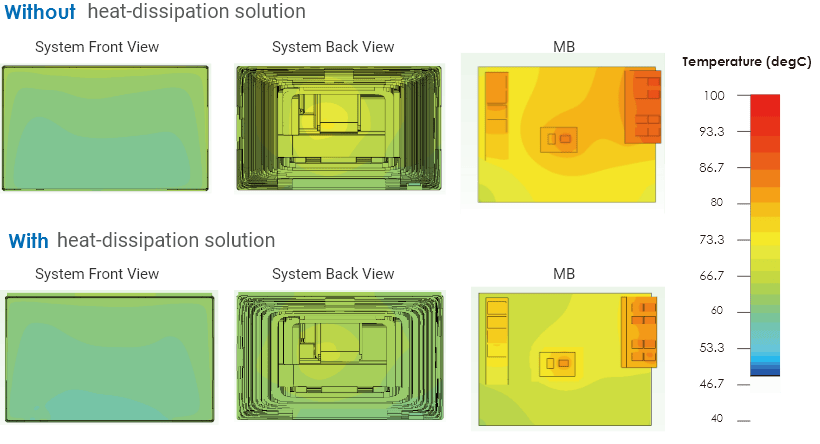

Innovative heat-dissipation Design
System Stability for Demanding Workloads
The PT58 POS Terminal showcases cutting-edge design, incorporating exceptional mechanical engineering and a groundbreaking heat-dissipation improvement of up to 12%.
These advancements significantly enhance the Mean Time Between Failures (MTBF) and overall stability of the system, ensuring uninterrupted operations even under demanding workloads.

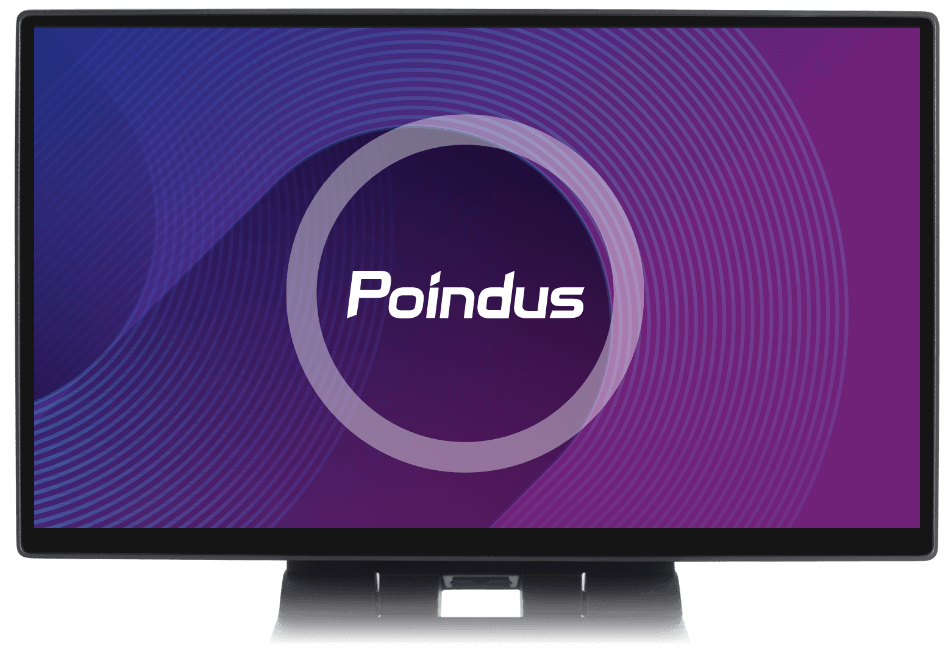

Slim. Sleek. Stunning.
15.6"
16:9 Full HD display for stunning clarity.
250 nits
brightness for optimal visibility.

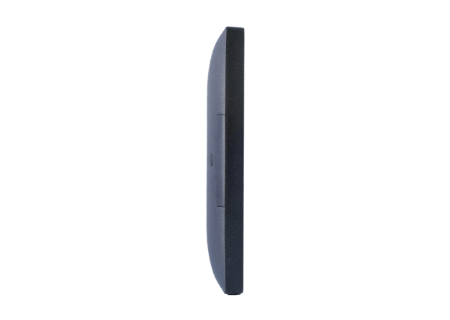

4.8mm
ultra-slim bezel design.
IP65
Ingress Protection
Easy Integration
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux
Stand & MOUNTING OPTIONS
With a choice of space-saving, ergonomic stands delivers operator comfort and functionality in space restricted scenarios and
pole or wall mounting options to meet any project requirements.

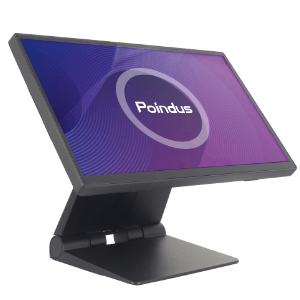

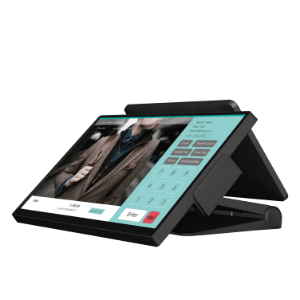

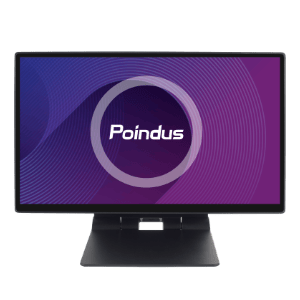

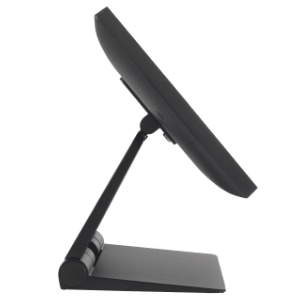

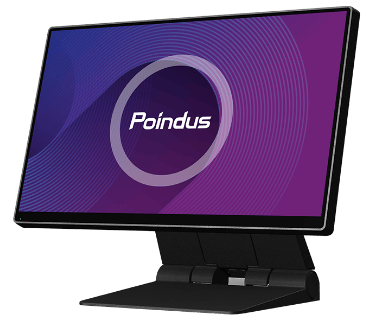

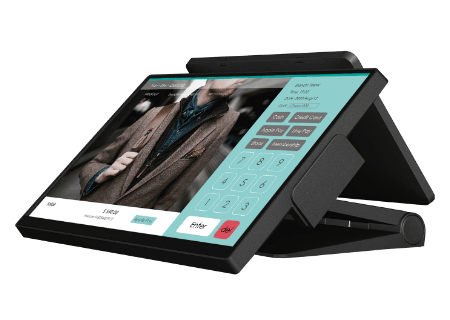

PT58A
Compact. Stable. Any Angle.

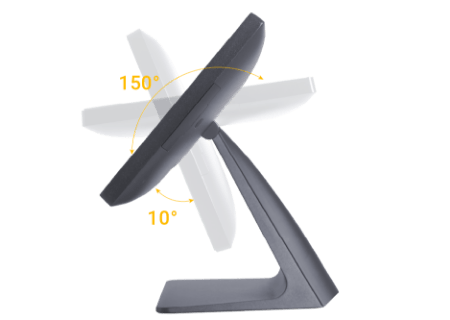

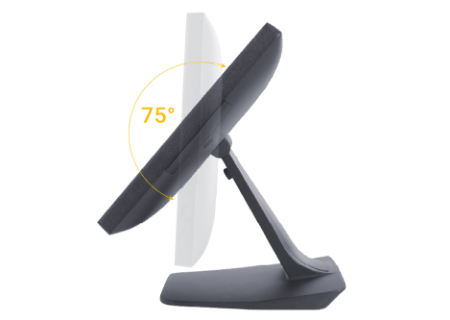

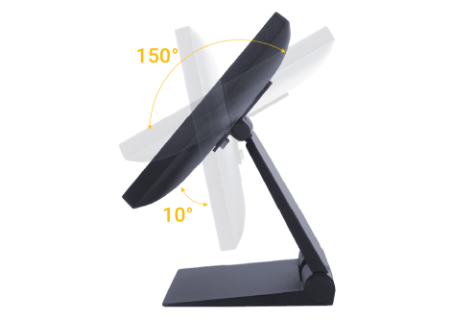

Ultra Flexible dual hinge
Ultra Flexible dual hinge
Ultra-flexible tilt range for any viewing angle. Stable, secure base for confident daily operation. Space-saving design with clean, modern aesthetics.

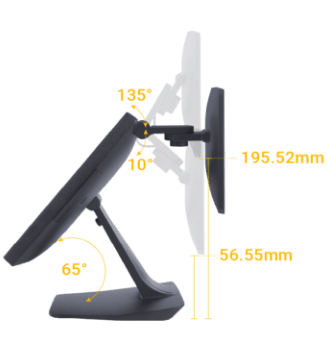

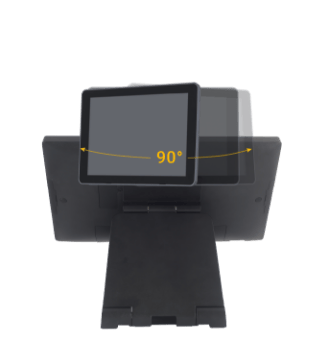

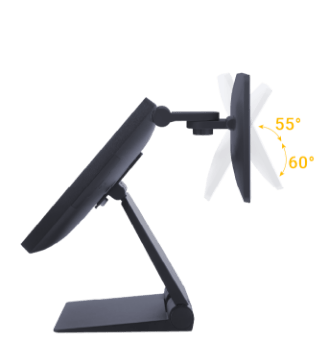

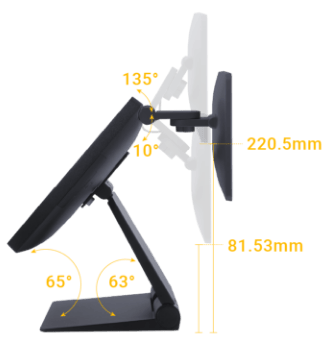

Versatile Display Adjustment for Improved Usability

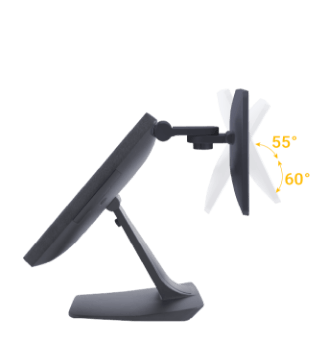

Triple-hinge 10.1” 2nd display for greater environment compatibility.
Tilt, swivel, and height flexibility for optimal viewing.

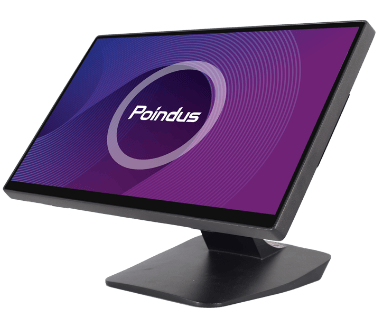

PT58B
Small Footprint. Solid Foundation.
Solid Fixed Base
Solid Fixed Base
compact base optimized for tight counter spaces. Reinforced structural design for exceptional stability.

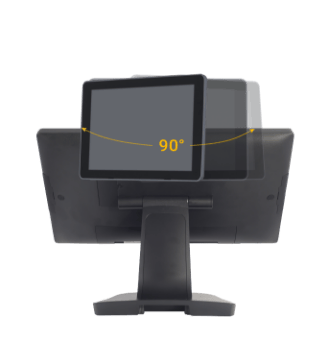

Versatile Display Adjustment for Improved Usability
Triple-hinge 10.1” 2nd display for greater environment compatibility.
Tilt, swivel, and height flexibility for optimal viewing.

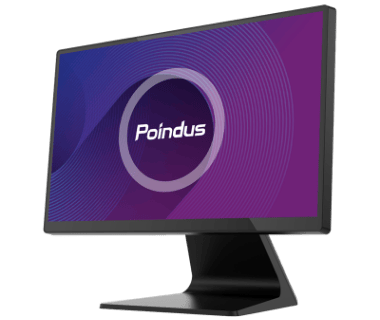

PT58C
Compact & Clutter-Free
Solid Fixed Base with cable Management
Solid Fixed Base with cable Management
Clean, clutter-free setup with Hidden cable management. Space-saving stand design with seamless aesthetics.

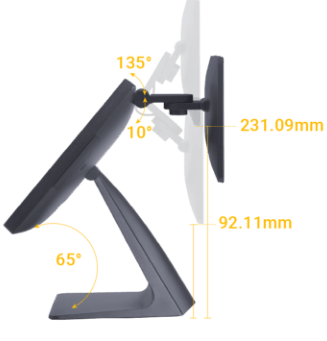

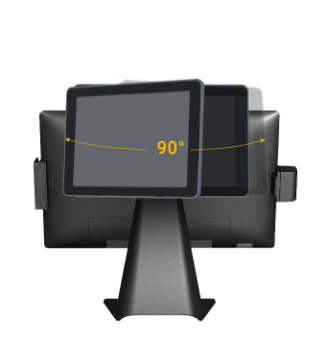

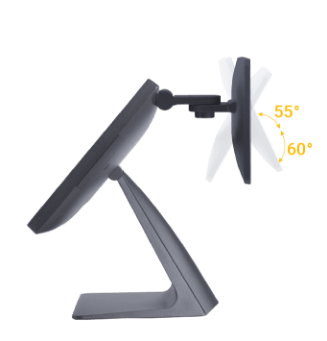

Versatile Display Adjustment for Improved Usability
Triple-hinge 10.1” 2nd display for greater environment compatibility.
Tilt, swivel, and height flexibility for optimal viewing.

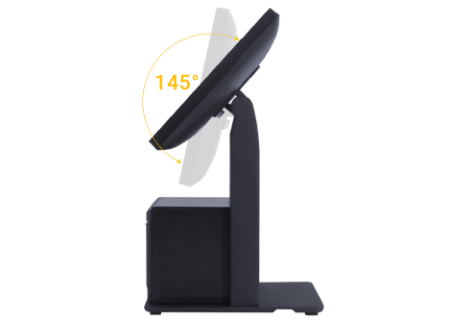

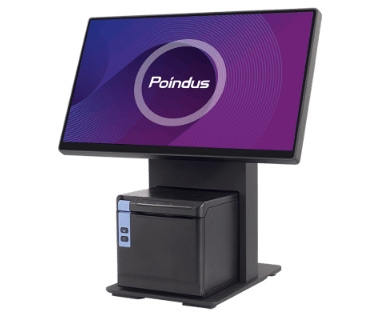

PT58D
Integration that Maximizes Space
With Integrated printer Bay & Cable Management
With Integrated printer Bay & Cable Management
Integrated printer bay for compact installation. Hidden cable management for a clean, organized setup. Space-saving stand design with seamless aesthetics.Ultra-flexible tilt range for any viewing angle. Stable, secure base for confident daily operation. Space-saving design with clean, modern aesthetics.

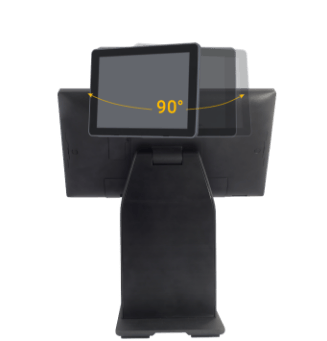

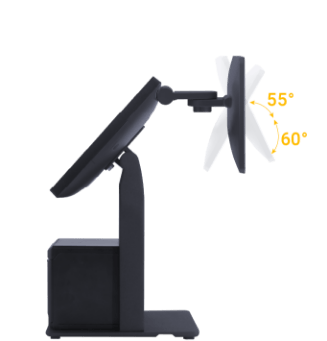

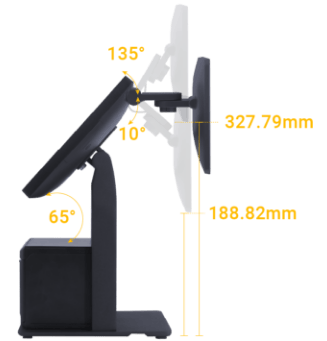

Versatile Display Adjustment for Improved Usability
Triple-hinge 10.1” 2nd display for greater environment compatibility.
Tilt, swivel, and height flexibility for optimal viewing.

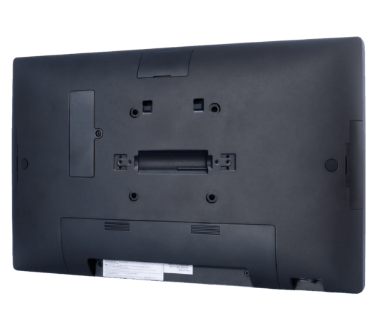

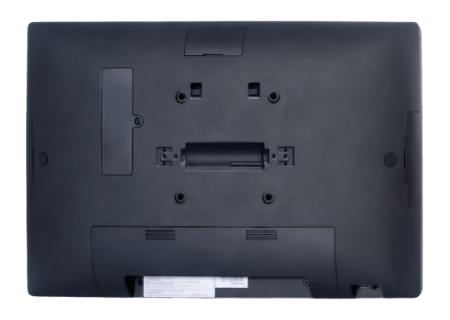

VESA
75x75 & 100x100
for Pole or Wall mount solutions
for Pole or Wall mount solutions
ensures easy deployment across diverse industrial and commercial environments while maintaining a clean, secure, and space-efficient setup.

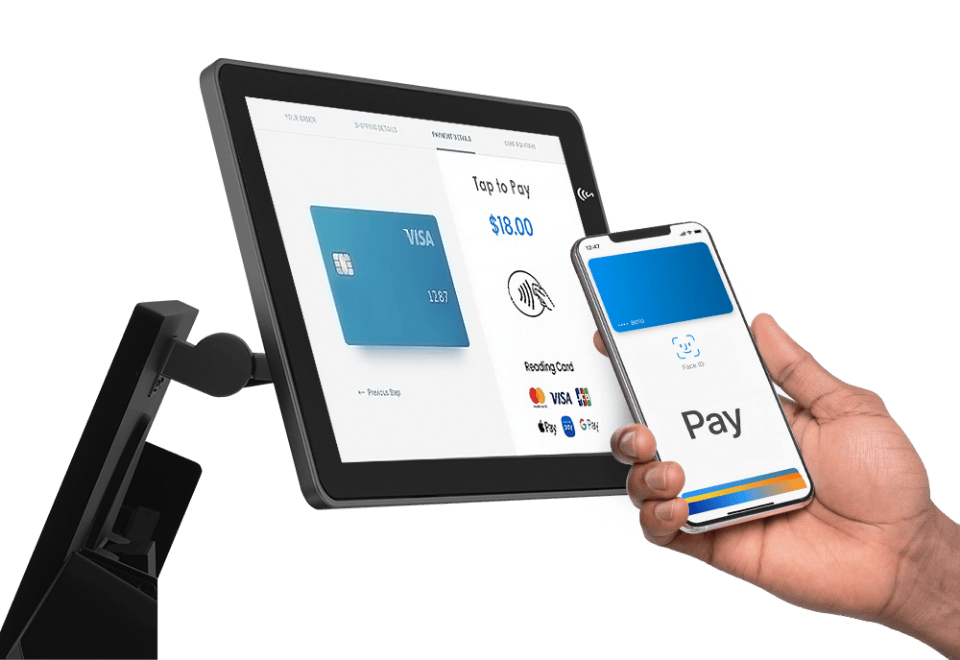

SoftPOS Payment Support
Empowering Transactions with Smart 2nd Display
- 10.1” 2nd display for interactive payment.
- Supports Windows-compatible SoftPOS with NFC payment.
- Simplifies checkout and enhances experience.
Full Range of Peripherals for Tailored Deployments
Customer Displays
Modular 2nd display options for flexible configuration.Plus a range of Full Size Customer Displays.

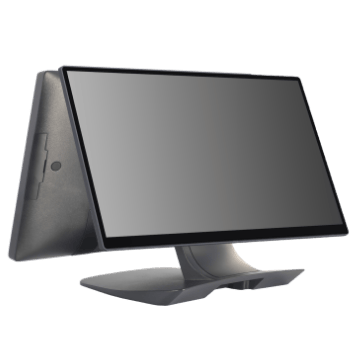

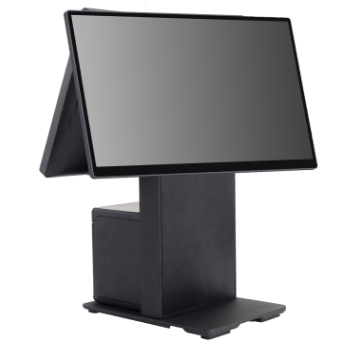

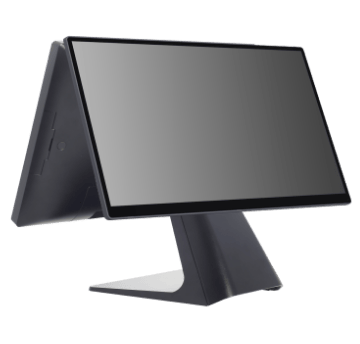

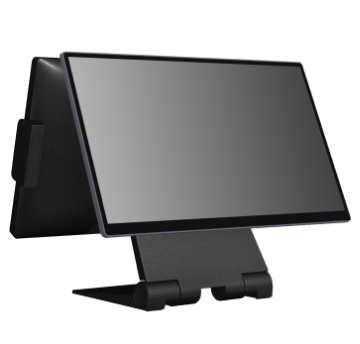

15.6″ 16:9 customer screen

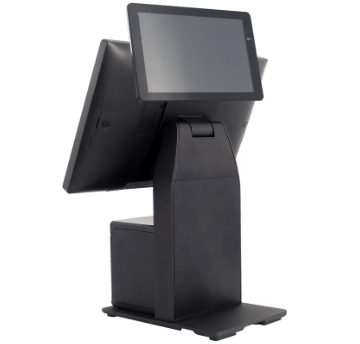

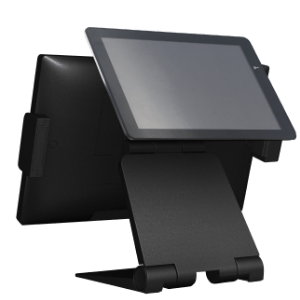

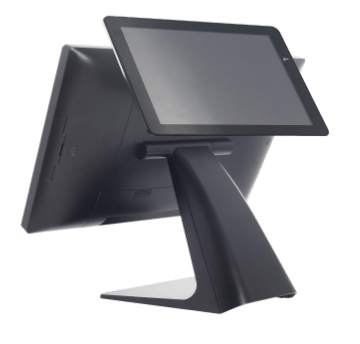

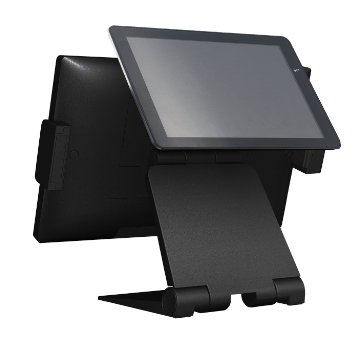

10.1“ 16:10 customer screen

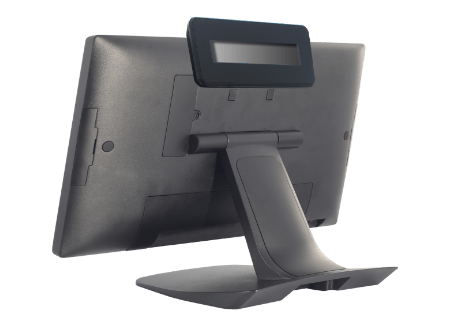

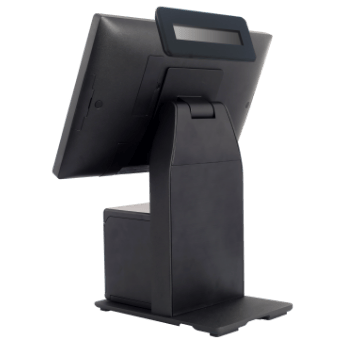

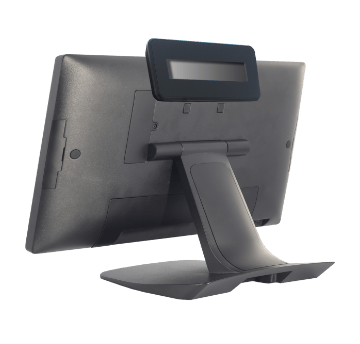

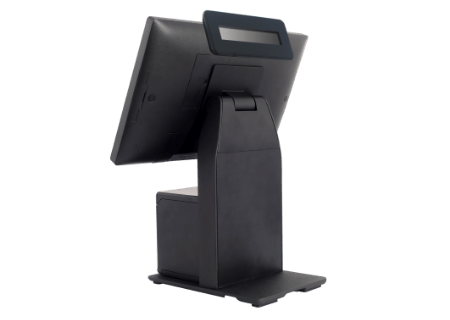

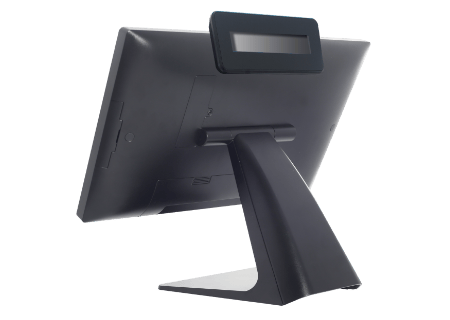

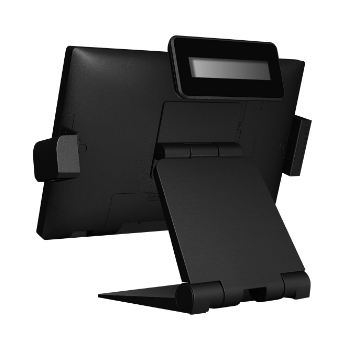

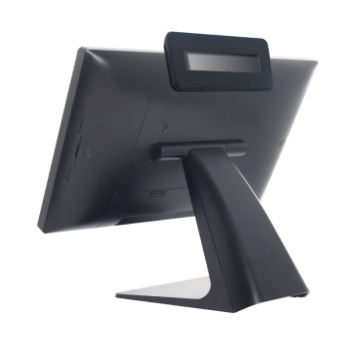

2×20 Character LCM
15.6″ 16:9 customer screen
10.1“ 16:10 customer screen
2×20 Character LCM
15.6″ 16:9 customer screen
10.1“ 16:10 customer screen
2×20 Character LCM
15.6″ 16:9 customer screen
10.1“ 16:10 customer screen
2×20 Character LCM
Comprehensive dual-side mounting support of peripherals
MSR / Fingerprint / iButton / RFID / 2D scanner
MSR
Fingerprint
iButton
RFID
2D scanner

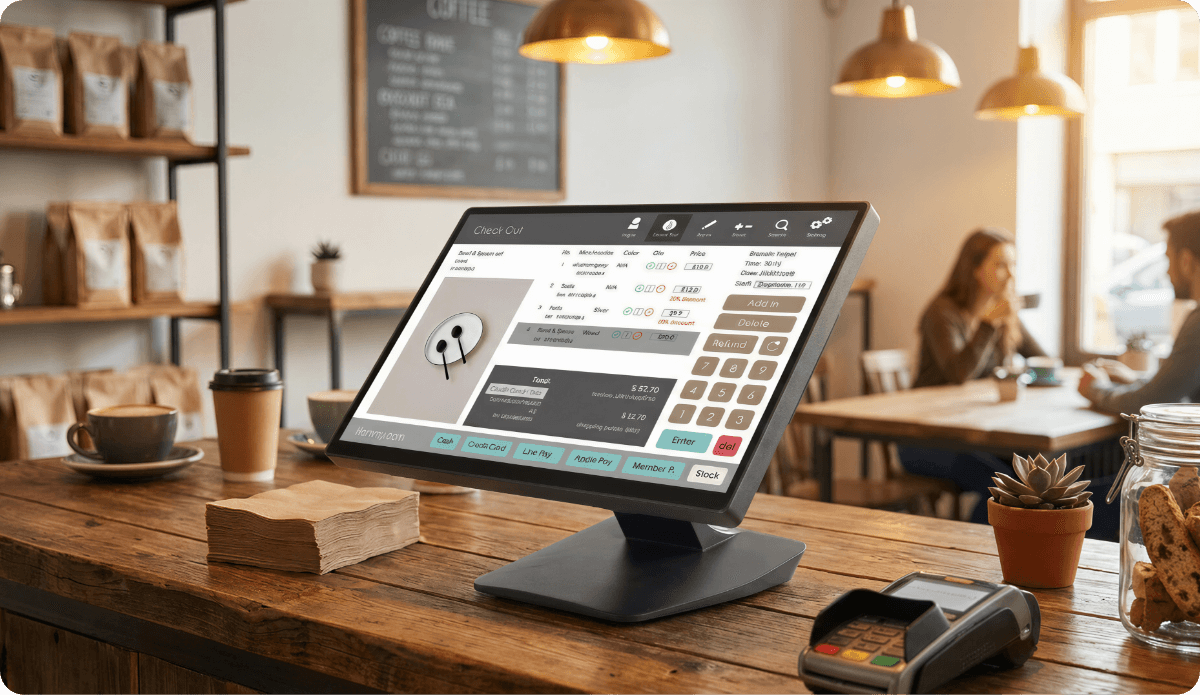

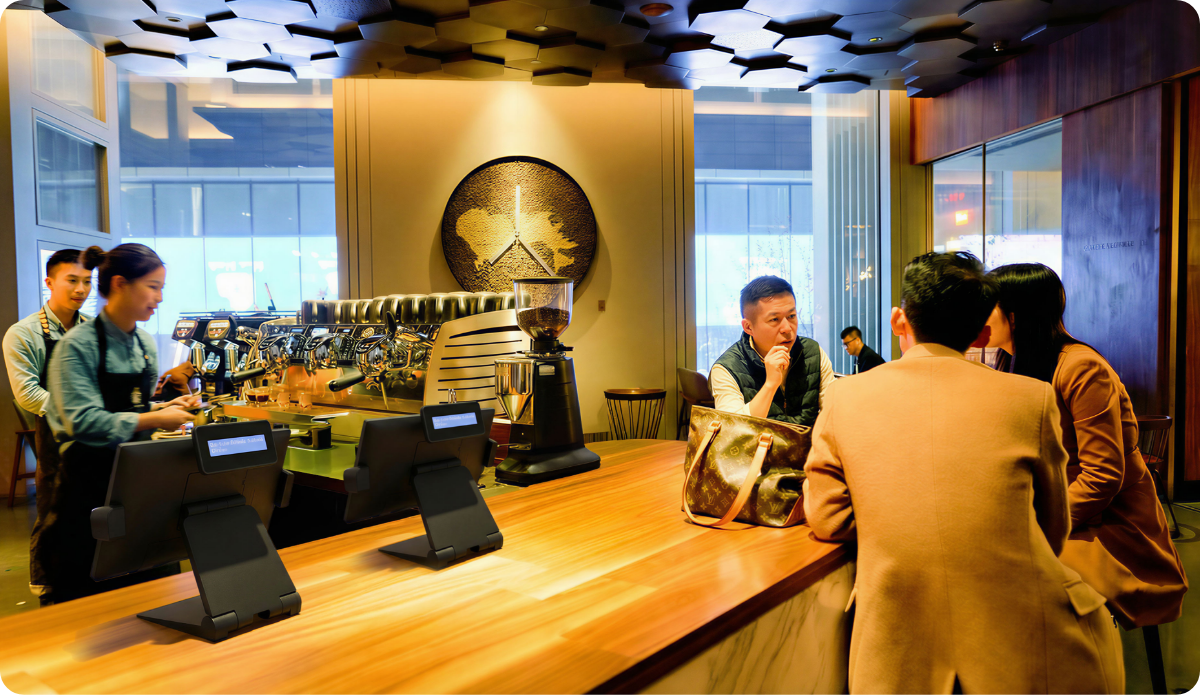

Application scenarios
Optimized for Modern Retail
Photo Gallery
Specification
PT58A
PT58B
PT58C
PT58D
PT58A
| System Information | PE24 Intel® Elkhart Lake Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key (for WiFi/BT project based) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports (Support DC+0/5/12V by BIOS setting, default is 0V) – 1 x Type C (DP+PD) – 1 x RJ45 Gigabit Ethernet support 10/100/1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V (default) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Optional Configuration (Project based) | Powered USB ports (2 x DC+12v, 1 x DC+24v) + 1 x 2.5″ SSD or RAID 0/1 (Dual 2.5″ SSD) |
| Audio | 2 x 2W speaker |
| Power Requirement | – Input: 100-240Vac/50-60Hz – Output: DC+19V, 65W AC to DC Adapter (PE24) – Output: DC+19V, 90W AC to DC Adapter (PE26) (w/PUSB will use 180W adaptor) |
| Peripheral | – 3-Track MSR (AES/TDES Encryption/iButton reader/RFID reader/Fingerprint reader/Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface (Rear Panel Mounted) – 10.1″ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC (Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa), USB interface (Rear Panel Mounted) – 15.6″ 16:9 1920 x 1080 2nd screen (Landscape or Portrait mode) for PE26 (Base Bracket Mounted) – 21.5″ 16:9 @ 1920 x 1080 2nd screen for PE26 (Base Bracket Mounted) – Payment holder for Verifone VX820, MX915, PAX A80 (Base Bracket Mounted) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan: Fanless operation – Weight (NW/GW): 7.5 Kgs/9.5 Kgs – Dimension (WxHxD): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature: 0°C-40°C, 10%-90% Relative Humidity, Non-condensing – Storage Temperature: -20°C-60°C, 10%-90% Relative Humidity, Non-condensing |
| Certification | CE/FCC/LVD |
| OS Support | Windows 10/11 (64 bit), Linux (Ubuntu 22.04) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
PT58B
| System Information | PE24 Intel® Elkhart La ke Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key ( for WiFi / BT project based ) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports ( Support DC+0 / 5 / 12V by BIOS setting, default is 0V ) – 1 x Type C ( DP+PD ) – 1 x RJ45 Gigabit Ethernet support 10 / 100 / 1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V ( default ) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Audio | Powered USB ports ( 2 x DC+12v, 1 x DC+24v ) + 1 x 2.5” SSD or RAID 0/1 ( Dual 2.5” SSD ) |
| Optional Configuration (Project based) | 2 x 2W speaker |
| Power Requirement | – Input : 100 ~ 240Vac / 50 ~ 60Hz – Output : DC+19V, 65W AC to DC Adapter ( PE24 ) – Output : DC+19V, 90W AC to DC Adapter ( PE26 ) ( w/PUSB will use 180W adaptor ) |
| Power Requirement | – 3-Track MSR ( AES / TDES Encryption / iButton reader / RFID reader / Fingerprint reader / Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface ( Rear Panel Mounted ) – 10.1“ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC ( Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa ), USB interface ( Rear Panel Mounted ) – 15.6” 16:9 1920 x 1080 2nd screen ( Landscape or Portrait mode ) for PE26 ( Base Bracket Mounted ) – 21.5” 16:9 @ 1920 x 1080 2nd screen for PE26 ( Base Bracket Mounted ) – Payment holder for Verifone VX820, MX915, PAX A80 ( Base Bracket Mounted ) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan : Fanless operation – Weight ( NW / GW ) : 7.5 Kgs / 9.5 Kgs – Dimension ( WxHxD ): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature : 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature : -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| Certification | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
PT58C
| System Information | PE24 Intel® Elkhart La ke Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key ( for WiFi / BT project based ) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports ( Support DC+0 / 5 / 12V by BIOS setting, default is 0V ) – 1 x Type C ( DP+PD ) – 1 x RJ45 Gigabit Ethernet support 10 / 100 / 1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V ( default ) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Audio | Powered USB ports ( 2 x DC+12v, 1 x DC+24v ) + 1 x 2.5” SSD or RAID 0/1 ( Dual 2.5” SSD ) |
| Optional Configuration (Project based) | 2 x 2W speaker |
| Power Requirement | – Input : 100 ~ 240Vac / 50 ~ 60Hz – Output : DC+19V, 65W AC to DC Adapter ( PE24 ) – Output : DC+19V, 90W AC to DC Adapter ( PE26 ) ( w/PUSB will use 180W adaptor ) |
| Power Requirement | – 3-Track MSR ( AES / TDES Encryption / iButton reader / RFID reader / Fingerprint reader / Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface ( Rear Panel Mounted ) – 10.1“ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC ( Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa ), USB interface ( Rear Panel Mounted ) – 15.6” 16:9 1920 x 1080 2nd screen ( Landscape or Portrait mode ) for PE26 ( Base Bracket Mounted ) – 21.5” 16:9 @ 1920 x 1080 2nd screen for PE26 ( Base Bracket Mounted ) – Payment holder for Verifone VX820, MX915, PAX A80 ( Base Bracket Mounted ) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan : Fanless operation – Weight ( NW / GW ) : 7.5 Kgs / 9.5 Kgs – Dimension ( WxHxD ): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature : 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature : -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| Certification | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
PT58D
| System Information | PE24 Intel® Elkhart La ke Celeron PE26 System Memory Intel® AMT TPM |
|---|---|
| Display & Touch | – 21.5″ 16:9 FHD Display, resolution 1920 x 1080 – 250 nits, LED backlight – 10-point PCAP multi-touch screen |
| Storage | PE24 1 x M.2 PCIe SSD PE26 |
| Expansion | 1 x M.2 E Key ( for WiFi / BT project based ) |
| Connectivity | – 3 x USB 2.0, 3 x USB 3.1 – 2 x RJ-48 COM Ports ( Support DC+0 / 5 / 12V by BIOS setting, default is 0V ) – 1 x Type C ( DP+PD ) – 1 x RJ45 Gigabit Ethernet support 10 / 100 / 1000M, WOL, PXE – 1 x RJ11 support DC+12V or 24V ( default ) port, by jumper setting, support 2 cash drawers – 1 x 4-pin DIN with lock for DC-IN |
| Audio | Powered USB ports ( 2 x DC+12v, 1 x DC+24v ) + 1 x 2.5” SSD or RAID 0/1 ( Dual 2.5” SSD ) |
| Optional Configuration (Project based) | 2 x 2W speaker |
| Power Requirement | – Input : 100 ~ 240Vac / 50 ~ 60Hz – Output : DC+19V, 65W AC to DC Adapter ( PE24 ) – Output : DC+19V, 90W AC to DC Adapter ( PE26 ) ( w/PUSB will use 180W adaptor ) |
| Power Requirement | – 3-Track MSR ( AES / TDES Encryption / iButton reader / RFID reader / Fingerprint reader / Barcode Scanner, USB interface – 2 x 20 character LCM, USB interface ( Rear Panel Mounted ) – 10.1“ 16:10 @ 1280 x 800 2nd screen, with or without touch, NFC ( Support NFC 13.56 MHz, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa ), USB interface ( Rear Panel Mounted ) – 15.6” 16:9 1920 x 1080 2nd screen ( Landscape or Portrait mode ) for PE26 ( Base Bracket Mounted ) – 21.5” 16:9 @ 1920 x 1080 2nd screen for PE26 ( Base Bracket Mounted ) – Payment holder for Verifone VX820, MX915, PAX A80 ( Base Bracket Mounted ) |
| Mechanical & Construction | – Construction: Die-cast aluminum housing with plastic covers. – Default color: Platinum Silver – System fan : Fanless operation – Weight ( NW / GW ) : 7.5 Kgs / 9.5 Kgs – Dimension ( WxHxD ): 493.92 x 371.29 x 224.47mm |
| Environmental | – Operating temperature : 0°C ~ 40°C, 10% ~ 90% Relative Humidity, Non-condensing – Storage Temperature : -20°C ~ 60°C, 10% ~ 90% Relative Humidity, Non-condensing |
| Certification | CE / FCC / LVD |
| Certification | Windows 10 / 11 ( 64 bit ), Linux ( Ubuntu 22.04 ) |
Note: The need for point of sale terminal that perform at its best is crucial for productivity, usability, accuracy and delivering the best user experience.
